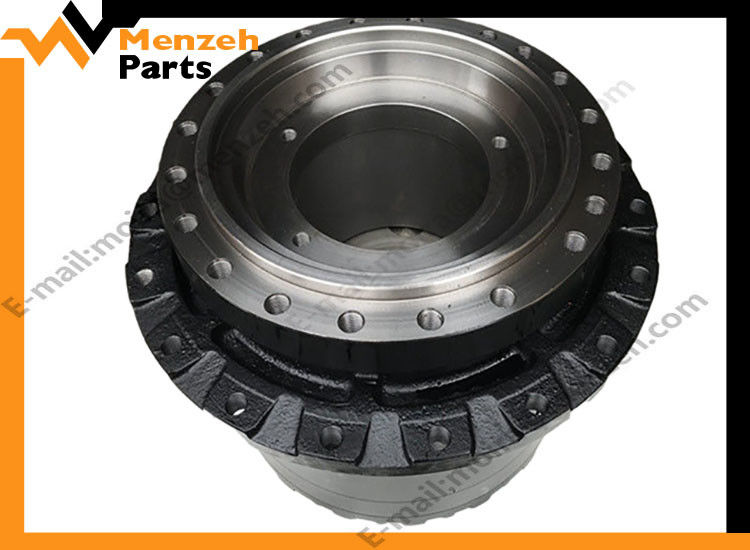

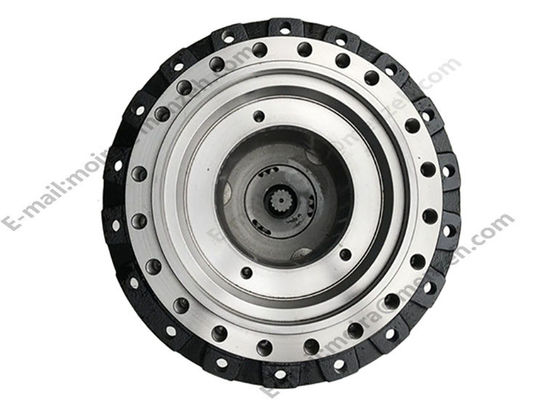

2676796 Excavator Travel Gearbox

2676796 Excavator Travel Gearbox

  • 2676796 Excavator Travel Gearbox
  • 2676796 Excavator Travel Gearbox
2676796 Excavator Travel Gearbox
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 2676796 2676877 2813588 3678288 E320D E323D E325C E325D E329DL
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Gearbox Part Number: 2676796 2676877 2813588 3678288
Used For: E320D E323D E325C E325D E329DL Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
After Warranty Service: Video Technical Support Online Support Free Spare Parts
Highlight:

2676796 Excavator Travel Gearbox

,

2676877 Excavator Travel Gearbox

,

E320D 2813588

2676796 2676877 2813588 3678288 Excavator E320D E323D E325C E325D E329DL Final Drive Reduction Travel Gearbox





Pos. Part No Qty Parts name Comments
1 3E-2338 [2] PLUG-PIPE
2 267-6863 BJ [1] SHIM (0.75-MM THK)
  7Y-0752 BJ [1] SHIM (0.8-MM THK)
  267-6864 BJ [1] SHIM (0.85-MM THK)
  267-6865 BJ [1] SHIM (0.9-MM THK)
  267-6866 BJ [1] SHIM (0.95-MM THK)
  7Y-0753 BJ [1] SHIM (1-MM THK)
  267-6867 BJ [1] SHIM (1.2-MM THK)
  267-6868 BJ [1] SHIM (1.4-MM THK)
  7Y-0754 BJ [1] SHIM (1.6-MM THK)
  267-6869 BJ [1] SHIM (1.8-MM THK)
  267-6870 BJ [1] SHIM (2-MM THK)
  267-6871 BJ [1] SHIM (2.3-MM THK)
5 094-0578 B [1] PLATE (8-MM THK)
  094-0579 B [1] PLATE (9-MM THK)
  094-0580 B [1] PLATE (10-MM THK)
8 094-1528 [12] WASHER (53X84X1-MM THK)
9 114-1540 J [4] PIN-DOWEL
10 168-8452 J [2] BALL BEARING
11 169-5589 [1] GEAR-SUN (24-TEETH)
12 169-5590 [1] GEAR-SUN (24-TEETH)
13 169-5592 [3] GEAR-PLANETARY (23-TEETH)
14 169-5593 [3] GEAR-PLANETARY (23-TEETH)
15 169-5601 [3] SHAFT-PLANETARY
16 169-5602 [3] SHAFT-PLANETARY
17 171-9387 [1] GEAR-RING (64-TEETH)
18 191-2569 [3] BEARING AS (CAGED ROLLER)
19 191-2570 [6] BEARING AS (CAGED ROLLER)
20 191-2571 [1] CARRIER-PLANETARY
21 191-2676 [1] GEAR-RING (72-TEETH)
22 191-2683 [1] GEAR-SUN (20-TEETH)
23 191-2684 [3] GEAR-PLANETARY (21-TEETH)
24 191-2685 [3] BEARING AS
25 191-2686 [1] CARRIER AS
  191-2687 [3] RACE-BEARING
26 191-2689 [3] WASHER (34X70X1-MM THK)
27 191-2690 [3] WASHER (42.3X70X1-MM THK)
28 199-4503 [1] COVER
29 207-1571 J [1] SEAL GP-DUO-CONE
  214-3570 [2] RING-TORIC
30 267-6797 J [1] HOUSING-MOTOR
31 267-6798 J [1] HOUSING
32 267-6799 [1] CARRIER-PLANETARY
33 267-6800 J [1] GEAR-COUPLING
43 093-1731 [2] RING-RETAINING
44 095-0891 [6] PIN-SPRING
45 096-0433 [3] RING-RETAINING
46 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
47 171-9298 [1] SEAL-O-RING
48 179-8733 M [16] BOLT (M20X2.5X170-MM)
49 7M-8485 [2] SEAL-O-RING
50 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51 7Y-5217 JM [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52 8T-3282 J [16] WASHER-HARD (22X35X3.5-MM THK)
53 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
54 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
55 1U-8846 B   SEALANT-GASKET

      AVAILABLE REPAIR KIT(S):
  267-6818 J [1] KIT-FINAL DRIVE BEARING
  B   USE AS REQUIRED
  J   KIT MARKED J SERVICES PART(S) MARKED J
  M   METRIC PART



2676796 Excavator Travel Gearbox 02676796 Excavator Travel Gearbox 12676796 Excavator Travel Gearbox 2






FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
