Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | 353-0608 2966146 2966303 2966145 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden Case |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Final Drive Assy | Part Number: | 353-0608 2966146 2966303 2966145 |
|---|---|---|---|
| Used For: | E374DL E374FL | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR Shipping |
| Port: | Huangpu Guangzhou | After Warranty: | Video Technical Support Online Support Spare Parts |
| High Light: | 353-0608 Final Drive Assy,2966146 Final Drive Assy,E374DL 2966303 |
||

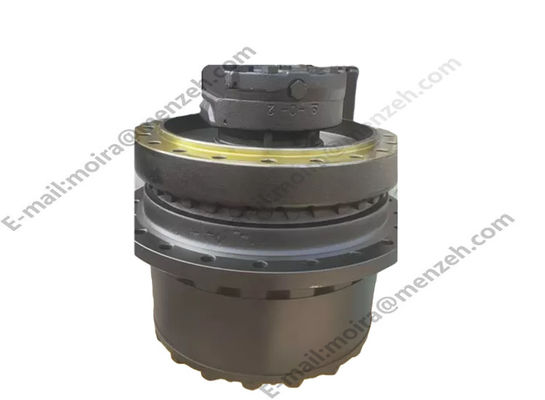

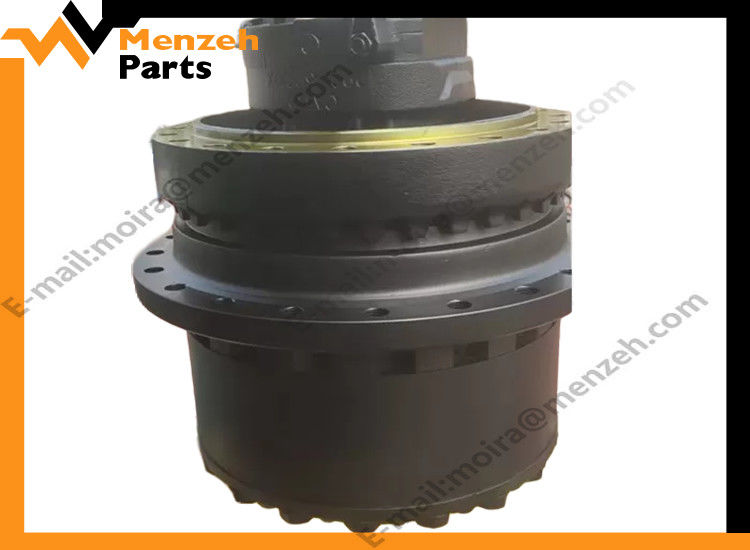

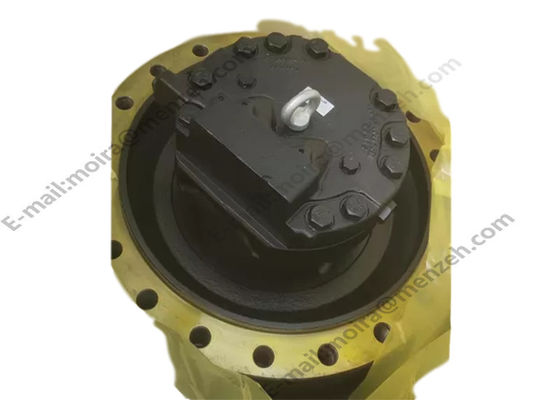

353-0608 2966146 2966303 2966145 E374DL E374FL Excavator Final Drive Assy Excavator Travel Motor
| Part Name | Final Drive Assy |
| Part Number | 353-0608 2966146 2966303 2966145 |
| Used For | E374DL E374FL |
| Warrenty | 3 Months |
| After Warranty | Video technical support Online support Free Spare parts |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 353-0616 | [1] | HOUSING-MOTOR | |
| 2 | 214-7880 | [1] | SEAL GP-DUO-CONE | |
| 214-7879 | [2] | RING-TORIC | ||
| 3 | 163-1657 | [2] | CUP-SPECIAL TAPERED | |
| 4 | 163-1656 | [2] | CONE-SPECIAL TAPERED | |
| 5 | 8C-3411 M | [10] | BOLT (M30X3.5X90-MM) | |
| 6 | 136-2926 | [4] | GEAR-PLANETARY (22-TEETH) | |
| 7 | 136-2923 | [1] | GEAR-SUN (20-TEETH) | |
| 8 | 7Y-1469 | [1] | COUPLING | |
| 9 | 136-2944 | [2] | SPACER (61X95.1X10-MM THK) | |
| 10 | 136-2948 | [6] | PIN-DOWEL | |
| 11 | 199-4728 | [1] | HOUSING (SPROCKET) | |
| 12 | 136-2959 BJ | [1] | SHIM (0.3-MM THK) | |
| 136-2962 BJ | [1] | SHIM (0.6-MM THK) | ||
| 136-2963 BJ | [1] | SHIM (0.7-MM THK) | ||
| 136-2964 BJ | [1] | SHIM (0.8-MM THK) | ||
| 136-2965 BJ | [1] | SHIM (1-MM THK) | ||
| 136-2966 BJ | [1] | SHIM (1.6-MM THK) | ||
| 17 | 136-2949 | [1] | GEAR-COUPLING (83-TEETH) | |
| 18 | 136-2967 | [1] | SEAL-O-RING | |
| 19 | 136-2947 | [1] | CARRIER-PLANETARY | |
| 20 | 136-2945 | [1] | SPACER (203X233X8.5-MM THK) | |
| 21 | 7Y-0667 | [1] | RING-RETAINING | |
| 22 | 136-2930 | [1] | CARRIER-PLANETARY | |
| 23 | 136-2922 | [1] | GEAR-SUN (19-TEETH) | |
| 24 | 136-2927 | [1] | GEAR-RING (86-TEETH) | |
| 25 | 7M-8485 | [2] | SEAL-O-RING | |
| 26 | 3E-2338 | [2] | PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL) | |
| 27 | 136-2934 | [1] | CARRIER AS | |
| 27A. | 136-2931 | [3] | SHAFT-PLANETARY | |
| 28 | 136-2943 | [1] | RING-RETAINING | |
| 29 | 136-2921 | [1] | GEAR-SUN (22-TEETH) | |
| 30 | 7Y-1493 | [1] | SPACER (8.7X50X14-MM THK) | |
| 31 | 7Y-0808 B | [1] | SHIM (1.6-MM THK) | |
| 32 | 136-2946 | [3] | BEARING-CAGED | |
| 33 | 8T-4240 | [3] | RING-RETAINING | |
| 34 | 094-0584 | [6] | WASHER (40.3X72X1-MM THK) | |
| 35 | 136-2924 | [3] | GEAR-PLANETARY (31-TEETH) | |
| 36 | 8T-3957 M | [12] | BOLT-SOCKET HEAD (M12X1.75X30-MM) | |
| 37 | 136-2920 | [1] | COVER | |
| 38 | 136-2932 | [3] | SHAFT-PLANETARY | |
| 39 | 453-4193 M | [18] | BOLT (M30X3.5X260-MM) | |
| 40 | 451-2178 | [18] | WASHER-HARD (33X56X6-MM THK) | |
| 41 | 136-2925 | [3] | GEAR-PLANETARY (23-TEETH) | |
| 42 | 1U-8846 B | SEALANT-GASKET | ||
| 43 | 136-2928 | [1] | GEAR-RING (68-TEETH) | |
| 44 | 7Y-0912 | [11] | BEARING AS-ROLLER | |
| 45 | 4I-7576 | [14] | WASHER (66.3X104X3-MM THK) | |
| 46 | 099-5194 | [7] | PIN-SPRING | |
| 47 | 136-2933 | [4] | SHAFT-PLANETARY | |
| 48 | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 136-2957 J | [1] | KIT-SHIM (FINAL DRIVE) | ||
| B | USE AS REQUIRED | |||
| J | KIT MARKED J INCLUDES PART(S) MARKED J | |||
| M |
METRIC PART
|
|||
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
