Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | VOE14566401 VOE14622770 VOE14599921 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden Case |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Swing Gearbox | Part Number: | VOE14566401 VOE14622770 VOE14599921 |
|---|---|---|---|
| Used For: | EC290C EC330 EC340D EC350D EC360 EC380 | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR |
| Port: | Huang Pu | After Warranty Service: | Online Support Spare Parts |
| High Light: | VOE14566401 Final Drive Gearbox,VOE14622770 Final Drive Gearbox,EC290C VOE14599921 |
||

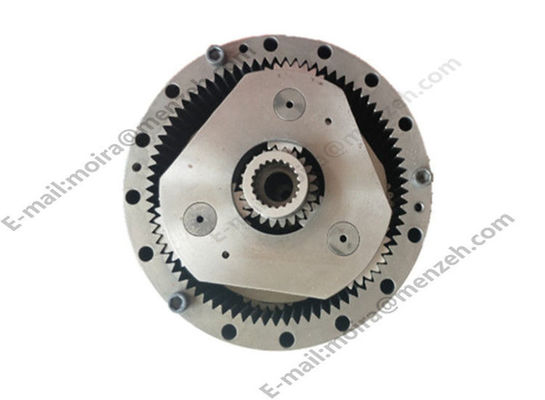

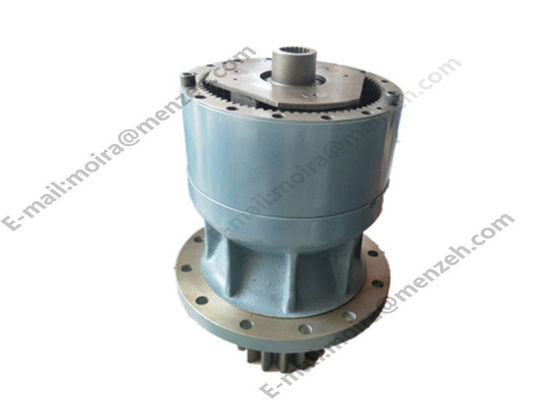

VOE14566401 VOE14622770 VOE14599921 Hydraulic Motor Reduction EC290C EC330 EC340D EC350D EC360 EC380 Swing Reducer
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14566401 | [1] | Transfer gearbox | ||
| 1 | VOE14566402 | [1] | Housing | |
| 2 | VOE14566409 | [1] | Gear | |
| 3 | SA7117-38230 | [2] | Bearing | |
| 4 | VOE14566404 | [1] | Shim | |
| 5 | VOE14566403 | [1] | Retainer | |
| 6 | VOE14566410 | [1] | Planet carrier | |
| 7 | VOE14566411 | [1] | Planet carrier | |
| 8 | VOE14566415 | [4] | Pin | |
| 9 | VOE14566413 | [4] | Planetary gear | |
| 10 | VOE14566414 | [8] | Washer | |
| 11 | SA9325-06012 | [4] | Spring pin | |
| 12 | SA8230-21020 | [1] | Thrust ring | |
| 13 | VOE14566412 | [4] | Needle bearing | |
| 14 | VOE984088 | [20] | Hex. socket screw | |
| 15 | VOE14566416 | [1] | Gear | |
| 16 | VOE14566418 | [1] | Planet carrier | |
| 17 | VOE14566423 | [3] | Pin | |
| 18 | VOE14566419 | [1] | Planet carrier | |
| 19 | VOE14566421 | [3] | Planetary gear | |
| 20 | VOE14566422 | [6] | Washer | |
| 21 | SA9325-06012 | [3] | Spring pin | |
| 22 | VOE14566420 | [3] | Needle bearing | |
| 23 | VOE14566433 | [1] | Thrust washer | |
| 24 | VOE14566424 | [1] | Gear | |
| 25 | VOE14566425 | [1] | Planet carrier | |
| 26 | VOE14566426 | [1] | Planet carrier | |
| 27 | VOE14566428 | [3] | Planetary gear | |
| 28 | VOE14566429 | [6] | Washer | |
| 29 | VOE14566430 | [3] | Pin | |
| 30 | SA9325-06012 | [3] | Spring pin | |
| 31 | VOE14566427 | [3] | Needle bearing | |
| 32 | VOE14569232 | [1] | Ring | |
| 33 | VOE14566417 | [1] | Ring | |
| 34 | VOE14566431 | [1] | Gear | |
| 35 | VOE914467 | [1] | Retaining ring | |
| 36 | VOE14566432 | [1] | Cover | |
| 37 | VOE60110006 | [18] | Hexagon screw | |
| 38 | SA9213-20000 | [18] | Spring washer | |
| 39 | VOE14883847 | [2] | Plug | |
| 40 | VOE990557 | [2] | O-ring | |
| 41 | VOE950677 | [4] | Pin | |
| 42 | VOE14667679 | [1] | Seal |
![]()
![]()
![]()
![]()
![]()
Contact Person: Miss. Moira
Tel: 86-15811713569
