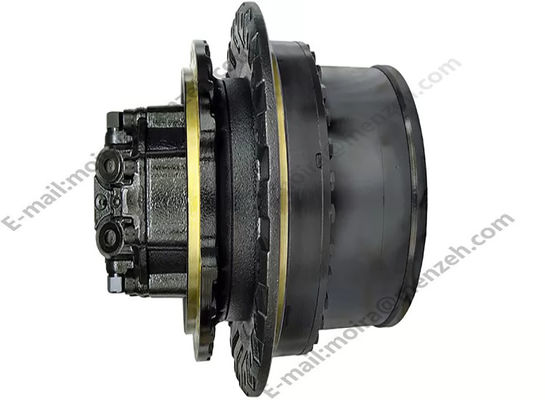

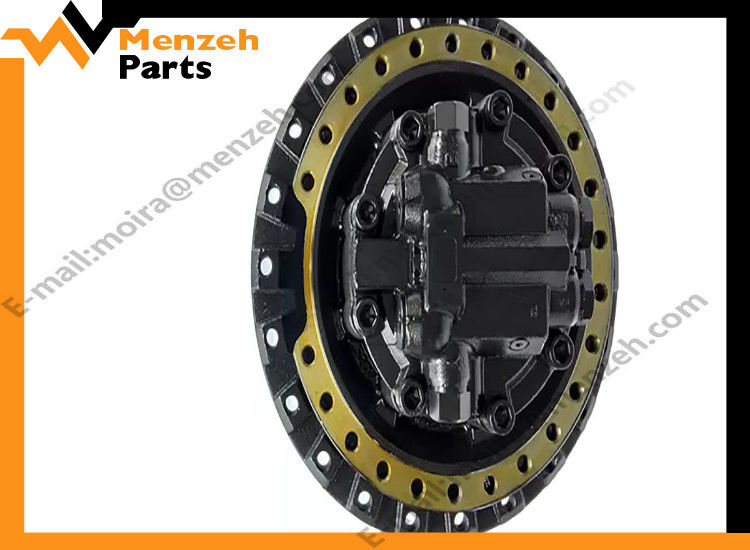

9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G

9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G

  • 9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G
  • 9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G
9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 9255880 9256990 9255876 9316150 ZX270-3 ZX250L-5G
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Motor Assy Part Number: 9255880 9256990 9255876 9316150
Used For: ZX270-3 ZX250L-5G Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

9255880 Final Drive Assy

,

9256990 Final Drive Assy

,

ZX270-3 9255876

9255880 9256990 9255876 9316150 ZX270-3 ZX250L-5G Excavator Travel Device Travel Motor Assy



Part Name Final Drive Assy
Part Number 9255880 9256990 9255876 9316150
Used For ZX270-3 ZX250L-5G
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  9255880 [1] TRAVEL DEVICE I 9256990 (for assembly of machine)
  9256990 [1] TRAVEL DEVICE (for transportation)
0 9255876 [1] MOTOR;OIL I 9251292 (for assembly of machine)
0 9251292 [1] MOTOR;OIL (for transportation)
1 4664392 [1] SEAL;GROUP
2 1033048 [1] DRUM
4 4629674 [2] BRG.;ROL.
7 A590920 [24] WASHER;SPRING
8 J932060 [24] BOLT
9 1033227 [1] SPROCKET
10 3094717 [1] NUT
11 4470326 [1] PLATE;LOCK
12 J901225 [2] BOLT
13 4371402 [6] BRG.;NEEDLE
14 1022198 [1] CARRIER
15 4401293 [3] SPACER
16 3075003 [3] GEAR;PLANETARY
18 4269470 [6] PLATE;THRUST
19 4269452 [3] PIN
20 4192021 [3] PIN;SPRING
21 3075005 [1] GEAR;SUN
23 1022195 [1] GEAR;RING
24 J931640 [28] BOLT
25 4443139 [3] BRG.;NEEDLE
26 1022197 [1] CARRIER
27 3075002 [3] GEAR;PLANETARY
29 4284521 [6] PLATE;THRUST
30 4269451 [3] PIN
31 4197763 [3] PIN;SPRING
32 3074989 [1] GEAR;SUN
34 1022196 [1] CARRIER
36 3075001 [3] GEAR;PLANETARY
37 YB00001367 [3] BRG.;NEEDLE
38 4284520 [6] PLATE;THRUST
39 4269472 [3] PIN
40 4192020 [3] PIN;SPRING
41 2048000 [1] SHAFT;PROP.
43 2045031 [1] COVER
44 4277474 [1] PIN;STOPPER
45 4278168 [1] BRG.;BALL
46 930451 [1] RING;RETAINING
48 4245797 [3] PLUG
50 4699148 [16] BOLT;SEMS
51 +++++++ [1] NAME-PLATE
52 M492564 [2] SCREW;DRIVE








9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 0



9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 1

9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 29255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 3









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 49255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 59255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 69255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 79255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 89255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 9

9255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 109255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 119255880 9256990 9255876 9316150 Final Drive Assy Fit ZX270-3 ZX250L-5G 12
