Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | XKAQ-00400 XKAQ-00197 XKDE-00215 XKAQ-00965 39Q7-12180 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden Case |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Carrier Assy No.1 | Part Number: | XKAQ-00400 XKAQ-00197 XKDE-00215 XKAQ-00965 39Q7-12180 |
|---|---|---|---|
| Used For: | R320LC-7 R250LC7 R290LC7 | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR Shipping |
| Port: | Huangpu Guangzhou | After Warranty: | Video Technical Support Online Support Spare Parts |
| High Light: | XKDE-00215 Excavator Final Drive Parts,XKAQ-00965 Excavator Final Drive Parts,R320LC-7 XKAQ-00400 |
||

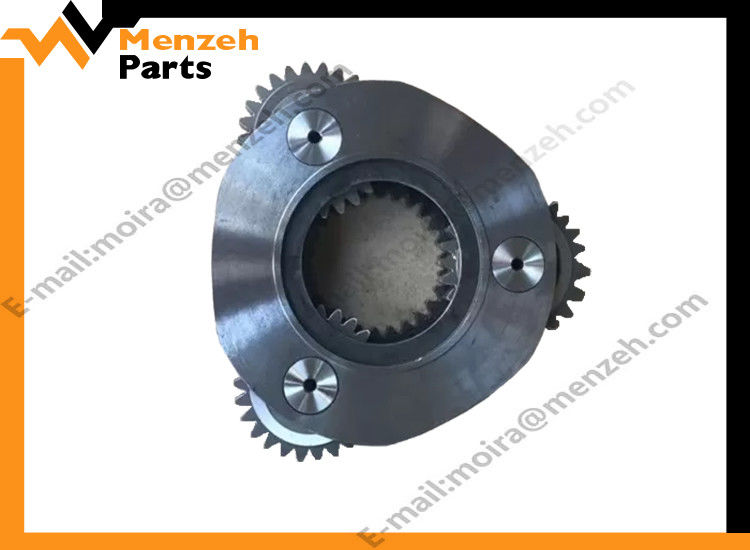

XKAQ-00400 XKAQ-00197 XKDE-00215 XKAQ-00965 39Q7-12180 R320LC-7 R250LC7 R290LC7 Carrier Assy No.1 Excavator Final Drive
| Part Name | Carrier Assy No.1 |
| Part Number | XKAQ-00400 XKAQ-00197 XKDE-00215 XKAQ-00965 39Q7-12180 |
| Used For | R320LC-7 R250LC7 R290LC7 |
| Warrenty | 3 Months |
| After Warranty | Video technical support Online support Free Spare parts |
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40072 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40073 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40074 | [1] | T/REDUCTION GEAR | |
| 2 | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 2 | XKAQ-00803 | [1] | SEAL-FLOATING | |
| 3 | XKAQ-00174 | [1] | HOUSING | |
| 3 | XKAQ-00802 | [1] | HOUSING | |
| 4 | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4 | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5 | XKAQ-00176 | [1] | SHIM | STD |
| 5 | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5 | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5 | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5 | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6 | XKAQ-00177 | [1] | RETAINER | |
| 7 | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8 | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8 | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8 | XKAQ-00965 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-1. | XKAQ-00966 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-6. | XKAQ-00967 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 8-9. | XKAQ-00651 | [4] | PIN 3-SPRING | |
| 8-9. | XKAQ-00968 | [4] | PIN 3-SPRING | |
| 9 | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9 | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9 | XKAQ-00969 | [1] | NO2 CARRIER ASS'Y | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-1. | XKAQ-00970 | [1] | NO2 CARRIER | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-6. | XKAQ-00971 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 9-9. | XKAQ-00650 | [6] | PIN 2-SRPING | |
| 10 | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 | |
| 10 | XKAQ-00400 | [1] | CARRIER 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | CARRIER 1 | |
| 10-2. | XKAQ-00199 | [3] | GEAR 1-PLANETARY | |
| 10-3. | XKAQ-00200 | [3] | BEARING-NEEDLE | |
| 10-4. | XKAQ-00201 | [6] | WASHER-THRUST NO.1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11 | XKAQ-00203 | [1] | GEAR 1-SUN | |
| 12 | XKAQ-00204 | [3] | PLUG | |
| 13 | XKAQ-00205 | [4] | PIN-LOCK | |
| 14 | XKAQ-00206 | [1] | GEAR-RING | |
| 14 | XKAQ-00762 | [1] | GEAR-RING | |
| 15 | XKAQ-00207 | [24] | BOLT-WRENCH | |
| 16 | XKAQ-00208 | [1] | RING-THRUST | |
| 17 | XKAQ-00209 | [1] | COVER | |
| 17 | XKAQ-00973 | [1] | COVER | |
| 18 | XKAQ-00210 | [AR] | RING 2-THRUST | |
| 19 | XKAQ-00211 | [16] | BOLT-WRENCH | |
| 20 | XKAQ-00212 | [1] | MOTOR-RING | |
| 21 | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22 | XKAQ-00214 | [1] | PAD | |
| 23 | XKAQ-00215 | [1] | COUPLING | |
| 24 | XKAQ-00216 | [1] | NAME PLATE | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
