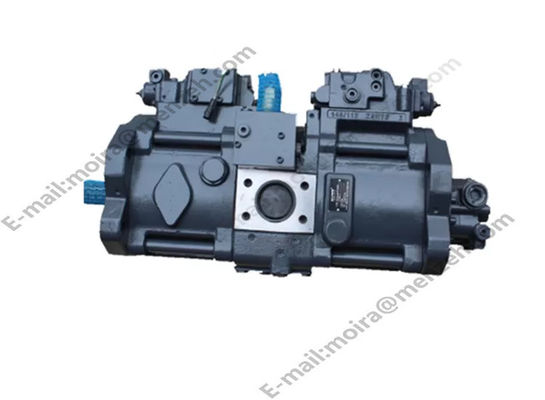

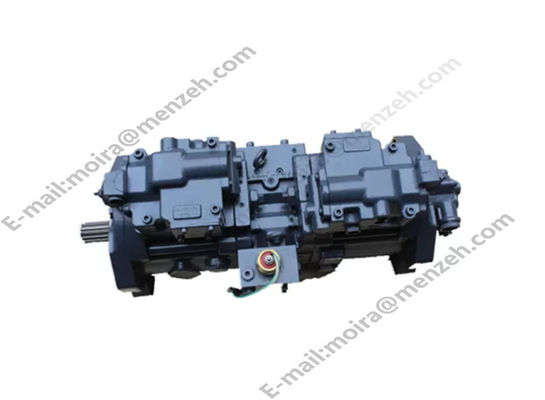

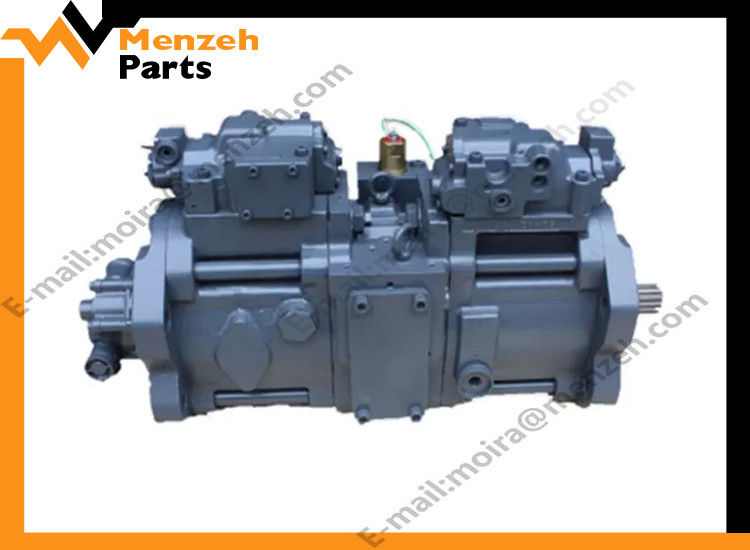

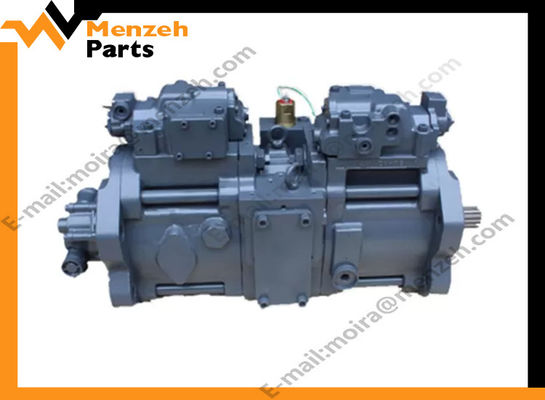

400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8

400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8

  • 400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8
  • 400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8
  • 400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8
400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 400914-00212 K3V112DTP109R-YT2K-V
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Hydraulic Main Pump Part Number: 400914-00212 K3V112DTP109R-YT2K-V
Used For: SK200-6 SK200-6E SK200-8 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

400914-00212 Hydraulic Pump Assy

,

K3V112DTP109R-YT2K-V Hydraulic Pump Assy

,

SK200-6 400914-00212

400914-00212 SK200-6 SK200-6E SK200-8 K3V112DTP109R-YT2K-V Kobelco Excavator Hydraulic Pump



Part Name Hydraulic Main Pump
Part Number 400914-00212 K3V112DTP109R-YT2K-V 3
Used For SK200-6 SK200-6E SK200-8
Warrenty 3 Months
After Warranty

Video technical support Online support Free Spare parts





Pos. Part No Qty Parts name Comments
*. 31N8-10010 [1] MAIN PUMP TIER-II
*. 31N8-10050 [1] MAIN PUMP
*-1. K3V140DT-1CER [1] MAIN PUMP UNIT
*-1. K3V140DT-1CER-B [1] MAIN PUMP UNIT
111 XJBN-00015 [1] SHAFT-DRIVE(F)
113 XJBN-00153 [1] SHAFT-DRIVE(R)
114 XJBN-00367 [1] COUPLING-SPLINE
123 XJBN-00017 [2] BEARING-ROLLER
124 XJBN-00018 [2] BEARING-NEEDLE
127 XJBN-00019 [3] SPACER-BEARING
S141. XJBN-00007 [2] BLOCK-CYLINDER
NS151. XJBN-00004 [18] PISTON
NS152. XJBN-00748 [18] SHOE
153 XJBN-00020 [2] PLATE-SET
156 XJBN-00021 [2] BUSHING-SPHERICAL
157 XJBN-00022 [18] SPRING-CYLINDER
158 XJBN-00368 [2] SPACER
211 XJBN-00023 [2] PLATE-SHOE
S212. XJBN-00012 [2] PLATE-SWASH
S214. XJBN-00013 [2] BUSHING-TILTING
251 XJBN-00024 [2] SUPPORT
261 XJBN-00025 [1] COVER(FR)-SEAL
271 XJBN-00026 [2] CASING-PUMP
312 XJBN-00027 [1] BLOCK-VALVE
S313. XJBN-00008 [1] PLATE(R)-VALVE
S314. XJBN-00010 [1] PLATE(L)-VALVE
401 XJBN-00028 [8] SCREW
406 XJBN-00355 [4] SCREW-HEX SOC HD
466 XJBN-00356 [2] PLUG
468 XJBN-00357 [4] PLUG
490 XJBN-00032 [29] PLUG
NS531. XJBN-00369 [2] PIN-TILTING
532 XJBN-00033 [2] PISTON-SERVO
534 XJBN-00034 [2] STOPPER(L)
535 XJBN-00035 [2] STOPPER(S)
N541. XJBN-00036 [4] SEAT
N543. XJBN-00037 [2] STOPPER 1
N544. XJBN-00039 [2] STOPPER 2
545 XJBN-00359 [4] BALL-STEEL
NS548. XJBN-00360 [2] PIN-FEED BACK
702 XJBN-00040 [2] O-RING
710 XJBN-00041 [1] O-RING
717 XJBN-00042 [2] O-RING
719 XJBN-00043 [2] O-RING
724 XJBN-00361 [16] O-RING
725 XJBN-00362 [4] O-RING
728 XJBN-00363 [3] O-RING
732 XJBN-00047 [2] O-RING
774 XJBN-00906 [1] SEAL-OIL
789 XJBN-00049 [2] RING-BACK UP
792 XJBN-00050 [2] RING-BACK UP
808 XJBN-00364 [4] NUT
824 XJBN-00052 [2] RING-SNAP
885 XJBN-00053 [2] PIN-2
886 XJBN-00365 [4] PIN-SPRING
901 XJBN-00055 [2] BOLT-EYE
953 XJBN-00056 [2] SCREW-SET
954 XJBN-00057 [2] SCREW-SET
981 XJBN-00156 [1] NAME PLATE
983 XJBN-00341 [2] PIN
*-2. XJBN-00001 [1] REGULATOR SEE 4020
*-3. XJBN-00002 [1] GEAR PUMP SEE 4030
*-3. XJBN-00520 [1] GEAR PUMP SEE 4030
*-3. XJBN-00847 [1] GEAR PUMP SEE 4030
*-4. XJBN-00014 [1] EPPR VALVE ASSY SEE 4010
*-4. XJBN-00382 [1] EPPR VALVE ASSY SEE 4041
11 XJBN-00003 [2] PISTON SUB ASSY SEE ILLUST
13 XJBN-00006 [1] CYLINDER ASSY-RH SEE ILLUST
14 XJBN-00009 [1] CYLINDER ASSY-LH SEE ILLUST
30 XJBN-00011 [2] SWASH PLATE ASSY SEE ILLUST
530 XJBN-00371 [2] TILTING PIN ASSY SEE ILLUST
N. @ [1] NOT INDIVIDUALLY SUPPLIED



400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8 0



400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8 1

400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8 2400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8 3400914-00212 K3V112DTP109R-YT2K-V Hydraulic Pump Assy For SK200-6 SK200-6E SK200-8 4









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
