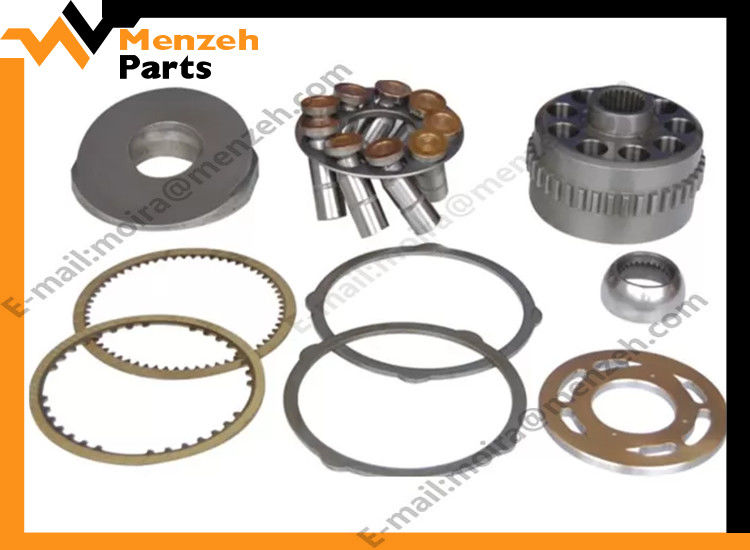

MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts

MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts

  • MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts
MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: MAG170 MAG200 MAG230
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Final Drive Parts Part Number: MAG170 MAG200 MAG230
Used For: MAG170 MAG200 MAG230 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

MAG170 Excavator Travel Motor Parts

,

MAG200 Excavator Travel Motor Parts

,

MAG230 Final Drive Parts

MAG170 MAG200 MAG230 series Excavator Final Drive Parts Travel Motor



Part Name Final Drive Parts
Part Number MAG170 MAG200 MAG230
Used For MAG170 MAG200 MAG230
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts





Pos. Part No Qty Parts name Comments
. . YN15V00037F1 [1] HYDRAULIC MOTOR SM (propelling) Superseded by part number: YN15V00037F2
. . YN15V00037F2R [1] REMAN-HYD MOTOR KOB SK210-9 ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (10/11-), Reman For New P/N YN15V00037F1
. . YN15V00037F2C [1] CORE-MOTOR HYDRAULIC KOB Return Number
. . YN15V00037F2 [1] HYDRAULIC MOTOR KOB Assy (propelling)
1 YN15V00037S001 [1] HUB KOB
3 YN15V00037S003 [1] FLANGE KOB Carrier
4 YN15V00037S004 [1] GEAR KOB Sun
5 YN15V00037S005 [3] GEAR KOB Planetary
6 YN15V00037S006 [3] PIN KOB
7 YN15V00037S007 [1] GEAR KOB Carrier
8 YN15V00037S008 [1] GEAR KOB Sun
9 YN15V00037S009 [3] GEAR KOB Planetary
10 YN15V00037S010 [3] PIN KOB
11 YN15V00037S011 [6] WASHER KOB Thrust
12 YN15V00037S012 [6] WASHER KOB Thrust
13 YN15V00037S013 [1] PLATE KOB
14 YN15V00037S014 [1] COVER KOB
15 YN15V00037S015 [1] COUPLING KOB
16 YN15V00037S016 [3] PIN KOB
17 YN15V00037S017 [3] PIN KOB
22 YN15V00037S022 [2] LOCK WASHER KOB Lock Washer
23 YN15V00037S023 [1] SHIM KOB
24 YN15V00037S024 [2] BALL BEARING KOB Ball
27 YN15V00037S027 [3] ROLLER BEARING KOB Needle
28 YN15V00037S028 [3] ROLLER BEARING KOB Needle
29 YN15V00037S029 [1] SEAL KOB Floating
30 2441U995S121 [3] PLUG KOB
31 ZD12P01800 [3] O-RING KOB ID 17.8mm x OD 20.2mm
35 ZS23C10035 [18] SCREW,Hex Socket Head, M10 x 35mm KOB Cap
36 ZR26X03200 [1] SNAP RING KOB Retaining
101 YN15V00037S101 [1] MANDREL KOB
102 YN15V00037S102 [1] SHAFT KOB
103 NSS [1] NOT SOLD SEPARAT CON Plate, Shoe
104 YN15V00037S104 [1] CYLINDER KOB Block
105 NSS [9] NOT SOLD SEPARAT CON Piston
106 NSS [9] NOT SOLD SEPARAT CON Shoe
107 YN15V00037S107 [1] PLATE KOB Retainer (For F1 ONLY)
107 YN15V00037S098 [1] PLATE KOB Retainer (For F2 ONLY)
108 YN15V00037S108 [1] BALL KOB Joint (For F1 ONLY)
108 YN15V00037S099 [1] BALL KOB Ball[ (For F2 ONLY)
109 YN15V00037S109 [1] PLATE KOB
112 YN15V00037S112 [1] PISTON KOB
113 YN15V00037S113 [8] SPRING KOB
114 YN15V00037S114 [9] SPRING KOB
115 YN15V00037S115 [3] PLATE KOB Friction
116 YN15V00037S116 [4] PLATE KOB Separator
119 YN15V00037S119 [1] SHIM KOB
132 YN15V00009S027 [1] OIL SEAL KOB
133 YN15V00009S019 [1] RING KOB Retaining
135 YN15V00037S135 [1] RING KOB
137 2436U279S3 [1] PLUG KOB
138 2436U1749S17 [1] PLUG KOB
139 YN15V00037S139 [1] RING KOB
149 YN15V00037S149 [1] ROLLER BEARING KOB Roller Superseded by part number: 26799950
150 YN15V00037S150 [1] ROLLER BEARING KOB Roller Superseded by part number: YN15V00009S032
161 NSS [1] NOT SOLD SEPARAT CON Piston
162 YN15V00037S162 [1] BALL KOB
163 NSS [1] NOT SOLD SEPARAT CON Seal
167 NSS [2] NOT SOLD SEPARAT CON Pivot
200 YN22V00036F1 [2] VALVE KOB Assy, Relief (See HC385)
301 YN15V00037S301 [1] FLANGE KOB
323 NSS [1] NOT SOLD SEPARAT CON Spool
324 YN15V00037S324 [2] PLUG KOB
325 YN15V00037S325 [2] SEAT KOB Spring
326 NSS [2] NOT SOLD SEPARAT CON Plug
327 NSS [2] NOT SOLD SEPARAT CON Valve
328 NSS [2] NOT SOLD SEPARAT CON Spring
329 YN15V00037S329 [2] O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro KOB Superseded by part number: ZD12P03400
330 YN15V00037S330 [2] SPRING KOB
331 NSS [2] NOT SOLD SEPARAT CON O-ring
341 YN15V00017S033 [1] PIN KOB
343 ZS23C16040 [8] CAPSCREW,Hex Socket Head, M16 x 40mm KOB SCREW Cap
345 2436U1427S25 [15] PLUG KOB
363 YN15V00037S363 [1] SPOOL KOB
364 2436R874S3 [1] FLEXIBLE JOINT KOB Connector
365 2436R874S6 [1] PIN KOB
366 2436R874S7 [1] SPRING KOB
367 2436R874S5 [1] SPRING SEAT KOB
368 2436U1317S13 [2] PLUG KOB
369 ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
370 LC15V00023S062 [1] PLUG KOB
371 ZD12P01400 [2] O-RING KOB
372 LC15V00023S067 [2] RESTRICTOR KOB
373 LC15V00023S068 [2] SPRING KOB
374 YN15V00017S038 [5] PLUG KOB
375 ZD12P00800 [6] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
376 GN15V00010S024 [3] RESTRICTOR KOB
377 YN15V00017S017 [3] CHECK VALVE KOB
378 YN15V00017S026 [3] SPRING KOB
379 ZD12P01600 [1] O-RING KOB
380 YN15V00037S380 [1] O-RING KOB
397 2483U254S19 [1] Name Plate
398 YN15V00037S398 [4] Rivet
399 YN15V00037S399 [1] Name Plate
. . YN15V00037R400 [1] PISTON KOB Repair Kit Consists Of Ref. 105x9, 106x9
. . YN15V00037R410 [1] PISTON KOB Repair Kit Consists Of Ref. 161x1, 163x1
. . YN15V00037R420 [1] PLATE KOB Repair Kit Consists Of Ref. 103x1, 167x2
. . YN15V00037R430 [1] VALVE KOB Repair Kit Consists Of Ref. 103x1, 323x1, 324x2, 325x2, 326x2, 327x2, 328x2, 329x2, 330x2, 331x2, 341x1, 343x8, 345x15, 363x1, 364x1, 365x1, 366x1, 367x1, 368x2, 369x2, 370x1, 371x2, 372x2, 373x2, 374x5, 375x6, 376x3, 377x3, 378x3, 379x1, 380x1
. . YN15V00037R440 [1] VALVE KOB Repair Kit Consists Of Ref. 323x1, 326x2, 327x2, 328x2, 331x2
. . YN15V00037R450 [1] SEAL KIT KOB Repair Kit Consists Of Ref. 31x3, 132x1, 135x1, 139x1, 329x2, 369x2, 371x2, 375x6, 379x1, 380x1
. . YN15V00037R460 [1] REPAIR KIT KOB Repair Kit Consists Of Ref. 107x1, 108x1 (F2 Only)



MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts 0

MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts 1

MAG170 MAG200 MAG230 Series Excavator Travel Motor Parts OEM Final Drive Parts 2











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
