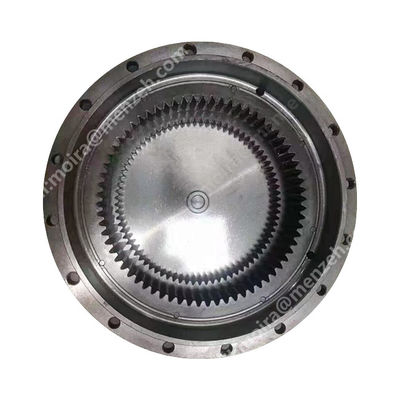

VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover

VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover

  • VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover
  • VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover
VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Cover Part Number: VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200
Used For: EC460 DH500 DX500 R450-7 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

R450-7 Travel Motor Cover

,

EC460 Travel Motor Cover

,

VOE14513227 Travel Motor Cover

VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover



Part Name Cover
Part Number VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200
Used For EC460 DH500 DX500 R450-7
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
  VOE14531093 [1] Reduction Gear S/N 10001-11952 S/N 80001-80512
  VOE14608847 [1] Reduction Gear S/N 11953- S/N 80513-
1 SA8230-09980 [1] Cover S/N 10001-11952 S/N 80001-80512
  VOE14604651 [1] Cover
2   [1] Cover
3   [1] Ring
4   [1] Ring
5 VOE11701193 [1] Friction washer
6 VOE14262071 [2] Plug
7 VOE11701192 [1] O-ring
8 VOE14262070 [2] Washer
9 VOE14541740 [16] Screw
10 VOE11706896 [1] Reduction gear
11 SA8230-21320 [1] Ring
12 VOE14541726 [3] Clip
13 SA8230-21130 [3] Planetary gear
14 SA8230-22070 [3] Roller bearing
15 VOE14541741 [1] Case
16 SA8230-35760 [1] Reduction gear
17 SA8230-21310 [1] Ring
18 VOE14541743 [4] Clip
19 SA8230-21170 [4] Planetary gear
20 SA8230-22080 [4] Roller bearing
21 VOE14541742 [1] Case
22 VOE14608963 [1] Planet carrier
23 SA8230-35600 [4] Bushing
24 VOE14604652 [4] Screw S/N 10001-11952 S/N 80001-80512
  VOE14608962 [4] Screw
25 SA8230-22290 [4] Screw
26 SA8230-22110 [4] O-ring
27 SA8230-35430 [0016] Screw
28 SA8230-35780 [1] Housing
29 VOE14541746 [1] Bushing
30 VOE14541747 [1] Spacer
31 VOE14541748 [2] O-ring
32   [1] Bearing
33 VOE14541745 [1] Case
34 VOE11706895 [1] Sun gear
35 SA8230-35550 [1] Sun gear
36 SA8230-35560 [1] Sun gear
37 VOE15175856 [1] Ring
38 SA8230-35510 [1] Hub S/N 10001-11660 S/N 80001-80232
38 VOE15156998 [1] Kit
38 VOE14604655 [1] Adapter
38 VOE14604802 [1] Hub S/N 11661- S/N 80233-
39 VOE14535329 [1] Retainer S/N 10001-11660 S/N 80001-80232
40 SA8230-35520 [1] Shaft
41 VOE11701198 [1] O-ring
42 SA8230-35640 [7] Disc S/N 10001-11660 S/N 80001-80232
  VOE14604484 [7] Disc S/N 11661- S/N 80233-
43 SA8230-35630 [6] Ring
44 SA8230-22380 [1] Ring
45 SA8230-22170 [1] O-ring
46 SA8230-22180 [1] O-ring
47 SA8230-22390 [1] Ring
48 VOE14604654 [1] Piston
49 VOE11702537 [21] Spring
50 SA8230-35590 [1] Spacer
51 SA8230-35420 [1] Clip
52 SA8230-35570 [1] Adapter S/N 10001-11660 S/N 80001-80232
  VOE14604655 [1] Adapter S/N 11661- S/N 80233-
53 VOE11707954 [1] O-ring
54 SA8230-22050 [2] Screw
55 VOE14604803 [1] Clip



VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 0



VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 1

VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 2VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 3











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 4VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 5VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 6VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 7VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 8VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 9

VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 10VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 11VOE14604651 VOE14512781 VOE14532368 VOE14513227 VOE14513200 EC460 DH500 DX500 R450-7 Travel Motor Cover 12
