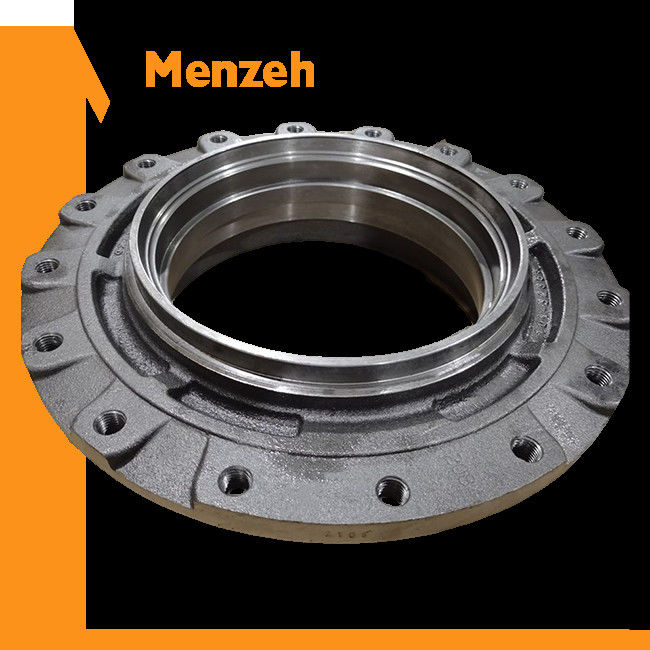

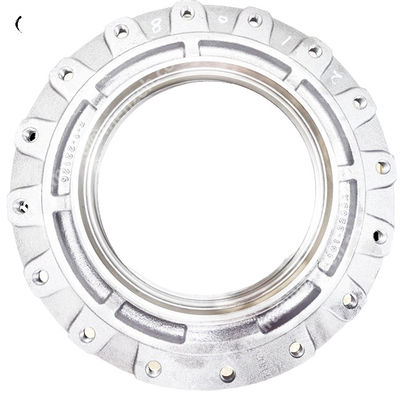

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub

  • 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub
  • 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub
  • 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub
353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Motor Housing Part Number: 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878
Used For: E320D2 E323D2 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

E323D2 Excavator Gearbox Housing

,

3633878 Excavator Gearbox Housing

,

1484638 Excavator Gearbox Housing

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub



Part Name Motor Housing
Part Number 353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878
Used For E320D2 E323D2
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 094-0580 [1] PLATE (10-MM THK)
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
12 114-1539 [6] PIN-DOWEL
13 148-4715 [1] GEAR-COUPLING (55-TEETH)
14 174-4874 [1] SEAL GP-DUO-CONE
15 333-2989 [1] GEAR-SUN (12-TEETH)
16 333-2990 [1] GEAR-SUN (18-TEETH)
17 333-2991 [3] GEAR-PLANETARY (38-TEETH)
18 333-2992 [3] GEAR-PLANETARY (35-TEETH)
19 333-2993 [3] SHAFT
20 333-2994 [3] SHAFT
21 333-2995 [1] CARRIER-PLANETARY
22 333-2996 [1] CARRIER-PLANETARY
23 333-2998 [1] HOUSING
24 353-0612 [1] HOUSING-MOTOR
25 457-7976 [1] COVER
26 457-7977 [1] GEAR-RING (90-TEETH)
27 094-0584 [6] WASHER (40.3X72X1-MM THK)
28 095-0891 [6] PIN-SPRING
29 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
30 143-0811 M [16] BOLT (12X1.75X35-MM)
31 165-5785 [1] SPACER (40X60.9X1-MM THK)
32 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
33 296-6220 [2] BALL BEARING
34 296-6268 [6] BEARING AS-ROLLER
35 346-5215 [3] BEARING AS
36 3E-2338 [2] PLUG-PIPE
37 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
38 6D-0692 [1] SEAL-O-RING
39 7M-8485 [2] SEAL-O-RING
40 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
41 8T-0348 M [28] BOLT-SOCKET HEAD (M16X2X50-MM)
42 9X-8268 [28] WASHER (17.5X30X3.5-MM THK)

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 0



353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 1

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 2353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 3353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 5353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 6353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 7353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 8353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 9353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 10

353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 11353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 12353-0612 1252940 1352359 1913235 1913236 1484638 2676798 3633878 E320D2 E323D2 Excavator Gearbox Housing Final Drive Hub 13
