Home ProductsExcavator Swing Gearbox

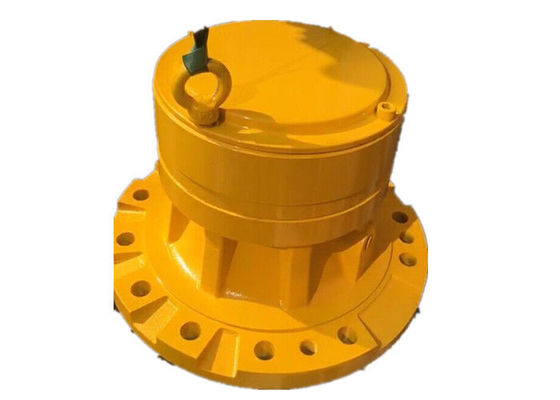

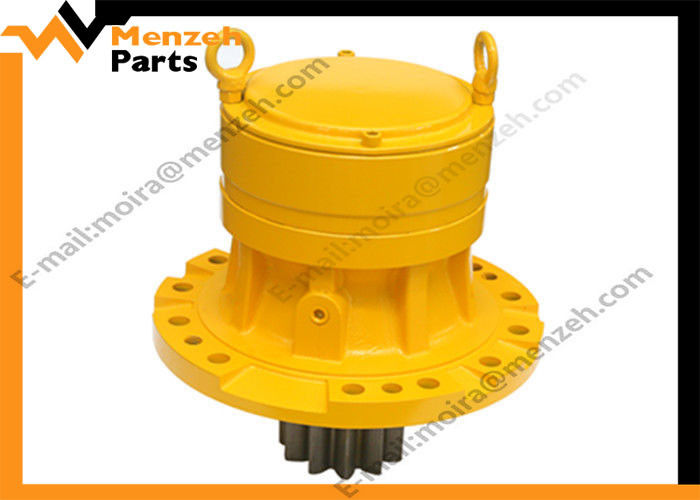

333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat

333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat

  • 333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat
  • 333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat
  • 333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat
333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: CAT315 E318
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negociated
Packaging Details: Wooden Case, 85*90*85
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: 333-3015 369-9604 199-4602
Used For: E318DL E315DL E318D2 L E315C Condiction: All New
Warrenty: 6 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu, Guangzhou
High Light:

333-3015 Excavator Swing Gearbox

,

369-9604 Excavator Swing Gearbox

,

E318DL 199-4602

333-3015 369-9604 199-4602 E318DL E315DL E318D2 L E315C Cat Excavator Swing Gearbox

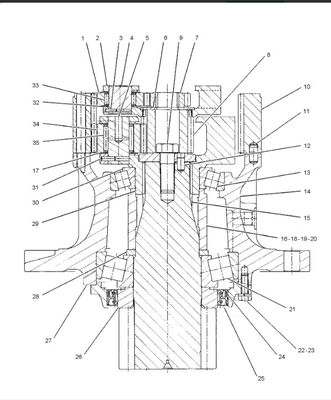

Pos. Part No Qty Parts name
1 191-2600 [3] GEAR-PLANETARY
2 191-2599 [1] CARRIER-PLANETARY
3 191-2604 [3] PIN-SPRING
4 191-2603 [3] SHAFT-PLANETARY
5 199-4628 [3] SHAFT-PLANETARY
6 191-2605 [1] WASHER (30X75X3-MM THK)
7 199-4629 [1] GEAR-SUN
8 199-4630 [1] GEAR-SUN
9 114-8224 M [1] BOLT (M20X1.5-THD)
10 199-4631 [1] GEAR-RING
11 093-6089 [2] DOWEL
12 095-0893 [1] PIN-SPRING
13 7I-7625 [1] BEARING AS-ROLLER
14 199-4638 [1] HOUSING
15 199-4632 [1] SHAFT-PINION
16 199-4636 [1] SPACER
17 199-4627 [6] WASHER
18 199-4634 [1] SPACER
19 199-4635 [1] SPACER
20 199-4637 [1] SPACER
21 148-4744 [1] BEARING AS
22 8T-4195 M [9] BOLT (M10X1.5X30-MM)
23 8T-4121 [9] WASHER-HARD (11X21X2.5-MM THK)
24 102-6495 [1] SEAL
25 148-4748 [1] CAGE
26 148-4747 [1] SPACER (29.5-MM THK)
27 1U-8846 B [1] SEALANT-GASKET
28 148-4751 [1] SPACER (8.3-MM THK)
  148-4752 B [1] SPACER (8.275-MM THK)



PRODUCT DESCRIPTION

333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat 0

FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat 1



333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat 2333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat 3333-3015 369-9604 199-4602 Excavator Swing Gearbox Fit E318DL E315DL E318D2 L E315C Cat 4
