Guangzhou Menzeh Machinery Parts Co., Ltd.
 |
| Place of Origin: | GUANGZHOU, CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | JS130 JS145 JS160 |
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | Negociated |
| Packaging Details: | Wooden , 80*90*80 |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T, L/C, alibaba pay |
| Supply Ability: | 500pcs per day |
| Part Number: | 05-903825 05/903826 05/903836 | Packing: | Box |
|---|---|---|---|
| Condition: | OEM, New | Delivery Time: | 1-3 Working Days In Stock |
| Werrenty: | 6-12 Months | High Lighted: | Excavator Repaired Parts, Final Drive, Track Gear |

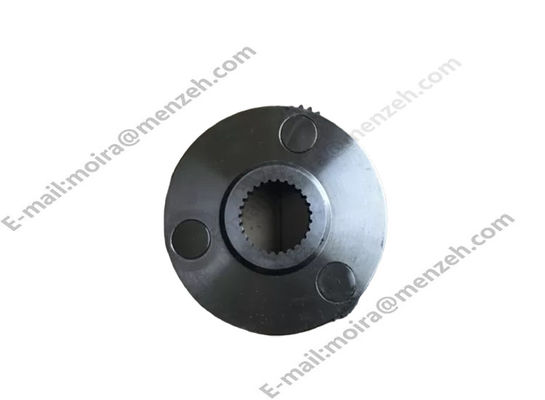

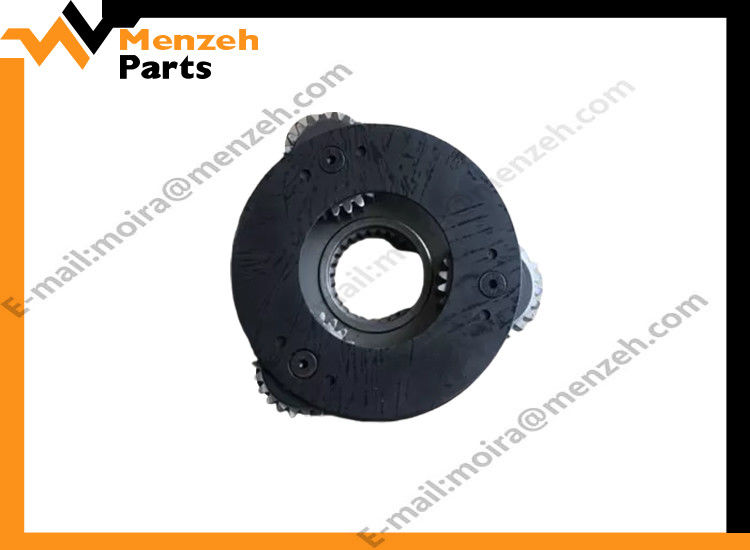

| Part Name: | 1st Carrier Assy | ||
| High Light: | 05903825 Gear Reduction Set,Gear Reduction Set For JS130,903826 05Gear Reduction Set |
||

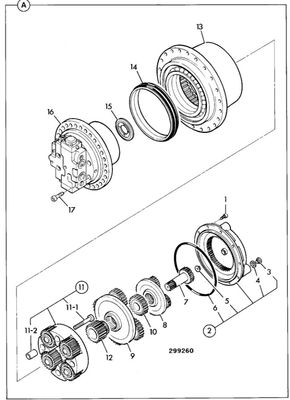

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 114-1466 Y | [1] | DRIVE GP | |
| 2 | 1R-5871 | [1] | SEAL-OIL | |
| 3 | 7I-1082 | [1] | SPRING | |
| 4 | 7I-1084 | [1] | PLATE | |
| 5 | 129-8025 | [1] | BARREL | |
| 6 | 129-8026 | [1] | PISTON-BRAKE | |
| 7 | 096-4377 | [1] | SEAL-O-RING (ID=190.00mm) | |
| 8 | 1R-5883 | [1] | RING-BACK UP | |
| 9 | 096-1521 B | [1] | SHIM (T=1.0mm) | |
| 096-3785 B | [1] | SHIM (T=1.2mm) | ||
| 096-3786 B | [1] | SHIM (T=1.4mm) | ||
| 096-3787 B | [1] | SHIM (T=1.6mm) | ||
| 096-3788 B | [1] | SHIM (T=1.8mm) | ||
| 096-1522 B | [1] | SHIM (T=2.0mm) | ||
| 10 | 095-0687 | [10] | BOLT (L=45mm) | |
| 11 | 8T-6759 | [10] | PLUG | |
| 12 | 1R-5881 | [2] | SPRING | |
| 13 | 7I-1104 | [2] | PLUG | |
| 14 | 3Y-9267 | [2] | BALL | |
| 15 | 4I-9426 | [1] | RING-RETAINING | |
| 16 | 7I-1110 | [1] | SPRING | |
| 17 | 095-0882 | [1] | PIN-SPRING | |
| 18 | 095-1585 | [1] | SEAL-O-RING (ID=17.80mm) | |
| 19 | 095-7381 | [1] | VALVE | |
| 20 | 095-7382 | [1] | RETAINER | |
| 21 | 1R-5879 | [2] | PLATE-FRICTION | |
| 22 | 7I-1121 | [1] | PISTON AS | |
| 23 | 7I-1122 | [1] | GUIDE | |
| 24 | 1R-5874 | [2] | BALL |
Related parts:
FAQ:
Q1. Are you an authorized distributor?
A: Yes we are, we are the sole agent.
Q2. Where are you located?
A: We are located in Guangzhou city, having our own parts warehouse, and technical maintenance personnel for machine.
Q3. Do you sell GENUINE goods or else?
A: We supply only brand new genuine spare parts or goods and we also sell re-manufacture or used ones.
Q4. What if the parts were broken or damaged?
A: We will resend another new one or inside parts to you.
