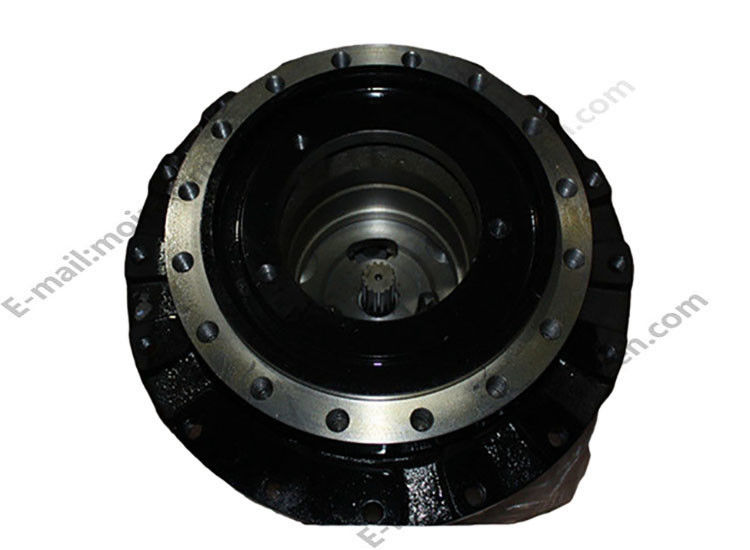

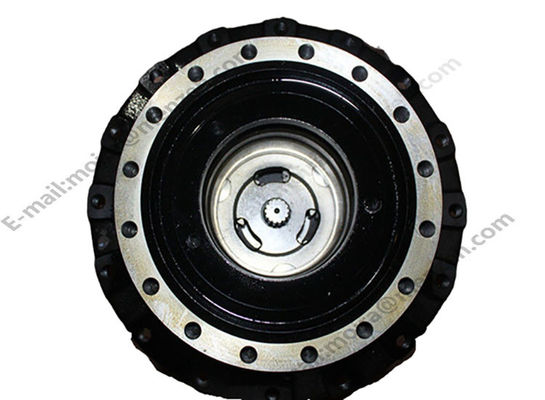

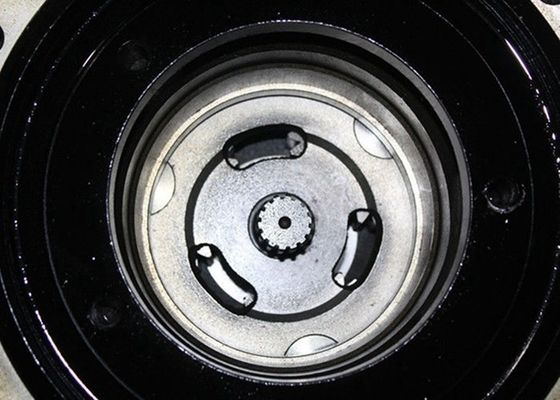

480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox

480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox

  • 480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox
  • 480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox
  • 480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox
480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 480-6768 E320D2 Final Drive Gear
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Transfer Gearbox Part Number: 480-6768
Used For: E320D2 Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu, Guangzhou After Warranty Service: Video Technical Support Online Support Spare Parts
High Light:

480-6768 Final Drive Gear

,

MENZEH Final Drive Gear

,

E320D2 Travel Motor Gearbox

E320D2 Final Drive Gear 480-6768 For Travel Transfer Gearbox



Pos. Part No Qty Parts name Comments
1 094-0580 [1] PLATE (10-MM THK)
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
12 114-1539 [6] PIN-DOWEL
13 148-4715 [1] GEAR-COUPLING (55-TEETH)
14 174-4874 [1] SEAL GP-DUO-CONE
15 333-2989 [1] GEAR-SUN (12-TEETH)
16 333-2990 [1] GEAR-SUN (18-TEETH)
17 333-2991 [3] GEAR-PLANETARY (38-TEETH)
18 333-2992 [3] GEAR-PLANETARY (35-TEETH)
19 333-2993 [3] SHAFT
20 333-2994 [3] SHAFT
21 333-2995 [1] CARRIER-PLANETARY
22 333-2996 [1] CARRIER-PLANETARY
23 333-2998 [1] HOUSING
24 353-0612 [1] HOUSING-MOTOR
25 480-6771 [1] COVER
26 457-7977 [1] GEAR-RING (90-TEETH)
27 094-0584 [6] WASHER (40.3X72X1-MM THK)
28 095-0891 [6] PIN-SPRING
29 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
30 143-0811 M [16] BOLT (12X1.75X35-MM)
31 165-5785 [1] SPACER (40X60.9X1-MM THK)
32 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
33 296-6220 [2] BALL BEARING
34 296-6268 [6] BEARING AS-ROLLER
35 346-5215 [3] BEARING AS
36 3E-2338 [2] PLUG-PIPE
37 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
38 6D-0692 [1] SEAL-O-RING
39 7M-8485 [2] SEAL-O-RING
40 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
41 8T-0348 M [28] BOLT-SOCKET HEAD (M16X2X50-MM)
42 9X-8268 [28] WASHER (17.5X30X3.5-MM THK)

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART


480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox 0

480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox 1480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox 2480-6768 MENZEH GEARS Final Drive Gear , E320D2 Travel Motor Gearbox 3









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
