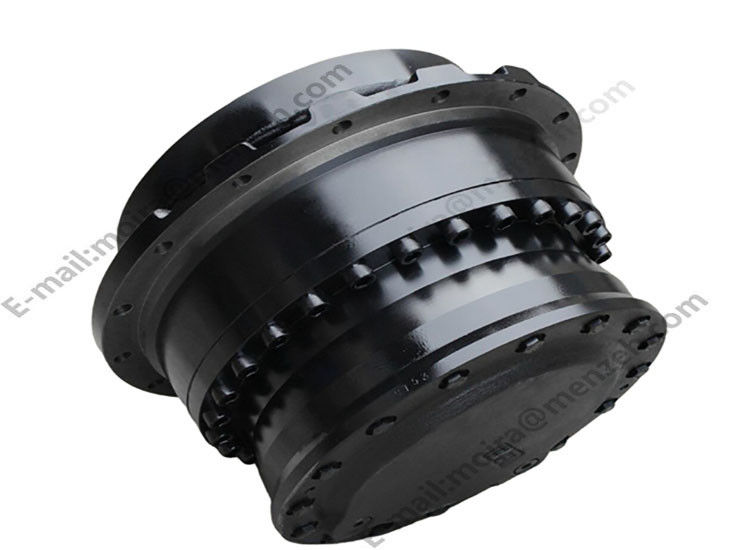

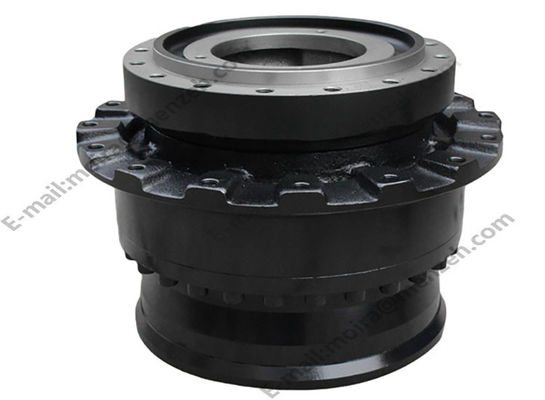

507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts

507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts

  • 507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts
  • 507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts
507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 507-6559 5076558 4883075 4796360 E323F Excavator Travel Gearbox
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Gearbox Part Number: 507-6559 5076558 4883075 4796360
Used For: E323F Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty Service: Video Technical Support Online Support Spare Parts
High Light:

4796360 Excavator Travel Gearbox

,

5076558 Excavator Travel Gearbox

,

E323F 5076558

507-6559 5076558 4883075 4796360 E323F Excavator Travel Gearbox



Pos. Part No Qty Parts name Comments
1 094-0580 [1] PLATE (10-MM THK)
2 094-0611 [6] WASHER (47.3X76X1-MM THK)
3 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
4 3E-2338 [2] PLUG-PIPE
5 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
6 6D-0692 [1] SEAL-O-RING
7 7M-8485 [2] SEAL-O-RING
8 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
9 8T-0348 M [28] BOLT-SOCKET HEAD (M16X2X50-MM)
10 9X-8268 [28] WASHER (17.5X30X3.5-MM THK)
11 346-5215 [3] BEARING AS
12 114-1539 [6] PIN-DOWEL
13 148-4715 [1] GEAR-COUPLING (55-TEETH)
14 174-4874 [1] SEAL GP-DUO-CONE
15 333-2989 [1] GEAR-SUN (12-TEETH)
16 333-2990 [1] GEAR-SUN (18-TEETH)
17 333-2991 [3] GEAR-PLANETARY (38-TEETH)
18 333-2992 [3] GEAR-PLANETARY (35-TEETH)
19 333-2993 [3] SHAFT
20 333-2994 [3] SHAFT
21 333-2995 [1] CARRIER-PLANETARY
22 333-2996 [1] CARRIER-PLANETARY
23 333-2998 [1] HOUSING
24 455-4087 [1] HOUSING-MOTOR (LH)
25 457-7977 [1] GEAR-RING (90-TEETH)
26 480-6771 [1] COVER
27 498-9005 [1] GASKET
28 094-0584 [6] WASHER (40.3X72X1-MM THK)
29 095-0891 [6] PIN-SPRING
30 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
31 143-0811 M [16] BOLT (12X1.75X35-MM)
32 165-5785 [1] SPACER (40X60.9X1-MM THK)
33 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
34 296-6220 [2] BALL BEARING
35 296-6268 [6] BEARING AS-ROLLER
  B   USE AS REQUIRED
  M   METRIC PART


507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 0507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 1507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 2


FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 3

507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 4507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 5507-6559 5076558 4883075 4796360 Excavator Travel Gearbox For E323F Repaired Parts 6
