295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D

  • 295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D
  • 295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D
295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 295-9686 2959578 3588525 M5X180
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiated
Packaging Details: Wooden Case, Box
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C, ALIPAY
Supply Ability: 500 sets per Day
Contact Now
Detailed Product Description
Part Name: Piston Swing Motor Part Number: 295-9686 2959578 3588525 M5X180
Used For: CAT324D CAT325D CAT329D Condiction: All New, OEM
Warrenty: 3-12 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu, Guangzhou Weight: 8 Kgs With Packing
Material: Iron Or Steel
High Light:

295-9686 Swing Motor Parts

,

2959578 Swing Motor Parts

,

CAT324D 3588525

295-9686 2959578 3588525 M5X180 Piston Swing Motor CAT324D CAT325D CAT329D





Pos. Part No Qty Parts name Comments
1. 1T-0936 [1] PLUG-ORIFICE
2. 4B-4158 [4] SCREW-DRIVE (NO 4X0.25-IN)
3. 6V-3382 J [1] SEAL-LIP TYPE
4. 8J-2559 [1] PLATE-WARNING (OIL FILL)
5. 087-4786 [1] ADAPTER

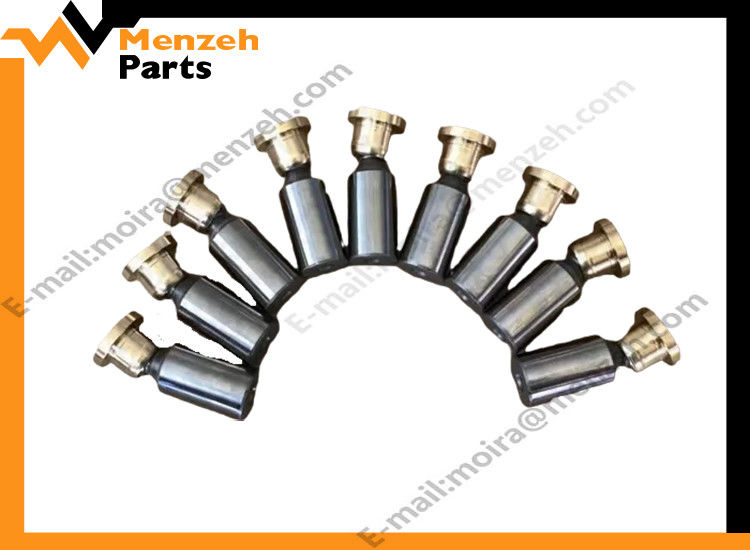

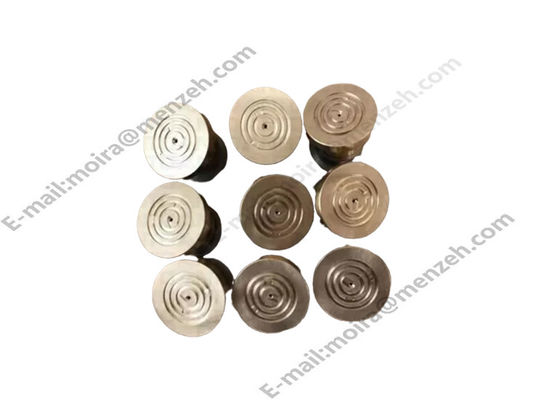

6. 108-6503 [9] PISTON AS
7. 118-4057 [9] SPRING
8. 124-1541 [2] PIN
9. 124-1561 [20] SPRING-BRAKE
10. 137-3708 [1] RETAINER
11. 167-3855 [1] SHAFT
12. 167-3857 [1] KEY
13. 167-3858 [1] KEY
14. 167-3859 [1] PLATE-CAM
15. 167-3862 [1] PLATE-RETAINER
16. 167-3863 [1] BALL
17. 167-3865 [5] PLATE-SEPARATOR
18. 167-3866 [4] PLATE-FRICTION
19. 167-3867 [1] PLATE-PORT
20. 167-3868 [1] PISTON-BRAKE
21. 167-3872 [1] SPOOL
22. 170-1612 J [2] SEAL
23. 170-1626 J [1] RING-BACKUP
24. 170-1627 J [1] RING-BACKUP
25. 173-4063 [1] BARREL AS-MOTOR
26. 173-4066 [1] SPACER (63.05X79.8X7-MM THK)
27. 175-7436 [1] VALVE
28. 175-7887 [2] DOWEL
29. 180-6769 [1] BEARING AS
30. 180-6770 [1] BEARING AS
31. 186-5175 [1] PLUG
32. 193-7901 [1] BODY AS
  124-1555 [4] PLUG
33. 271-6377 [1] HEAD AS
  096-5916 [2] SEAT
  124-1555 [4] PLUG
34. 274-4512 [1] SEAT
35. 274-4513 [2] RETAINER
36. 345-3744 [1] PISTON-ACTUATOR
37. 095-1572 J [2] SEAL-O-RING
38. 095-1585 J [1] SEAL-O-RING
39. 095-1596 J [1] SEAL-O-RING
40. 095-1700 J [2] SEAL-O-RING
41. 095-7380 [1] SPRING
42. 096-3978 [1] SPRING
43. 096-5919 J [2] RING-BACKUP
44. 099-7030 J [1] RING-BACKUP
45. 170-1616 J [1] SEAL
46. 2D-6642 [2] BALL
47. 2M-9780 J [1] SEAL-O-RING
48. 2R-1236 [1] RING-RETAINING (LOCK, INTERNAL)
49. 3D-2824 J [2] SEAL-O-RING
50. 3K-0360 J [2] SEAL-O-RING
51. 4K-4284 [1] RING-RETAINING
52. 6V-5192 M [4] BOLT-SOCKET HEAD (M8X1.25X30-MM)
53. 7Y-5219 J [2] SEAL-O-RING
54. 8T-2393 M [8] BOLT-SOCKET HEAD (M16X2X60-MM)

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 0

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 1

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 2











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.





295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 3

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 4

295-9686 2959578 3588525 M5X180 Swing Motor Parts Fit CAT324D CAT325D CAT329D 5
