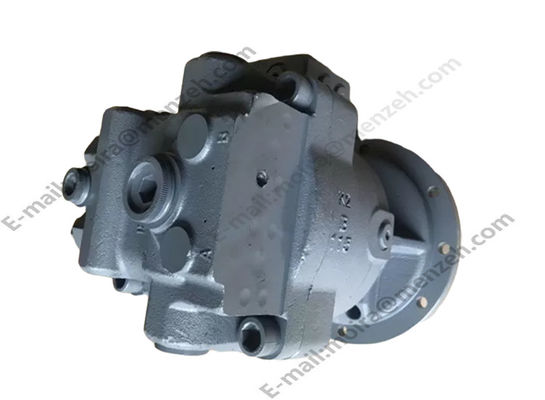

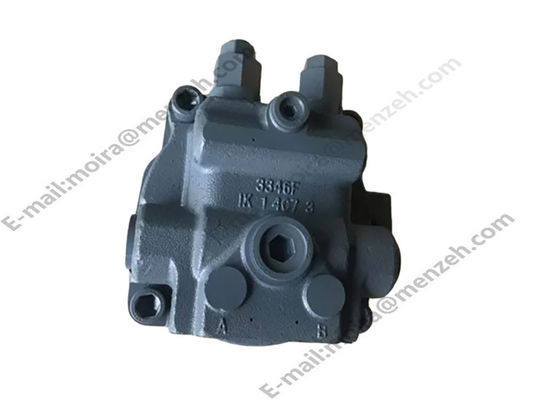

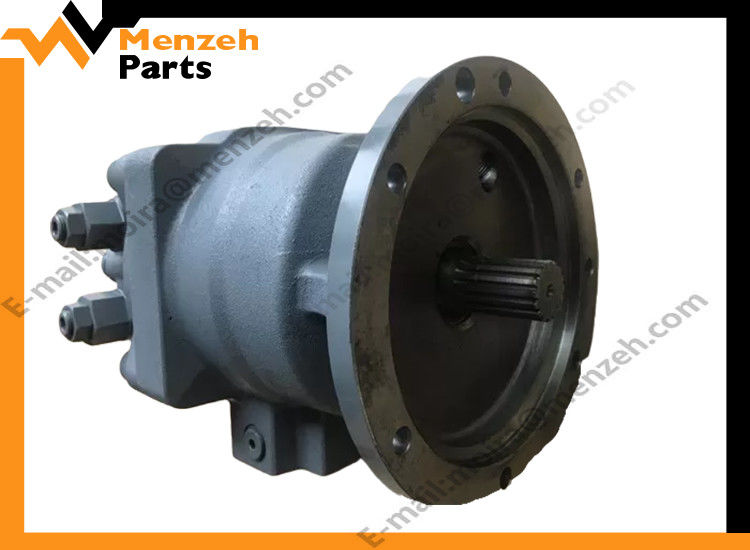

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator

  • 9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator
  • 9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator
  • 9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator
9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 9177550 9196961
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiated
Packaging Details: Wooden Case, Box
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C, ALIPAY
Supply Ability: 200 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Motor Part Number: 9177550 9196961
Used For: ZX120 ZX130-3 ZX135US Condiction: All New, OEM, Original
Warrenty: 3-12 Months Shipping: Express/ SEA/ AIR Shipping
Port: Huangpu, Guangzhou Weight: 55kgs With Packing
After-sales Services: Online Technique Or Free Parts
High Light:

9177550 Excavator Swing Motor

,

9196961 Excavator Swing Motor

,

ZX135US Slew Motor Excavator

9177550 9196961 Hydraulic Slew Device Excavator Swing Motor For ZX120 ZX130-3 ZX135US



Pos. Part No Qty Parts name Comments
00. 2044629 [1] SHAFT;PROP.
01. 3083710 [1] SLEEVE
02. A811095 [1] O-RING
03. 4430041 [1] BRG.;ROL.
04. 4411143 [1] SEAL;OIL
05. 1027901 [1] HOUSING
06. 4408119 [1] BRG.;ROL.
07. 3083674 [1] NUT
08. 4407745 [1] PLATE;LOCK
10. J901020 [2] BOLT
11. 2042965 [1] CARRIER
12. 4176070 [1] PLATE;THRUST
13. 4408102 [3] PIN
14. 4414855 [3] BRG.;NEEDLE
15. 3084940 [3] GEAR;PLANETARY
16. 4414833 [6] PLATE;THRUST
17. 4116308 [6] PIN;SPRING
19. 3092035 [1] GEAR;SUN
20. 2045146 [1] GEAR;RING
21. M341440 [12] BOLT;SOCKET
23. 2042964 [1] CARRIER
24. 4244904 [1] PLATE;THRUST
25. 4408122 [3] PIN
26. 4430040 [3] BRG.;NEEDLE
27. 3083741 [3] GEAR;PLANETARY
28. 4408002 [3] PLATE;THRUST
29. 3083740 [1] GEAR;SUN
31. 3087949 [1] PIPE
33. 94-2012 [1] PLUG
61. 8082514 [1] COVER (for transportation)
62. J011040 [7] BOLT;SEMS
62. J271040 [7] BOLT;SEMS T J901040 (for transportation)
        J222010
64. 94-2011 [1] PLUG (for transportation)
65. 3053093 [1] NAME-PLATE (for transportation)
66. M492564 [2] SCREW;DRIVE (for transportation)
101. 9177550 [1] MOTOR;OIL I 9196961 (for assembly of machine)
101. 9196961 [1] MOTOR;OIL (for transportation)
102. 927488 [1] RING;RETAINING
106. 4298608 [1] CAP
107. M341025 [7] BOLT;SOCKET
108. 3053093 [1] NAME-PLATE
109. M492564 [2] SCREW;DRIVE
114. 4449144 [1] PIPE
115. 3090862 [1] GAUGE;LEVEL
116. 4449182 [1] PIPE
117. 4436535 [1] SENSOR;PRES.
200. 9196343 [1] SWING DEVICE (WITHOUT MOTOR)

  9177550 [1] MOTOR;OIL (SWING) I 9196961 <for assembly of machine>
  9196961 [1] MOTOR;OIL (SWING) <for transportation>
01. 8080152 [1] CASING
01A. +++++++ [1] CASING
01B. +++++++   CASING;MOTOR
02. 4320490 [1] SEAL;OIL
03. 3085794 [1] SHAFT
05. 991342 [1] RING;RETAINING
06. 4402669 [1] BRG.;ROL.
07. 940144 [1] RING;RETAINING
08. 4396102 [1] PLATE;SWASH
10. 2043442 [1] ROTOR
12. 4413753 [1] SPRING;DISC
13. 4413700 [1] BUSHING
14. 8071556 [9] PISTON
15. 3081727 [1] RETAINER
17. 3087818 [4] PLATE;FRICTION
19. 3075729 [4] PLATE
21. 3084716 [1] PISTON
22. 4413765 [1] O-RING
23. 4413764 [2] O-RING
24. 4434436 [1] SPRING;DISC
26. 3089613 [1] PLATE;VALVE
28. 9177595 [1] VALVE;BRAKE I 9198979 <for assembly of machine>
28. 9198979 [1] VALVE;BRAKE <for transportation>
29. 4413768 [1] BRG.;NEEDLE
30. 4413761 [2] PIN;KNOCK
32. A590916 [4] WASHER;SPRING
34. M341650 [4] BOLT;SOCKET
36. M492564 [2] SCREW;DRIVE
37. 3088886 [1] NAME-PLATE
41. 9134110 [3] PLUG
41A. 957366 [1] O-RING
43. 9134109 [1] PLUG
43A. 4506408 [1] O-RING
45. 4399892 [1] POPPET
46. 4398846 [1] SPRING;COMPRES.
47. 4452178 [1] WASHER;PLANE
50. 4398889 [1] SPRING;COMPRES.


9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 0

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 1



9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 2

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 39177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.





9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 5

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 6

9177550 9196961 Excavator Swing Motor , ZX120 ZX130-3 ZX135US Slew Motor Excavator 7
