Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | VOE1451198 VOE21724194 VOE14547265 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden Case, Box |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C, ALIPAY |
| Supply Ability: | 1000 pcs per Day |
| Part Name: | Bearing Swing Reduction Gearbox | Part Number: | VOE1451198 VOE21724194 VOE14547265 |
|---|---|---|---|
| Used For: | EC350D EC700B EC330B | Condiction: | OEM, Aftermarket |
| Warrenty: | 3 Months, 6 Months | Shipping: | Express / SEA/ AIR Shipping |
| Port: | Huangpu, Guangzhou | Weight: | 6.8 Kgs With Packing |
| High Light: | VOE1451198 Excavator Swing Gear,VOE21724194 Excavator Swing Gear,EC350D VOE14547265 |
||
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14640501 | [1] | Swing gearbox | ||
| 1. | VOE14547262 | [1] | Case | |
| 2. | VOE14547260 | [1] | Ring | |
| 3. | VOE14547259 | [1] | Collar | |
| 4. | VOE14640502 | [1] | Shaft | |
| 5. | VOE14547263 | [1] | Cover | |
| 6. | VOE14547266 | [1] | Gear | |
| 7. | VOE984363 | [20] | Hex. socket screw | |
| 8. | VOE984088 | [12] | Hex. socket screw | |

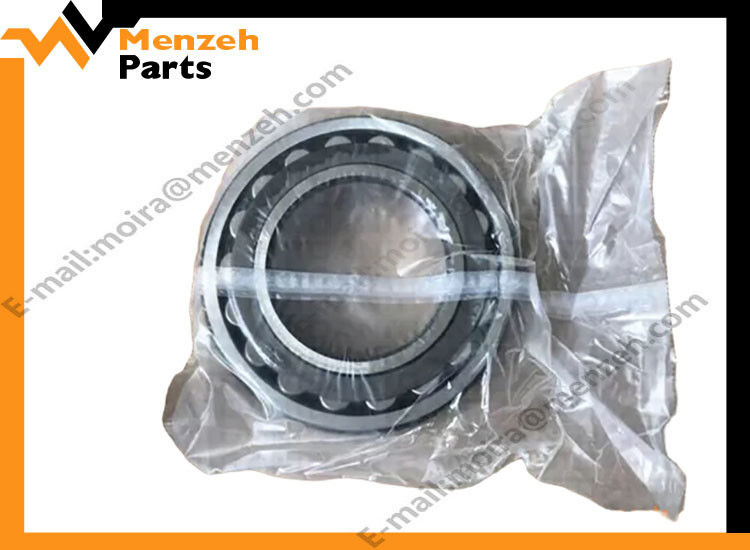

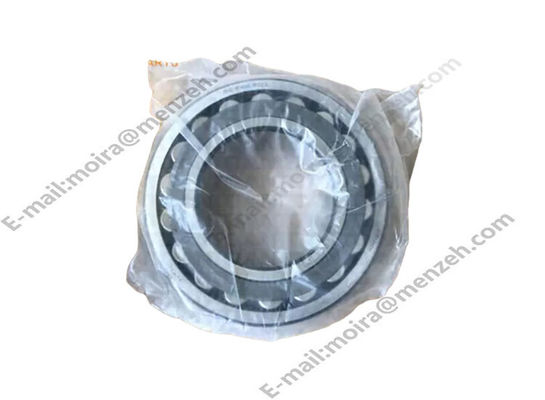

| 9. | VOE14547261 | [1] | Bearing | |
| 10. | SA9415-43012 | [1] | Plug | |
| 11. | VOE914167 | [1] | Lubricating nipple | |
| 12. | VOE14566830 | [1] | Seal | |
| 13. | VOE14547265 | [1] | Bearing | |
| 14. | SA9541-01110 | [1] | Retaining ring | |
| 15. | SA7118-30380 | [1] | Thrust ring | |
| 16. | VOE14547272 | [1] | Gear | |
| 17. | VOE14547278 | [1] | Thrust washer | |
| 18. | VOE14547279 | [1] | Gear | |
| 19. | VOE14880960 | [1] | Retaining ring | |
| 20. | VOE14547281 | [1] | Pipe | |
| 21. | VOE14547280 | [1] | Planet carrier | |
| 22. | VOE14547267 | [1] | Planet carrier | |
| 23. | VOE14547271 | [4] | Pin | |
| 24. | VOE14547268 | [4] | Gear | |
| 25. | VOE14547269 | [4] | Bushing | |
| 26. | VOE14556491 | [8] | Washer | |
| 27. | SA9325-06012 | [4] | Spring pin | |
| 28. | VOE14547273 | [1] | Planet carrier | |
| 29. | VOE14547274 | [1] | Planet carrier | |
| 30. | VOE14547275 | [3] | Gear | |
| 31. | SA7117-30230 | [3] | Needle bearing | |
| 32. | VOE14547277 | [3] | Pin | |
| 33. | SA9325-06012 | [3] | Spring pin | |
| 34. | VOE14547276 | [6] | Washer | |
| 35. | VOE950677 | [4] | Pin | |
| 36. | VOE949329 | [1] | Gasket | |
| 37. | VOE14722461 | [1] | Draining valve |
![]()
![]()
![]()
