Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | LNM0602 160821A1 LC003090 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden Case |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C, ALIPAY |
| Supply Ability: | 1000 pcs per Day |

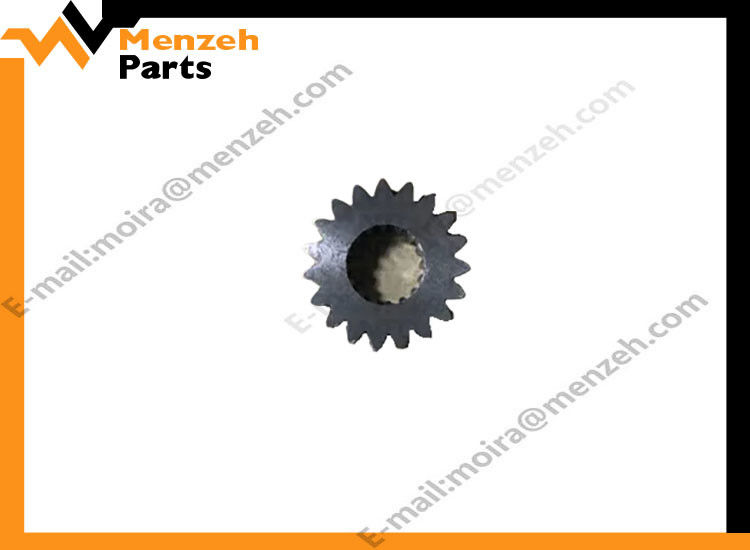

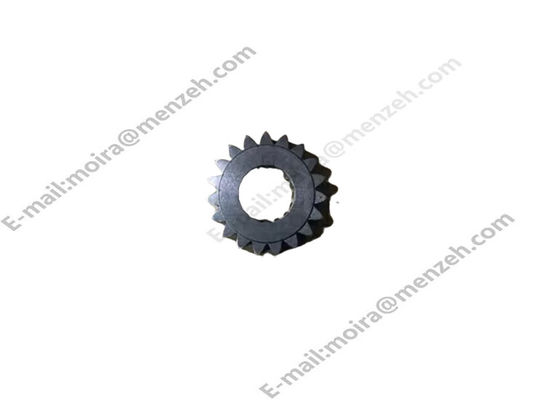

| Part Name: | Planetary Gear | Part Number: | LNM0602 160821A1 LC003090 |
|---|---|---|---|
| Used For: | CX210 CX130 | Condiction: | OEM, Aftermarket |
| Warrenty: | 6 Months, 1 YEAR | Shipping: | Express/ SEA/ AIR Shipping |
| Port: | Huangpu, Guangzhou | Weight: | 12 Kgs With Packing |
| High Light: | LNM0602 Excavator Swing Gear,160821A1 Excavator Swing Gear,CX130B LC003090 |
||
| Pos. | Part No | Qty | Parts name | Comments |
| 43. | LN002340 | [1] | REDUCER | SUM Incl. 44 - 69 |
| . . | LN002340R | [1] | REMAN-REDUCTION UNIT | SUM CX130B TIER 3 (3/08-) |
| . . | LN002340C | [1] | CORE-REDUCTION UNIT | SUM Return Number |
| 44. | LB012830 | [1] | SHAFT | SUM |
| 45. | LR01056 | [1] | PLATE | SUM |
| 46. | LB00939 | [1] | TAPERED BEARING | SUM |
| 47. | LW00429 | [1] | CASE | SUM |
| 48. | 151026A1 | [1] | PLUG | SUM |
| 49. | LE01113 | [1] | OIL SEAL | SUM |
| 50. | LB00940 | [1] | TAPERED BEARING | SUM |
| 51. | LH005420 | [2] | COLLAR | SUM |
| 52. | LH005430 | [2] | COLLAR | SUM |
| 53. | LH005440 | [2] | COLLAR | SUM |
| 54. | LH00385 | [2] | COLLAR | SUM |
| 55. | LC00237 | [4] | RING GEAR | SUM |
| 56. | 155264A1 | [1] | PINION | SUM |
| 57. | 863-12100 | [8] | HEX SOC SCREW,M12 x 100mm, Cl 12.9 | CAS |
| 58. | 160821A1 | [1] | SUN GEAR | SUM |
| 58. | LNM0602 | [1] | GEAR SET | SUM |
| 59. | LNM0601 | [1] | PLANETARY GEAR | SUM |
| 60. | LC00238 | [1] | PLANETARY GEAR | SUM Incl. 61 - 66 |
| 61. | 155357A1 | [1] | SHAFT | SUM |
| 62. | LS004020 | [1] | SUPPORT | SUM |
| 63. | 155377A1 | [1] | BUSHING | SUM |
| 64. | LDM0189 | [1] | GEAR | SUM Superseded by part number: 160822A1 |
| 65. | 155376A1 | [1] | PLATE, THRUST | SUM |
| 66. | LMM0559 | [1] | PIN | SUM |
| 67. | LA00899 | [2] | DOWEL | SUM |
![]()
![]()
![]()
![]()
![]()
![]()
Contact Person: Miss. Moira
Tel: 86-15811713569
