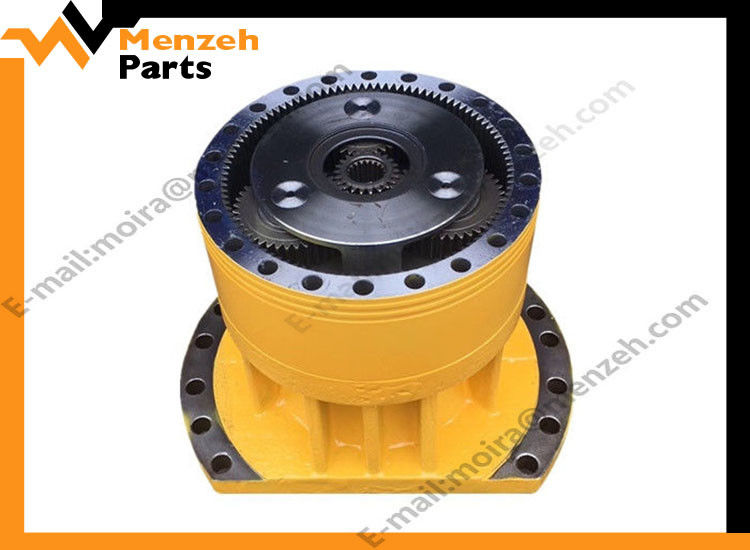

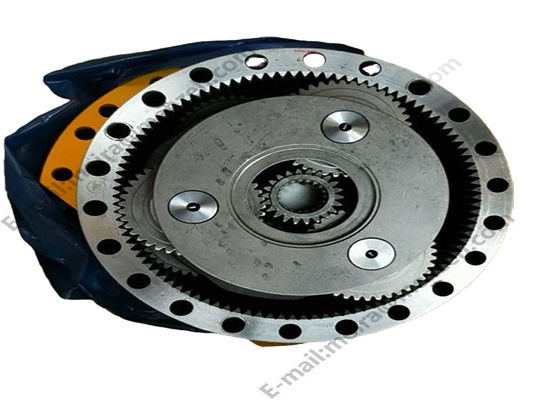

20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102

20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102

  • 20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102
  • 20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102
20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-26-00150 PC200-6 PC220-6 6D102
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Gear Part Number: 20Y-26-00150 PC200-6 PC220-6 6D102
Used For: PC200-6 PC220-6 6D102 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warran: Video Technical Support Online Support Spare Parts
High Light:

20Y-26-00150 Excavator Swing Gearbox

,

706-77-01121 Excavator Swing Gearbox

,

PC200-6 20Y-26-00150

20Y-26-00150 PC200-6 PC220-6 6D102 Excavator Slew Reduction Assy Swing Gearbox





Pos. Part No Qty Parts name Comments
  20Y-26-00151 [1] SWING MACHINERY A. Komatsu 190 kg.
  ["SN: 102083-UP"] analogs:["20Y2600150"] |$0.
  20Y-26-00150 [1] SWING MACHINERY A. Komatsu 190 kg.
  ["SN: 96514-102082"] analogs:["20Y2600151"] |$1.
1. 20Y-26-22210 [1] Komatsu 76 kg.
  ["SN: 96514-UP"]
2. 20Y-26-22330 [1] BEARING Komatsu China 3.28 kg.
  ["SN: 96514-UP"] analogs:["20Y2622331", "20Y2622430"]
3. 20Y-26-22340 [1] BEARING Komatsu China 9.6 kg.
  ["SN: 96514-UP"] analogs:["20Y2622342", "20Y2622440"]
4. 20Y-26-22191 [1] COVER Komatsu 4.6 kg.
  ["SN: 97767-UP"] analogs:["20Y2622190"]
4. 20Y-26-22190 [1] COVER Komatsu 4.6 kg.
  ["SN: 96514-97766"] analogs:["20Y2622191"]
5. 01010-81045 [12] BOLT Komatsu 0.039 kg.
  ["SN: 96514-UP"] analogs:["0101051045", "01010D1045"]
6. 01643-31032 [12] WASHER Komatsu 0.054 kg.
  ["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
7. 20Y-26-22420 [1] SEAL Komatsu China 0.3 kg.
  ["SN: 97767-UP"]
7. 07012-00125 [1] SEAL Komatsu China 0.142 kg.
  ["SN: 80001-97766"]
    [-1] (20Y-26-22420,20Y-26-22191)
  |$$12.
8. 20Y-26-21141 [1] SHAFT, 15 TEETH Komatsu OEM 35 kg.
  ["SN: 96514-UP"] analogs:["20Y2621140", "20Y2621142"]
9. 20Y-26-22170 [1] CARRIER Komatsu 8.55 kg.
  ["SN: 96514-UP"]
10. 20Y-26-22141 [4] GEAR, 36 TEETH Komatsu China 1.8 kg.
  ["SN: 97709-UP"] analogs:["20Y2622140"]
10. 20Y-26-22140 [4] GEAR, 36 TEETH Komatsu China 1.8 kg.
  ["SN: 96514-97708"] analogs:["20Y2622141"]
11. 20G-26-11240 [4] BEARING Komatsu China 0.24 kg.
  ["SN: 96514-UP"] analogs:["20G2611241", "20G2611410"]
12. 20Y-27-21240 [8] WASHER Komatsu China 0.02 kg.
  ["SN: 96514-UP"]
13. 20Y-26-22250 [4] PIN Komatsu China 0.52 kg.
  ["SN: 96514-UP"]
14. 20Y-27-21280 [4] PIN Komatsu China 0.01 kg.
  ["SN: 96514-UP"]
15. 20Y-26-21240 [1] PLATE Komatsu 5.1 kg.
  ["SN: 80001-UP"]
16. 112-32-11211 [1] BOLT Komatsu 0.09 kg.
  ["SN: 80001-UP"]
17. 20Y-26-22151 [1] GEAR, 101 TEETH Komatsu 18.8 kg.
  ["SN: 102083-UP"] analogs:["20Y2622150"]
17. 20Y-26-22150 [1] GEAR, 101 TEETH Komatsu 18.8 kg.
  ["SN: 96514-102082"] analogs:["20Y2622151"]
18. 20Y-26-22131 [1] GEAR, 27 TEETH Komatsu 2.15 kg.
  ["SN: 97709-UP"] analogs:["20Y2622130"]
18. 20Y-26-22130 [1] GEAR, 27 TEETH Komatsu 2.15 kg.
  ["SN: 96514-97708"] analogs:["20Y2622131"]
19. 04064-07525 [1] RING Komatsu 0.026 kg.
  ["SN: 96514-UP"]
20. 20Y-26-22220 [1] THRUST WASHER Komatsu 0.04 kg.
  ["SN: 96514-UP"]
21. 20Y-26-22160 [1] CARRIER Komatsu 5.1 kg.
  ["SN: 96514-UP"]
22. 20Y-26-22120 [3] GEAR, 39 TEETH Komatsu China 1.25 kg.
  ["SN: 96514-UP"]
23. 20Y-26-21281 [3] BEARING Komatsu 0.1 kg.
  ["SN: 110071-UP"] analogs:["20Y2621280", "20X2621240", "20Y2621510"]
23. 20Y-26-21280 [3] BEARING Komatsu 0.1 kg.
  ["SN: 80001-110070"] analogs:["20Y2621281", "20X2621240", "20Y2621510"]
25. 20Y-26-22240 [3] PIN Komatsu 0.367 kg.
  ["SN: 96514-UP"]
27. 20Y-26-22110 [1] GEAR, 22 TEETH Komatsu 0.4 kg.
  ["SN: 96514-UP"]
28. 20Y-26-22230 [1] THRUST WASHER Komatsu 0.1 kg.
  ["SN: 96514-UP"]
29. 20Y-26-22410 [1] COVER Komatsu China
  ["SN: 96514-UP"]
30. 01011-81450 [4] BOLT Komatsu China
  ["SN: 96514-UP"]
31. 01643-31445 [4] WASHER Komatsu 0.019 kg.
  ["SN: 96514-UP"] analogs:["0164301432"]
32. 07042-30617 [1] PLUG Komatsu China
  ["SN: 96514-UP"]
33. 07042-30108 [1] PLUG Komatsu 0.008 kg.
  ["SN: 96514-UP"] analogs:["0704220108"]
34. 07042-30415 [1] PLUG Komatsu 0.056 kg.
  ["SN: 96514-UP"]


20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 0



20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 1

20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 220Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 3









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 420Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 520Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 620Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 720Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 820Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 9

20Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 1020Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 1120Y-26-00150 706-77-01121 Excavator Swing Gearbox Fit PC200-6 PC220-6 6D102 12
