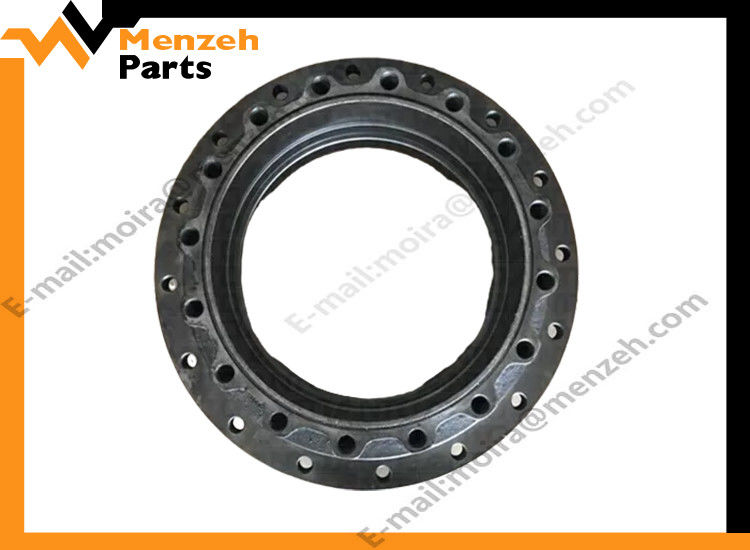

267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive

267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive

  • 267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive
267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 267-6879 1291169 1695586 2276117 E322C 324D E326D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Housing Part Number: 267-6879 1291169 1695586 2276117
Used For: E322C 324D E326D Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light: 267-6879 1291169 1695586 2276117 Housing E322C 324D E326D

267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive



Part Name Housing
Part Number 267-6879 1291169 1695586 2276117
Used For E322C 324D E326D
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 333-2914 [2] BALL BEARING
2 7Y-0752 B [1] SHIM (0.8-MM THK)
  7Y-0753 B [1] SHIM (1-MM THK)
  7Y-0754 B [1] SHIM (1.6-MM THK)
5 8C-8840 [1] RING-RETAINING
6 094-0578 B [1] PLATE (8-MM THK)
  094-0579 B [1] PLATE (9-MM THK)
  094-0580 B [1] PLATE (10-MM THK)
9 094-1528 [12] WASHER (53X84X1-MM THK)
10 114-1540 [4] PIN-DOWEL
11 169-5589 [1] GEAR-SUN (24-TEETH)
12 169-5590 [1] GEAR-SUN (24-TEETH)
13 169-5592 [3] GEAR-PLANETARY (23-TEETH)
14 169-5593 [3] GEAR-PLANETARY (23-TEETH)
15 169-5594 [1] GEAR-RING (65-TEETH)
16 169-5601 [3] SHAFT-PLANETARY
17 169-5602 [3] SHAFT-PLANETARY
18 171-9297 [6] WASHER (34.3X62X1-MM THK)
19 191-2571 [1] CARRIER-PLANETARY
20 191-2674 [1] GEAR-SUN (25-TEETH)
21 191-2675 [3] GEAR-PLANETARY (20-TEETH)
22 191-2676 [1] GEAR-RING (72-TEETH)
23 191-2678 [1] CARRIER AS
    [3] SHAFT-PLANETARY
24 199-4503 [1] COVER
25 207-1571 [1] SEAL GP-DUO-CONE
  214-3570 [2] RING-TORIC
26 267-6799 [1] CARRIER-PLANETARY
27 267-6800 [1] GEAR-COUPLING
28 267-6863 B [1] SHIM (0.75-MM THK)
  267-6864 B [1] SHIM (0.85-MM THK)
  267-6865 B [1] SHIM (0.9-MM THK)
  267-6866 B [1] SHIM (0.95-MM THK)
  267-6867 B [1] SHIM (1.2-MM THK)
  267-6868 B [1] SHIM (1.4-MM THK)
  267-6869 B [1] SHIM (1.8-MM THK)
  267-6870 B [1] SHIM (2-MM THK)
  267-6871 B [1] SHIM (2.3-MM THK)
37 267-6879 [1] HOUSING (SPROCKET)
38 333-2916 [3] BEARING AS
39 333-2917 [6] BEARING AS
40 333-2915 [3] BEARING AS
41 452-3517 [1] HOUSING-MOTOR
42 509-1886 [1] COUPLING
43 093-1731 [2] RING-RETAINING
44 095-0891 [6] PIN-SPRING
45 096-0433 [3] RING-RETAINING
46 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
47 171-9298 [1] SEAL-O-RING
48 179-8733 M [16] BOLT (M20X2.5X170-MM)
49 3E-2338 [2] PLUG-PIPE
50 7M-8485 [2] SEAL-O-RING
51 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
52 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)
53 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
54 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
55 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART



267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive 0




267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive 1

267-6879 1291169 1695586 2276117 Housing E322C 324D E326D Final Drive 2









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
