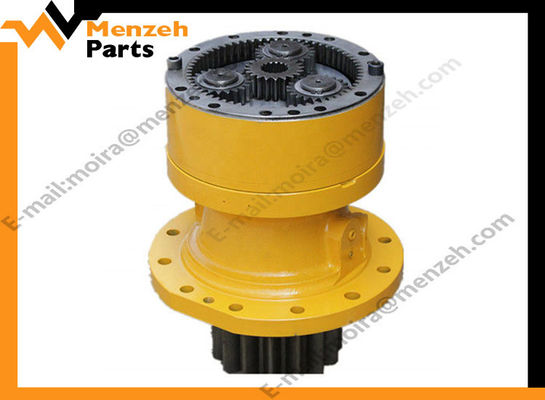

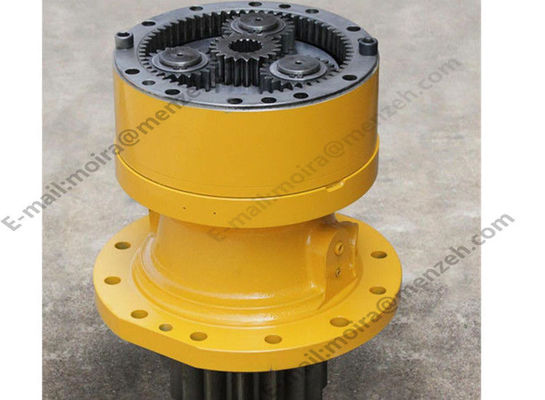

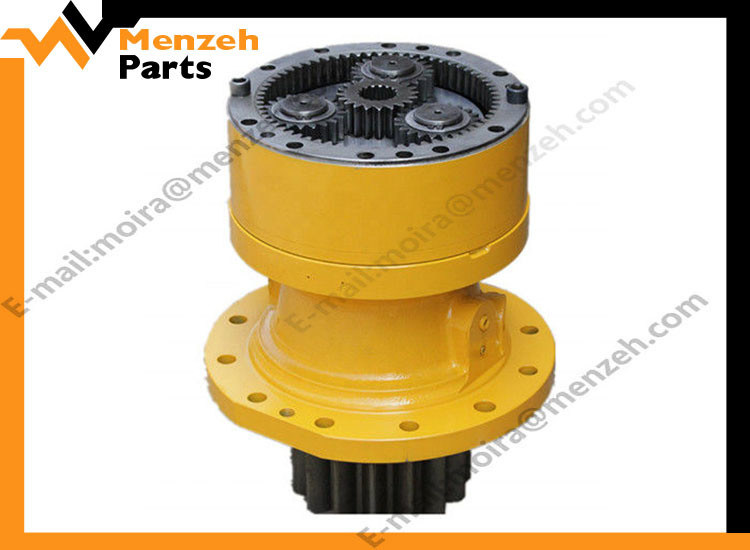

31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box

31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box

  • 31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box
  • 31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box
31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 31QB-10140 R450LC-7 R480LC-9 R500LC-7 R520LC-9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: 31QB-10140
Used For: R450LC-7 R480LC-9 R500LC-7 R520LC-9 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

31QB-10140 Excavator Swing Gearbox

,

R480LC-9 Excavator Swing Gearbox

,

R520LC-9 Reduction Gear Box

31QB-10140 R450LC-7 R480LC-9 R500LC-7 R520LC-9 Swing Gearbox Reduction Gear Box



Part Name swing gearbox
Part No. 31QB-10140
Used For R450LC-7 R480LC-9 R500LC-7 R520LC-9
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4105
*-2. 31QB-10140 [1] SWING REDUCTION GEAR
1 XKAQ-00637 [1] CASING
2 XKAQ-00752 [1] SHAFT-DRIVE
2 XKAQ-00645 [1] SHAFT-DRIVE
3 XKAQ-00026 [1] BEARING-ROLLER
4 XKAQ-00032 [1] SEAL-OIL
5 XKAQ-00029 [1] BEARING-ROLLER
5 XKAQ-00647 [1] BEARING-ROLLER
5 XKAQ-00961 [1] BEARING-ROLLER
6 XKAQ-00753 [1] CARRIER ASSY 2
7 XKAQ-00075 [1] CARRIER 2
8 XKAQ-00023 [3] GEAR-PLANET 2
9 XKAQ-00643 [3] PIN ASSY 2
10 XKAQ-00070 [1] PIN 2 INCL 11
N11. XKAQ-00291 [1] BUSHING 2
12 XKAQ-00644 [6] WASHER-THRUST
13 XKAQ-00048 [6] PIN-SPRING
14 XKAQ-00754 [1] CARRIER ASSY 1
15 XKAQ-00531 [1] CARRIER 1
16 XKAQ-00646 [3] GEAR-PLANET 1
17 XKAQ-00415 [3] PIN 1
18 XKAQ-00030 [3] CAGE-NEEDLE
19 XKAQ-00417 [3] PLATE 1-SIDE
20 XKAQ-00416 [3] PLATE 2-SIDE
21 XKAQ-00041 [3] RING-STOP
22 XKAQ-00755 [1] GEAR-SUN 2
23 XKAQ-00648 [1] GEAR-SUN 1
24 XKAQ-00534 [1] PLATE-SIDE 3
25 XKAQ-00649 [1] GEAR-RING
25 XKAQ-00779 [1] GEAR-RING
26 XKAQ-00072 [2] PIN-KNOCK
27 XKAQ-00404 [1] PLATE-THRUST
28 XKAQ-00074 [1] RING-STOP
29 XKAQ-00287 [1] GEAR-PINION OLD
29 XKAQ-00978 [1] GEAR-PINION NEW
30 XKAQ-00018 [1] SPACER
31 XKAQ-00031 [1] PLATE-COVER
32 XKAQ-00064 [8] BOLT-HEX
33 XKAQ-00043 [1] PLATE-LOCK
34 XKAQ-00042 [2] BOLT-HEX
35 XKAQ-00044 [1] WASHER-LOCK
36 XKAQ-00065 [12] BOLT-SOCKET
37 XKAQ-00049 [1] PLUG
38 XKAQ-00274 [2] PLUG



31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box 0



31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box 1



31QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box 231QB-10140 Excavator Swing Gearbox R450LC-7 R480LC-9 R500LC-7 R520LC-9 Reduction Gear Box 3









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
