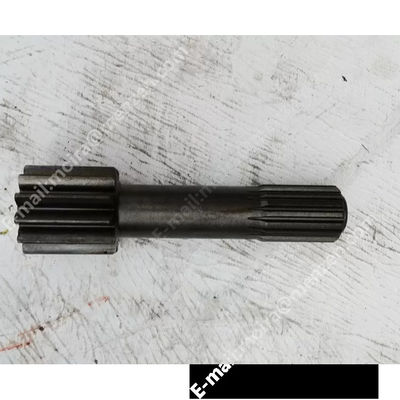

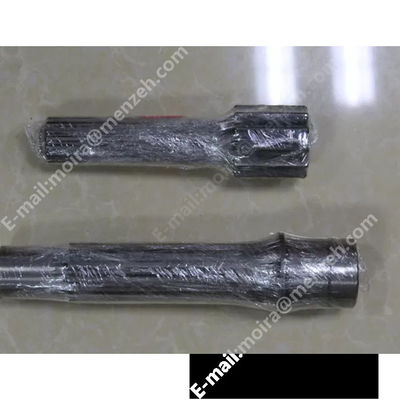

 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674

 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674

  •  E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
  •  E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
  •  E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
  •  E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
  •  E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 165-5864 2291077 1R5846 5I7674 E311C E312D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: 2nd Sun Shaft Part No.: 165-5864 2291077 1R5846 5I7674
Used For: E311C E312D Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

E312D Travel Gearbox 2nd Sun Shaft

,

5I7674 Travel Gearbox 2nd Sun Shaft

,

165-5864 2nd Sun Shaft

165-5864 2291077 1R5846 5I7674 E311C E312D Planetary Gear Parts Travel Gearbox 2nd Sun Gear Sun Shaft

Part Name 2nd Sun Shaft
Part No. 165-5864 2291077 1R5846 5I7674
Used For E311C E312D
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
1 094-0580 [1] PLATE (10-MM THK)
2 165-5854 M [1] RING-LOCKING
3 165-5855 [4] BEARING
4 165-5856 [4] GEAR (37-TEETH)
5 165-5857 [4] RACE
6 165-5859 [3] RACE
7 165-5860 [1] COVER
8 307-9371 [1] CARRIER
9 165-5864 [1] GEAR-SUN (17-TEETH)
10 332-7486 [1] PLATE
11 165-5866 [1] RING
12 165-5867 [1] GEAR (19-TEETH)
13 165-5868 [1] HOUSING
14 332-7487 [1] PLATE
15 191-0862 [1] PLATE-LOCK
16 204-1086 [4] PLATE
17 218-4246 [3] GEAR-PLANETARY (40-TEETH)
18 218-4247 [2] BEARING
19 310-4980 [1] SEAL GP-DUO-CONE
20 278-1980 [3] BEARING-CAGED
21 3E-2338 [2] PLUG-PIPE
22 6V-7726 M [4] SCREW-HEX SOCKET (M10X1.5X25-MM)
23 7M-8485 [2] SEAL-O-RING
24 8T-1158 M [16] BOLT-SOCKET HEAD (M8X1.25X20-MM)
25 8T-4136 M [1] BOLT (M10X1.5X25-MM)
26 8T-4185 M [3] BOLT (M10X1.5X50-MM)
27 1U-8846 B   SEALANT-GASKET
28 9X-2027 [1] WASHER (11X18X2-MM THK)
  B   USE AS REQUIRED
  M   METRIC PART

 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 0





 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 1

 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 2 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 3 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 4 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 5 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 6











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 7 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 8 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 9 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 10 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 11 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 12

 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 13 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 14 E311C E312D Travel Gearbox 2nd Sun Gear Sun Shaft 165-5864 2291077 1R5846 5I7674 15
