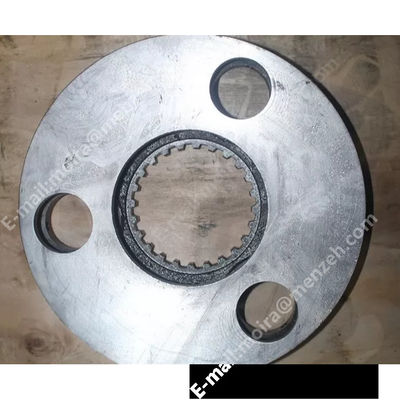

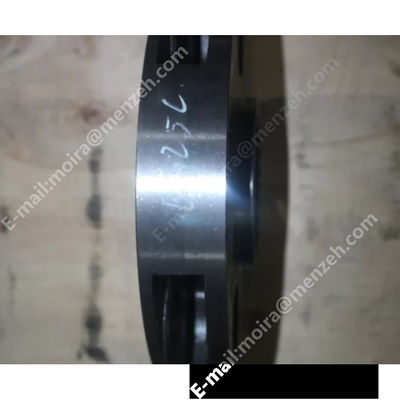

E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799

E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799

  • E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799
  • E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799
  • E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799
  • E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799
E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 191-2571 7Y1432 1912686 2676799 E324DL E320C E325D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Holder Part Number: 191-2571 7Y1432 1912686 2676799
Used For: E324DL E320C E325D Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

E325D Excavator Travel Gearbox

,

191-2571 Excavator Travel Gearbox

,

2676799 Excavator Travel Gearbox

191-2571 7Y1432 1912686 2676799 E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder

Part Name Holder
Part No. 191-2571 7Y1432 1912686 2676799
Used For E324DL E320C E325D
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 169-5586 [1] HOUSING-MOTOR
2 207-1571 [1] SEAL GP-DUO-CONE
2A. 163-7373 [2] RING-TORIC
3 168-8452 [2] BALL BEARING
4 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
5 169-5596 [1] STOP
6 171-9298 [1] SEAL-O-RING
7 191-2676 [1] GEAR-RING (72-TEETH)
8 169-5599 [1] CARRIER-PLANETARY
9 169-5590 [1] GEAR-SUN (24-TEETH)
10 191-2571 [1] CARRIER-PLANETARY
11 171-9387 [1] GEAR-RING (64-TEETH)
12 7M-8485 [2] SEAL-O-RING
13 3E-2338 [2] PLUG-PIPE
14 191-2686 [1] CARRIER AS
14A. 191-2687 [3] RACE-BEARING
15 093-1731 [2] RING-RETAINING
16 169-5589 [1] GEAR-SUN (24-TEETH)
17 094-0578 [1] PLATE (8-MM THK)
18 094-0579 [1] PLATE (9-MM THK)
19 094-0580 [1] PLATE (10-MM THK)
20 191-2683 [1] GEAR-SUN (20-TEETH)
21 191-2684 [3] GEAR-PLANETARY (21-TEETH)
22 096-0433 [3] RING-RETAINING
23 191-2689 [3] WASHER (34X70X1-MM THK)
24 191-2685 [3] BEARING AS
25 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
26 179-8733 M [16] BOLT (M20X2.5X170-MM)
27 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)
28 199-4503 [1] COVER
29 1U-8846 B   SEALANT-GASKET
31 191-2570 [6] BEARING AS (CAGED ROLLER)
32 169-5601 [3] SHAFT-PLANETARY
33 169-5592 [3] GEAR-PLANETARY (23-TEETH)
34 094-1528 [12] WASHER (53X84X1-MM THK)
35 095-0891 [6] PIN-SPRING
36 169-5593 [3] GEAR-PLANETARY (23-TEETH)
37 191-2569 [3] BEARING AS (CAGED ROLLER)
38 169-5602 [3] SHAFT-PLANETARY
39 169-5585 [1] HOUSING
40 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
41 191-2690 [3] WASHER (42.3X70X1-MM THK)
  B   USE AS REQUIRED
  M   METRIC PART





E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799 0

E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799 1

E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799 2E324DL E320C E325D Excavator Travel Gearbox 2nd Planetary Holder 191-2571 7Y1432 1912686 2676799 3











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
