Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | 31E6-12040 39Q4-12100 31E6-12030 91E1-28070 31E6-12020 R130-3 R140-9 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden Case |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Swing Gearbox | Part Number: | 31E6-12040 39Q4-12100 31E6-12030 91E1-28070 31E6-12020 |
|---|---|---|---|
| Used For: | R130-3 R140-9 | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR Shipping |
| Port: | Huangpu Guangzhou | After Warranty: | Video Technical Support Online Support Spare Parts |
| High Light: | R140-9 Swing Gearbox,31E6-12020 Swing Gearbox,31E6-12030 Swing Gearbox |
||

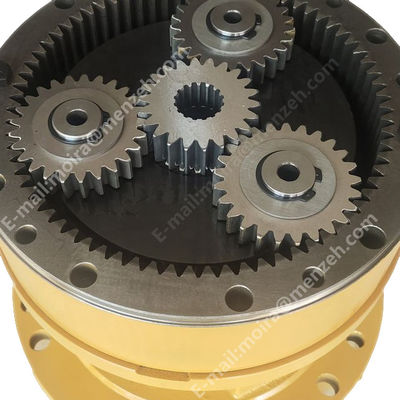

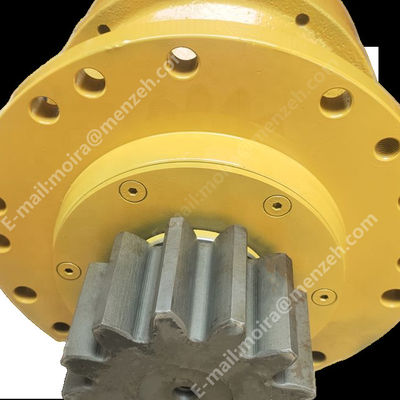

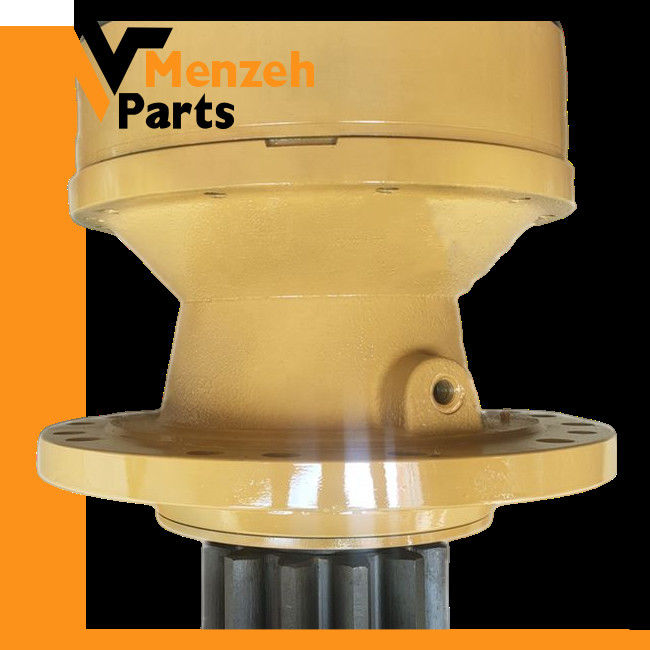

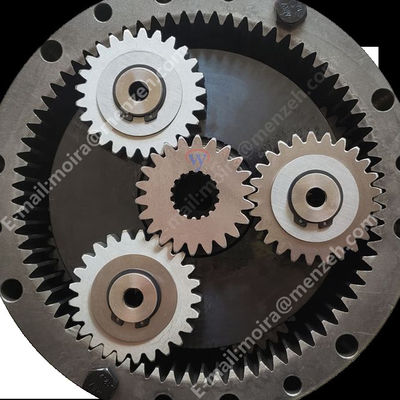

31E6-12040 39Q4-12100 31E6-12030 91E1-28070 31E6-12020 R130-3 R140-9 Swing Reduction Drive Swing Gearbox
| Part Name | Swing Gearbox |
| Part No. | 31E6-12040 39Q4-12100 31E6-12030 91E1-28070 31E6-12020 |
| Used For | R130-3 R140-9 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | 31E6-12040 | [1] | SWING MOTOR ASSY | SEE 2110 |
| *-1. | 31E6-12020 | [1] | SWING MOTOR UNIT | |
| 101 | 115347B | [1] | SHAFT-DRIVE | |
| 106 | 115349 | [3] | SPACER | |
| 111 | 115355B | [1] | BLOCK-CYLINDER | |
| 113 | 122233B | [1] | BUSHING-SPHERICAL | |
| 114 | 214440A | [1] | SPRING-CYLINDER | |
| 116 | 214439A | [12] | ROD-PUSH | |
| 117 | 115353 | [2] | SPACER | |
| N121. | 115362 | [9] | PISTON | |
| N122. | 115363A | [9] | SHOE | |
| 123 | 137131 | [1] | RETAINER | |
| 124 | 115351B | [1] | PLATE-SHOE | |
| 131 | 115359A | [1] | PLATE-VALVE | |
| 301 | 119700C | [1] | CASING | |
| 303 | 115360B | [1] | CASING-VALVE | |
| 304 | 115348 | [1] | COVER-FRONT | |
| 351 | 115361 | [2] | PLUNGER | |
| 355 | 214444A | [2] | SPRING | |
| 401 | 200716 | [4] | BOLT-SOCKET | |
| 432 | 202604 | [2] | RING-SNAP | |
| 433 | 115350 | [1] | RING-SNAP | |
| 437 | 202584 | [1] | RING-SNAP | |
| 438 | 202574 | [1] | RING-SNAP | |
| 443 | 225679 | [1] | BEARING-ROLLER | |
| 444 | 225678 | [1] | BEARING-ROLLER | |
| 451 | 214442 | [2] | PIN-SPRING | |
| 464 | 108844 | [1] | PLUG | |
| 468 | 108844 | [2] | PLUG | |
| 469 | 108889 | [2] | PLUG | |
| K471. | 206594 | [1] | O-RING | |
| K472. | 214443 | [1] | O-RING | |
| K485. | 201689 | [1] | O-RING | |
| K487. | 201689 | [2] | O-RING | |
| K488. | 201713 | [2] | O-RING | |
| K491. | 214436 | [1] | SEAL-OIL | |
| 702 | 115358 | [1] | BRAKE-PISTON | |
| K706. | 214434 | [1] | O-RING | |
| K707. | 214435 | [1] | O-RING | |
| 712 | 214445A | [20] | SPRING-BRAKE | |
| 742 | 129468 | [3] | PLATE-FRICTION | |
| 743 | 117975 | [4] | PLATE-SEPARATION | |
| 992 | 208287 | [1] | PLUG | |
| 993 | 206699 | [1] | PLUG | |
| 51 | 233457 | [2] | VALVE-RELIEF | |
| 31 | 717022 | [1] | VALVE-BRAKE | |
| 744 | 220497 | [2] | PLUG-DUST | |
| 745 | 220493 | [1] | PLUG-DUST | |
| 746 | 220495 | [1] | PLUG-DUST | |
| 841 | 232214 | [2] | BOLT-SOCKET | |
| *-2. | 31E6-12030 | [1] | SWING REDUCTION GEAR | SEE 2113 |
| K. | 707816 | [1] | SEAL KIT |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
