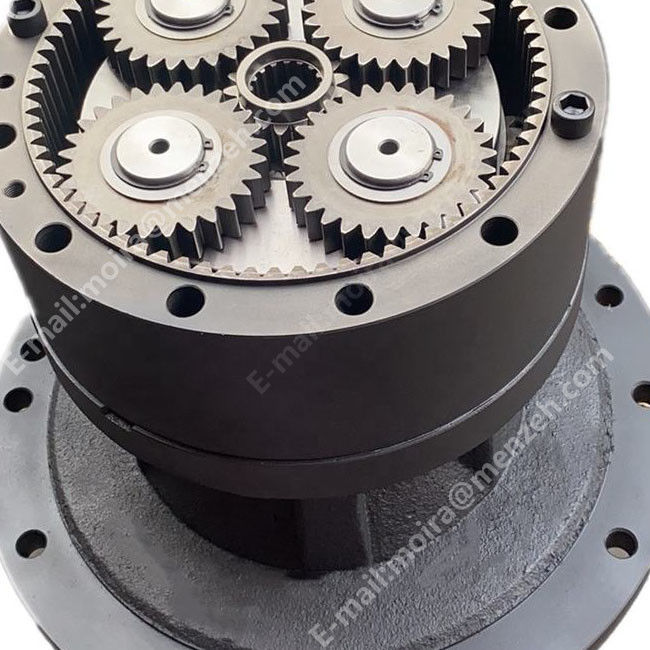

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox

  • 31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox
31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: 31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123
Used For: R290 R330 R320 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

R320 Excavator Swing Reduction Gearbox

,

R330 Excavator Swing Reduction Gearbox

,

31Q8-10142 Excavator Swing Gearbox

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox



Part Name Swing Gearbox
Part No. 31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123
Used For R290 R330 R320
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4100
N*-2. 31E9-01050 [1] SWING REDUCTION GEAR SB-I-2008-008.PDF
N*-2. 31E9-01051 [1] SWING REDUCTION GEAR SB-I-2008-008.PDF
N*-2. 31E9-01052 [1] SWING REDUCTION GEAR SB-I-2008-008.PDF
N1. XKAQ-00063 [1] CASING-FRONT
1 XKAQ-00112 [1] CASING-FRONT
1 XKAQ-00141 [1] CASING-FRONT
1 XKAQ-00279 [1] CASING-FRONT
1 XKAQ-00329 [1] CASING-FRONT
2 XKAQ-00003 [1] CASING-MIDDLE
3 XKAQ-00004 [1] SHAFT-DRIVE
3 XKAQ-00328 [1] SHAFT-DRIVE
4 XKAQ-00006 [1] GEAR-RING 2
5 XKAQ-00022 [3] GEAR-PLANET 2
6 XKAQ-00062 [1] GEAR-2 SUN
6 XKAQ-00012 [1] GEAR-2 SUN
7 XKAQ-00008 [1] GEAR-RING 1
8 XKAQ-00024 [3] GEAR-PLANET 1
8 XKAQ-00137 [3] GEAR-PLANET 1
9 XKAQ-00009 [1] GEAR-1 SUN
9 XKAQ-00061 [1] GEAR-1 SUN
10 XKAQ-00016 [1] CARRIER
*-1. XKAQ-00021 [3] PIN ASSY NO.2
N11. XKAQ-00060 [3] PIN ASSY-2
N32. XKAQ-00046 [3] BUSHING 2
12 XKAQ-00059 [6] WASHER-THRUST
13 XKAQ-00058 [1] BUTTON-THRUST
14 XKAQ-00019 [3] PIN 1
14 XKAQ-00136 [3] PIN ASSY 1 INC NEEDLE CAGE
15 XKAQ-00057 [3] PLATE-SIDE 1
16 XKAQ-00056 [4] MAGNET
17 XKAQ-00055 [1] PLATE-SIDE 3
18 XKAQ-00054 [1] BAR-GAUGE
18 XKAQ-00034 [1] BAR-GAUGE
19 XKAQ-00035 [1] PIPE-GAUGE
20 XKAQ-00017 [1] RING-SPACER
20 XKAQ-00111 [1] RING-SPACER
21 XKAQ-00053 [4] PIN-KNOCK
21 XKAQ-00053 [2] PIN-KNOCK
22 XKAQ-00028 [1] BEARING-ROLLER
23 XKAQ-00027 [1] BEARING-ROLLER
24 XKAQ-00030 [3] CAGE-NEEDLE
25 XKAQ-00052 [16] BOLT-SOCKET
26 XKAQ-00051 [12] BOLT-SOCKET
27 XKAQ-00033 [1] SEAL-OIL
27 XKAQ-00138 [1] SEAL-OIL
27 XKAQ-00280 [1] SEAL-OIL
27 XKAQ-00330 [1] SEAL-OIL
28 XKAQ-00050 [3] PIN-SPRING
29 XKAQ-00049 [1] PLUG
30 XKAQ-00048 [3] PIN-SPRING
31 XKAQ-00047 [1] RING-STOP
33 XKAQ-00045 [1] RING-STOP
34 XKAQ-00044 [2] WASHER-LOCK
34 XKAQ-00292 [1] WASHER-LOCK
35 XKAQ-00013 [1] GEAR-PINION
36 XKAQ-00043 [1] PLATE-LOCK
36 XKAQ-00296 [1] PLATE-LOCK
37 XKAQ-00042 [4] BOLT-HEX
37 XKAQ-00042 [2] BOLT-HEX
38 XKAQ-00041 [3] RING-STOP
39 XKAQ-00040 [3] PLATE-SIDE 2
40 XKAQ-00109 [1] CIRCLIP
41 XKAQ-00110 [1] V-SEAL
42 XKAQ-00143 [1] POST-AIR BREATHER
N. @ [1] NOT SUPPLIED PARTS

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox 0



31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox 1

31E9-01050 31N8-12010 31Q9-19140 XKAH-01597 31Q8-10142 31N8-10123 R290 R330 R320 Excavator Swing Reduction Gearbox 2











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
