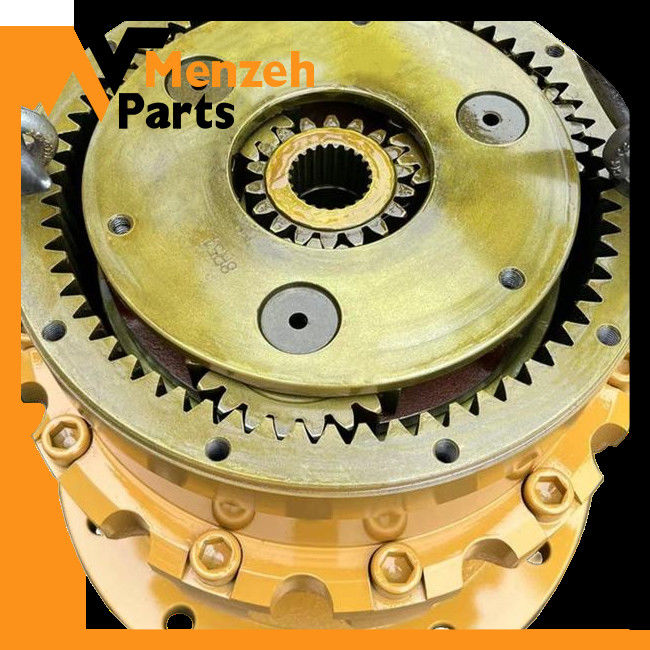

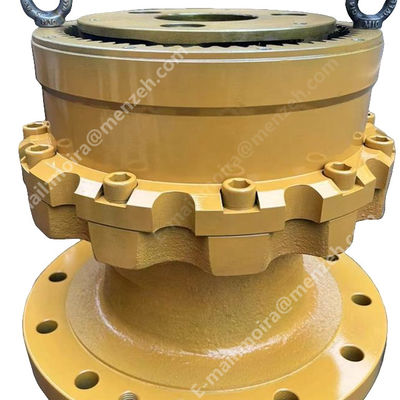

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152 R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152 R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox

  • 39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox
  • 39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox
39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152 R220-9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: 39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152
Used For: R220-9 Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light:

R220-9 Swing Gearbox

,

38Q6-10152 Swing Gearbox

,

39Q6-12100 Swing Gearbox

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152 R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox



Part Name Swing Gearbox
Part No. 39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152
Used For R220-9
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4115
*-2. 39Q6-12100 [1] SWING REDUCTION GEAR HYMS
*-2. 39Q6-12101 [1] SWING REDUCTION GEAR HYMS
*-2. 39Q6-12102 [1] SWING REDUCTION GEAR HYMS
1 39Q6-12110 [1] GEAR-RING
2 39Q6-12121 [1] SHAFT-DRIVE
3 39Q6-12130 [1] BEARING-TAPER.MAIN
4 39Q6-12140 [1] BEARING-TAPER
5 39Q6-12150 [1] NUT-RING
6 39Q6-12161 [1] PLATE-LOCK
7 S017-120166 [4] BOLT-HEX
8 39Q6-12171 [1] CASING
8 39Q6-12172 [1] CASING
9 S109-100306 [10] BOLT-SOCKET
10 39Q6-12190 [1] CARRIER 2
11 39Q6-12200 [3] GEAR-PLANETARY 2
12 39Q6-12210 [6] BEARING-NEEDLE 2
13 39Q6-12220 [6] WASHER-THRUST 2
14 39Q6-12230 [3] PIN-CARRIER 2
15 S472-800364 [3] PIN-SPRING
16 39Q6-12240 [1] GEAR-SUN 2
17 39Q6-12260 [1] CARRIER 1
18 39Q6-12271 [3] GEAR-PLANETARY 1
19 39Q6-12280 [3] BEARING-NEEDLE 1
20 39Q6-12290 [3] WASHER-THRUST 1,UPP
21 39Q6-12300 [3] WASHER-THRUST 1,LOW
22 39Q6-12310 [3] PIN-CARRIER 1
23 S472-600364 [3] PIN-SPRING
24 39Q6-12320 [1] GEAR-SUN 1
25 39Q6-12330 [2] PLATE-THRUST
26 39Q6-12340 [1] SLEEVE
27 S631-120001 [1] O-RING
28 39Q6-12350 [1] SEAL-OIL
29 39Q6-41450 [2] PIN-PARALLEL
30 S109-16045D [12] BOLT-SOCKET
31 39Q6-12360 [1] NAME PLATE
31 39Q6-12361 [1] NAME PLATE
31 39Q6-12362 [1] NAME PLATE
32 39Q6-41800 [2] RIVET
33 P220-430204 [1] PLUG-HEX
*-1. @ [1] SWING MOTOR UNIT SEE 4115
K1. 39Q6-12180 [1] CARRIER ASSY KIT 1 SEE ILLUST
K2. 39Q6-12250 [1] CARRIER ASSY KIT 2 SEE ILLUST



39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 0

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 1

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 239Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 3




FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

39Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 439Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 539Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 639Q6-12100 31N6-10210 39Q6-10161 38Q6-10152  R220-9 Swing Gearbox Swing Planetary Gear Swing Reduction Gearbox 7
