Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | 9148921 2028036 4486217 2031003 2031108 EX100-5 EX120-5 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Swing Gearbox | Part Number: | 9148921 2028036 4486217 2031003 2031108 |
|---|---|---|---|
| Used For: | EX100-5 EX120-5 | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR Shipping |
| Port: | Huangpu Guangzhou | After Warranty: | Video Technical Support Online Support Spare Parts |
| High Light: | EX120-5 Swing Device,2031003 Swing Device,9148921 Swing Device |
||

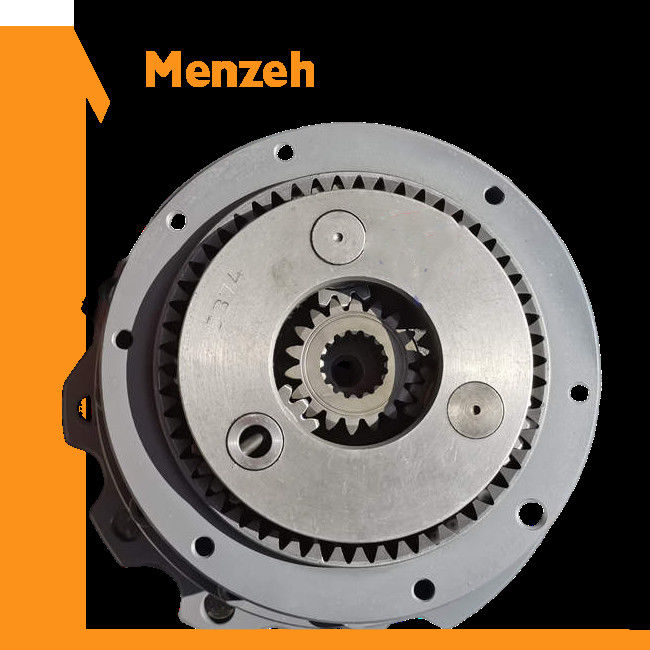

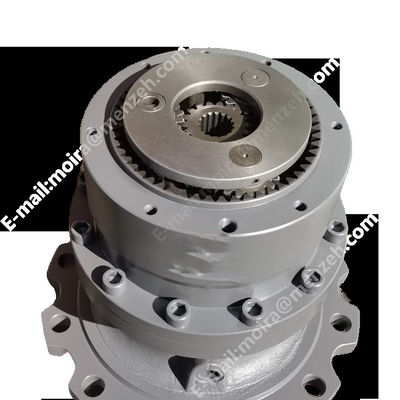

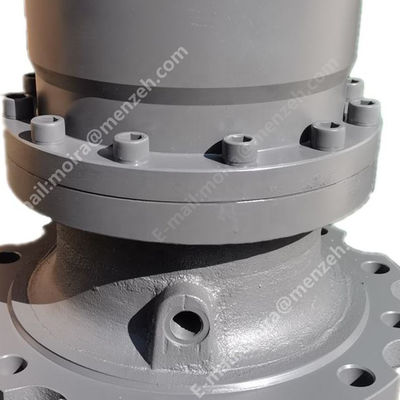

9148921 2028036 4486217 2031003 2031108 EX100-5 EX120-5 Swing Device Without Motor Slew Gearbox
| Part Name | Swing Gearbox |
| Part No. | 9148921 2028036 2031003 2031108 |
| Used For | EX100-5 EX120-5 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 2028036 | [1] | SHAFT;PROP. | |
| 1 | 2036830 | [1] | SHAFT;PROP. | Y 2028036 |
| 2 | 4244693 | [1] | SLEEVE | |
| 3 | A811100 | [1] | O-RING | |
| 4 | 4248609 | [1] | BRG.;SPH.ROL. | |
| 6 | 4244691 | [1] | SEAL;OIL | |
| 7 | 4247567 | [1] | O-RING | |
| 8 | 3058620 | [1] | COVER | |
| 9 | 1020380 | [1] | HOUSING | |
| 11 | J011035 | [8] | BOLT;SEMS | |
| 12 | 4293424 | [1] | BRG.;SPH.ROL. | |
| 13 | 991350 | [1] | RING;RETAINING | |
| 14 | 2036804 | [1] | CARRIER | |
| 16 | 4258089 | [1] | PLATE;THRUST | |
| 17 | 9742788 | [3] | GEAR;PLANETARY | |
| 18 | 4266255 | [6] | PLATE;THRUST | |
| 19 | 4337638 | [3] | PIN | |
| 21 | 4116308 | [6] | PIN;SPRING | |
| 22 | 2036811 | [1] | GEAR;RING | |
| 23 | M341440 | [12] | BOLT;SOCKET | |
| 24 | 3069697 | [1] | GEAR;SUN | |
| 25 | 3069725 | [3] | GEAR;PLANETARY | |
| 26 | 2036832 | [1] | CARRIER | |
| 27 | 4176070 | [1] | PLATE;THRUST | |
| 29 | 4269480 | [6] | PLATE;THRUST | |
| 30 | 4330377 | [3] | BRG.;NEEDLE | |
| 32 | 4337637 | [3] | PIN | |
| 35 | 3069727 | [1] | GEAR;SUN | |
| 36 | 8050210 | [1] | PIPE | |
| 37 | 94-2012 | [1] | PLUG | |
| 60 | 8065302 | [1] | COVER(for transportation) | |
| 61 | J011050 | [8] | BOLT;SEMS(for transportation) | |
| 62 | 94-2011 | [1] | PLUG(for transportation) | |
| 100 | 4330218 | [1] | MOTOR;OIL | |
| 102 | 927488 | [1] | RING;RETAINING | |
| 104 | 4264452 | [1] | PIPE | |
| 106 | 4255227 | [1] | PIPE | |
| 107 | 4298608 | [1] | CAP | |
| 108 | 3053093 | [1] | NAME-PLATE | |
| 109 | M492564 | [2] | SCREW;DRIVE | |
| 110 | M341025 | [7] | BOLT;SOCKET | |
| 111 | 3074223 | [1] | GAUGE;LEVEL | |
| 200 | 9148921 | [1] | SWING DEVICE(WITHOUT MOTOR) |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Contact Person: Miss. Moira
Tel: 86-15811713569
