Home ProductsExcavator Swing Gearbox

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box

  • YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box
  • YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box
YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008
Used For: SK200-8 SK210-8 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
Highlight:

SK210-8 Reduction Gear Box

,

YN15V00037S007 Reduction Gear Box

,

YN32W00019F1 Reduction Gear Box

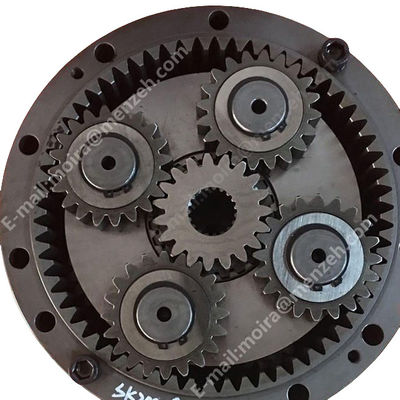

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box

Part Name Swing Gearbox
Part No. YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008
Used For SK200-8 SK210-8
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
. . YN32W00019F1 [1] GEAR REDUCTION UNIT SM Reduction Assy (Swing) Superseded by part number: YN32W00022F2
1 YN32W01051P1 [1] SHAFT SM
2 YN32W01052P1 [1] GEAR SM Sun
3 YN32W01053P1 [3] GEAR SM Pinion
4 YN32W01054P1 [1] GEAR SM Sun
5 YN32W01055P1 [4] GEAR SM Pinion
6 YN32W01056P1 [1] RING GEAR SM
7 YN32W01057F1 [1] CARRIER SM Spider Assy
7-1. YN32W01009P1 [1]
7-2. YN32W01066P1 [3] SHAFT KOB
8 YN32W01058P1 [1] CARRIER,Housing, Spider SM Spider
9 YN32W01067P1 [4] SHAFT SM
10 YN32W01030P1 [1] SPHERICAL BEARING KOB Spherical Superseded by part number: 25Z804D18
11 YN32W01029P1 [1] SPHERICAL BEARING KOB Spherical Superseded by part number: R25P0047D9
12 YN32W01060P1 [1] OIL SEAL SM Oil Seal
13 YN32W01104P1 [1] BOX SM Housing Superseded by part number: YN32W00022F2
15 YN32W01071P1 [6] WASHER SM Washer, Thrust
16 YN32W01073P1 [3] NEEDLE BEARING SM Needle
17 YN32W01072P1 [4] NEEDLE BEARING SM Needle
18 YN32W01063P1 [8] WASHER SM Thrust
19 ZR16X03500 [1] RING KOB Retaining
20 ZR16X09000 [1] RING KOB Retaining
21 YN32W01082P1 [1] SLEEVE SM
22 ZP26D08025 [4] PIN KOB Spring
23 HS23C14135G1 [11] SCREW,M14 x 135mm SM Cap
24 PV02B01073D8 [2] CAP KOB
25 YN32W01080D1 [1] RIGID TUBE SM
26 ZG31U08000 [1] HYD CONNECTOR SM Elbow
27 ZE82T08000 [1] PLUG KOB
28 ZR16X04000 [3] RING KOB Retaining
30 YN32W01081P1 [1] OIL SEAL SM Oil Seal
31 ZG91V02000 [1] LUBE NIPPLE,67 Degree x 1/8" PT KOB 67° x 1/8" PT Superseded by part number: 72283072
32 2444Z3305 [1] BREATHER KOB Valve, Relief

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 0



YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 1

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 2YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 3











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 4YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 5YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 6YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 7YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 8YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 9

YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 10YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 11YN32W00019F1 YN32W00022F2 YN32W01117P1 YN15V00037S007 YN15V00037S008 SK200-8 SK210-8 Reduction Gear Box 12
