Home ProductsExcavator Swing Gearbox

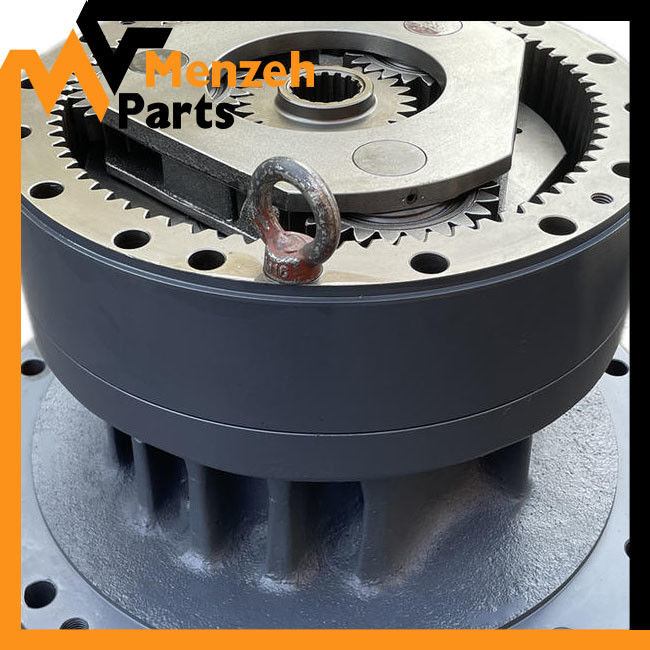

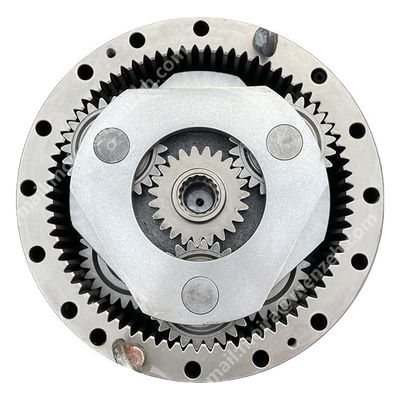

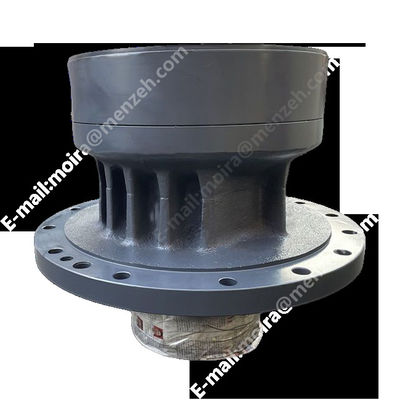

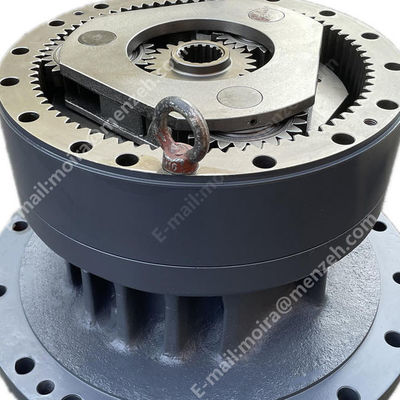

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox

  • VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox
  • VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox
  • VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox
  • VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox
VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760
Used For: EC210 EC140 Ec240 Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light:

Ec240 Swing Gear Box

,

EC210 Swing Gear Box

,

SA1132-00040 Planetary Gearbox

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox

Part Name Swing Gearbox
Part No. VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760
Used For EC210 EC140 Ec240
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  VOE7118-34100 [1] Gearbox
1 VOE7118-34200 [1] Carrier
2 SA1036-00530 [1] Crankshaft
3 SA7118-34221 [3] Planetary Gear
4 SA1036-00610 [3] Pin
5 SA7118-34231 [3] Pin
6 SA7118-34260 [3] Bushing
7 SA1036-00620 [6] Washer
8 SA9325-10012 [3] Spring pin
9 SA1036-00710 [1] Bearing
10 VOE14640028 [1] Bearing
11 SA1036-00630 [1] Knob
12 VOE14558605 [1] Seal
13 SA7118-01560 [1] Plate
14 SA7114-12590 [4] Screw
15 VOE7118-34330 [1] Gear
16 SA1036-00700 [4] Pin
17 SA7118-34340 [1] Casing
18 VOE7118-34350 [1] Gear
19 SA1036-00740 [16] Hex. socket screw
20 VOE14550896 [1] Carrier
21 SA7118-34410 [1] Carrier
22 SA7118-34420 [3] Planetary Gear
23 VOE14550897 [3] Pin
24 SA7118-34440 [3] Needle bearing
25 SA7118-34450 [3] Washer
26 SA7118-34460 [3] Washer
27 VOE13914468 [3] Snap ring
28 SA9325-08010 [3] Spring pin
29 SA7118-34470 [1] Gear
30 SA7118-34480 [1] Washer
31 SA7118-34490 [1] Sun gear
32 SA9016-21213 [8] Hex. socket screw
33 VOE7118-30620 [1] Pipe
34 SA9415-43042 [1] Plug
35   [1] Casing
36 SA9541-01085 [1] Retaining ring
100 VOE14530355 [1] Housing inc 15,16,35

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 0



VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 1

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 2VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 3VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 4VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 5








FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 6VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 7VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 8VOE7118-34100 VOE14621718 SA1132-00040 SA8230-24760 EC210 EC140 Ec240 Swing Gear Box Reducer Planetary Gearbox 9
