Home ProductsExcavator Swing Gearbox

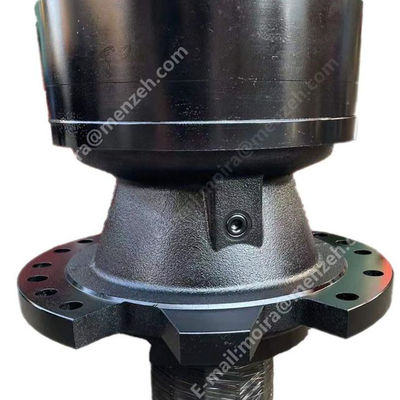

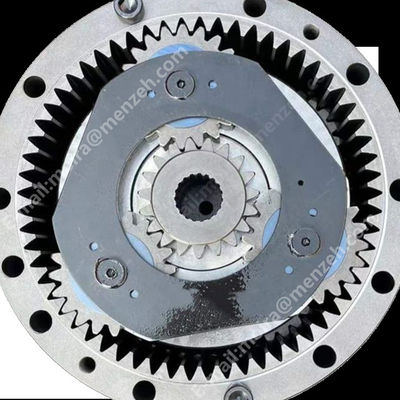

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy Swing Device Gearbox Parts

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy Swing Device Gearbox Parts

  • YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts
  • YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts
  • YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts
YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Swing Gearbox Part Number: YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007
Used For: SK210-9 SK230SR-3 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

YN32W01125P1 Swing Device

,

YN15V00037S005 Swing Device

,

SK230SR-3 Swing Device

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy Swing Device Gearbox Parts



Part Name Swing Gearbox
Part No. YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007
Used For SK210-9 SK230SR-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
1 YN32W01125P1 [1] GEAR SM Shaft
2 YN32W01136P1 [1] GEAR SM
3 YN32W01135P1 [3] GEAR SM Pinion
4 YN32W01126P1 [1] GEAR SM
5 YN32W01143P1 [4] GEAR SM
6 YN32W01127P1 [1] GEAR SM Ring
7 YN32W01123F1 [1] SPIDER KOB Gear, Incl 7-1 - 7-2
7-1. NSS [1] NOT SOLD SEPARAT CON Spider, Incl in 7
7-2. NSS [3] NOT SOLD SEPARAT CON Shaft, Incl in 7
8 YN32W01130P1 [1] PLANET CARRIER SM
9 YN32W01131P1 [4] SHAFT SM
10 YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
11 YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
12 YN32W01060P1 [1] OIL SEAL SM
13 YN32W01132P1 [1] BOX SM
14 YN32W01026P1 [3] THRUST WASHER KOB
15 YN32W01028P1 [3] THRUST WASHER KOB
16 YN32W01022P1 [102] ROLLER KOB
17 YN32W01072P1 [4] NEEDLE BEARING SM
18 YN32W01063P1 [8] WASHER SM
19 11068370 [1] SNAP RING MKT Retaining, ID 32.20 x OD 35 x Th 1.6mm Superseded by part number: 11068375
20 ZR16X09000 [1] RING KOB Retaining, ID 84.50 x OD 108 x 3.0mm
21 YN32W01133P1 [1] SLEEVE SM
22 72210023 [4] PIN SM Roll Superseded by part number: ZP26D08025
23 72210021 [11] SCREW,Hex Socket Head, M14 x 130mm SM Screw M14x2.0x135mm, (ZS23C14130) Superseded by part number: ZS23C14130
24 PV02B01073DB [2] CAP KOB 18.4mm Plastic
25 YN32W01080D5 [1] RIGID TUBE SM 1/2" PT x 112mm Long
26 ZG31U08000 [1] HYD CONNECTOR SM Elbow, 90° -- 1/2" PT
27 72210000 [1] PLUG SM 1/2" PT, (ZE82T08000) Superseded by part number: ZE82T08000
28 72211282 [3] SNAP RING SM Retaining, ID 37 x OD 40 x Th 1.8mm, (ZR16X04000) Superseded by part number: ZR16X04000
29 YN32W01081P1 [1] OIL SEAL SM
30 72283072 [1] LUBE NIPPLE,67 Degree x 1/8" PT IMO 67° x 1/8" PT, (ZG91V02000) Superseded by part number: ZG91V02000
31 72210250 [1] PLUG IMO 1/8"PT, (ZE82T02000) Superseded by part number: ZE82T02000

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 0





YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 1

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 2YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 3YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 5YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 6YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 7YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 8YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 9YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 10

YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 11YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 12YN32W01125P1 YN32W01132P1 YN15V00037S005 YN15V00037S007 SK210-9 SK230SR-3 Reduction Assy  Swing Device Gearbox Parts 13
