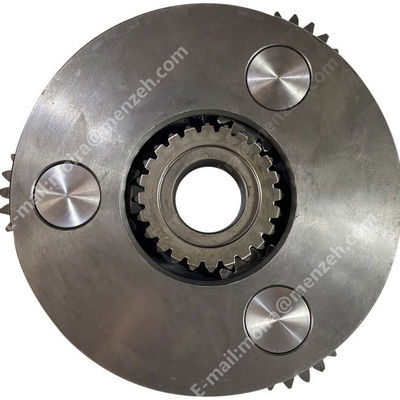

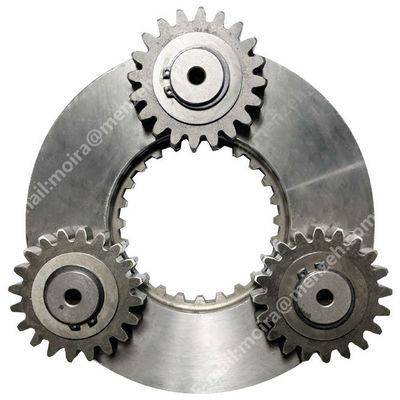

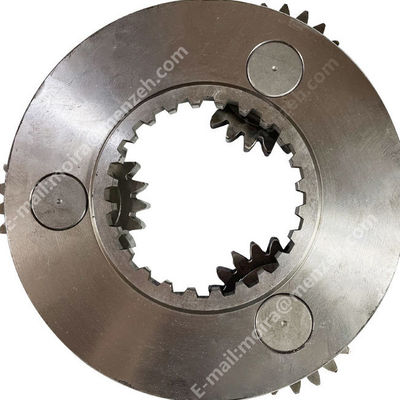

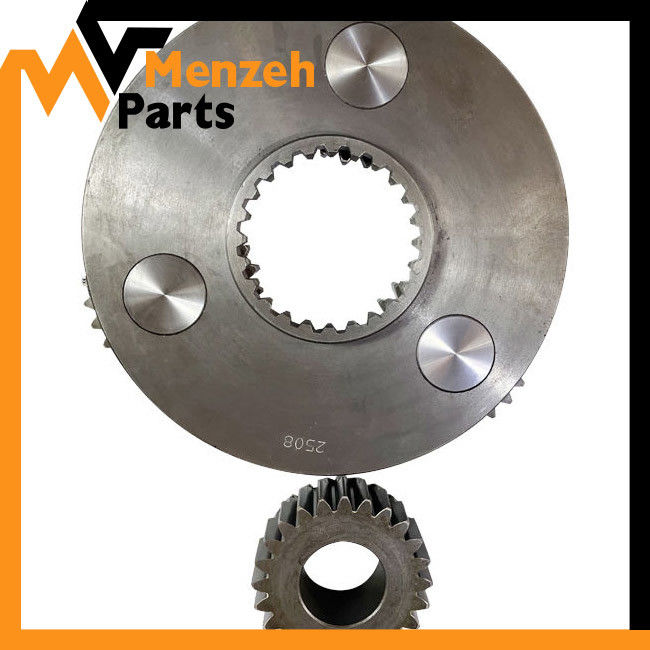

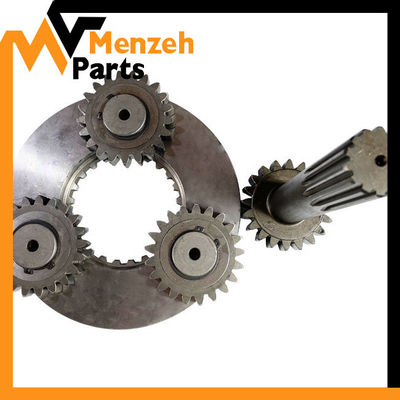

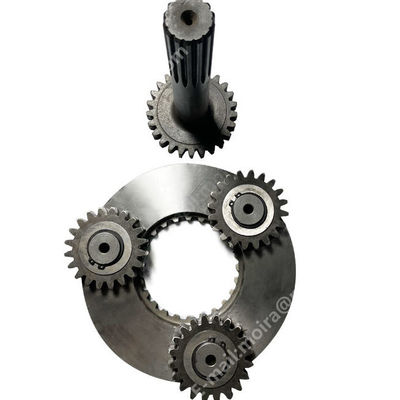

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy

  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
  • 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: 191-2686 191-2678 191-2571 1484637 2676799
Used For: E324 E325C E320C E320D Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

3rd Travel Carrier Assy

,

2676799 Travel Carrier Assy

,

E320D Travel Carrier Assy

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy For Gearbox Part Spider Assy

Part Name Carrier
Part No. 191-2686 191-2678 191-2571 1484637 2676799
Used For E324 E325C E320C E320D
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 7Y-0752 B [1] SHIM (0.8-MM THK)
  7Y-0753 B [1] SHIM (1-MM THK)
  7Y-0754 B [1] SHIM (1.6-MM THK)
4 094-0578 [1] PLATE (8-MM THK)
5 094-0579 [1] PLATE (9-MM THK)
6 094-0580 [1] PLATE (10-MM THK)
7 094-1528 [12] WASHER (53X84X1-MM THK)
8 114-1540 [4] PIN-DOWEL
9 169-5589 [1] GEAR-SUN (24-TEETH)
10 169-5590 [1] GEAR-SUN (24-TEETH)
11 169-5592 [3] GEAR-PLANETARY (23-TEETH)
12 169-5593 [3] GEAR-PLANETARY (23-TEETH)
13 169-5601 [3] SHAFT-PLANETARY
14 169-5602 [3] SHAFT-PLANETARY
15 171-9387 [1] GEAR-RING (64-TEETH)
16 191-2571 [1] CARRIER-PLANETARY
17 191-2676 [1] GEAR-RING (72-TEETH)
18 191-2683 [1] GEAR-SUN (20-TEETH)
19 191-2684 [3] GEAR-PLANETARY (21-TEETH)
20 191-2686 [1] CARRIER AS
  191-2687 [3] RACE-BEARING
21 191-2689 [3] WASHER (34X70X1-MM THK)
22 191-2690 [3] WASHER (42.3X70X1-MM THK)
23 199-4503 [1] COVER
24 207-1571 [1] SEAL GP-DUO-CONE
  214-3570 [2] RING-TORIC
25 267-6798 [1] HOUSING
26 267-6799 [1] CARRIER-PLANETARY
27 267-6800 [1] GEAR-COUPLING
28 267-6863 B [1] SHIM (0.75-MM THK)
  267-6864 B [1] SHIM (0.85-MM THK)
  267-6865 B [1] SHIM (0.9-MM THK)
  267-6866 B [1] SHIM (0.95-MM THK)
  267-6867 B [1] SHIM (1.2-MM THK)
  267-6868 B [1] SHIM (1.4-MM THK)
  267-6869 B [1] SHIM (1.8-MM THK)
  267-6870 B [1] SHIM (2-MM THK)
  267-6871 B [1] SHIM (2.3-MM THK)
37 296-6248 [3] BEARING AS-ROLLER
38 333-2914 [2] BALL BEARING
39 333-2916 [3] BEARING AS
40 333-2917 [6] BEARING AS
41 367-8276 [1] HOUSING-MOTOR
42 093-1731 [2] RING-RETAINING
43 095-0891 [6] PIN-SPRING
44 096-0433 [3] RING-RETAINING
45 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46 171-9298 [1] SEAL-O-RING
47 179-8733 M [16] BOLT (M20X2.5X170-MM)
48 3E-2338 [2] PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
49 7M-8485 [2] SEAL-O-RING
50 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
51 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
52 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
53 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)
54 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)

  1U-8846 BF   SEALANT-GASKET
  B   USE AS REQUIRED
  F   NOT SHOWN
  M   METRIC PART

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 0





191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 1

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 2191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 3191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 4191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 5191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 6













FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 7191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 8191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 9191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 10191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 11191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 12

191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 13191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 14191-2686 191-2678 191-2571 1484637 2676799 E324 E325C E320C E320D 1st 2nd 3rd Travel Carrier Assy 15
