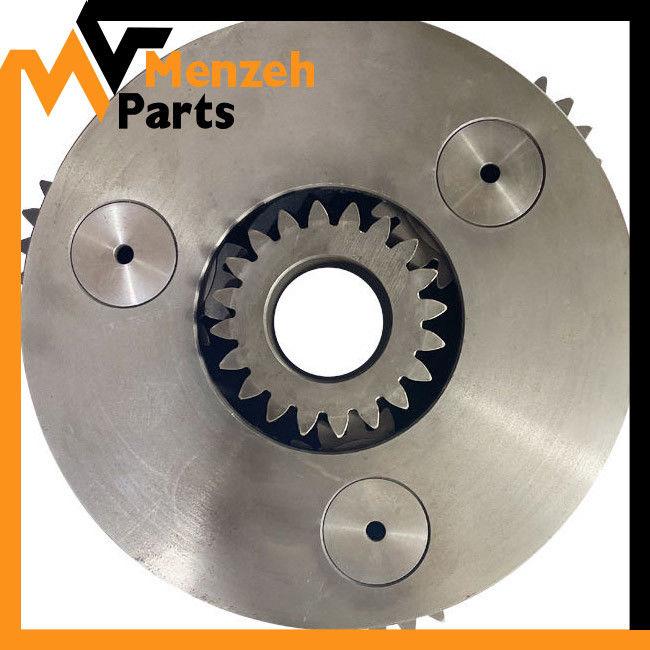

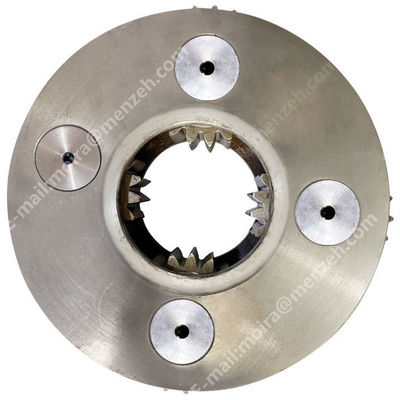

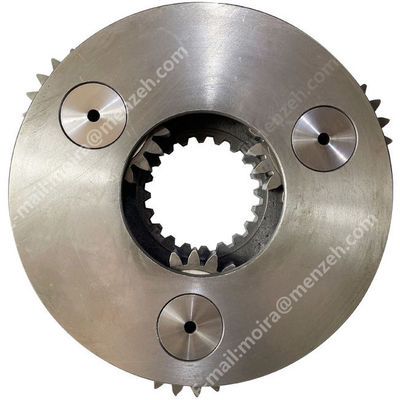

296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator Final Drive Planet Carrier Assy

296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator Final Drive Planet Carrier Assy

  • 296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy
  • 296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy
  • 296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy
296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: 296-6194 1912511 1484607 7Y0643 1994750
Used For: E336D E328D E336D Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

1994750 Spider Assy

,

E328D Spider Assy

,

296-6194 Planet Carrier Assy

296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator Final Drive Planet Carrier Assy

Part Name Carrier Assy
Part No. 296-6194 1912511 1484607 7Y0643 1994750
Used For E336D E328D E336D
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 094-0577 [1] PLATE (7-MM THK)
2 094-0578 [1] PLATE (8-MM THK)
3 094-0579 [1] PLATE (9-MM THK)
4 094-0580 [1] PLATE (10-MM THK)
5 136-2898 [14] WASHER (58.3X89X1-MM THK)
6 191-2690 [6] WASHER (42.3X70X1-MM THK)
7 227-6192 [1] GEAR-COUPLING
8 255-2272 [1] SEAL GP-DUO-CONE
  205-9114 [2] RING-TORIC
9 295-9234 [1] SEAL-O-RING
10 296-6181 [1] HOUSING
11 296-6183 [1] CARRIER-PLANETARY
12 296-6184 [4] GEAR-PLANETARY (21-TEETH)
13 296-6185 [4] SHAFT
14 296-6186 [3] GEAR-PLANETARY (21-TEETH)
15 296-6189 [1] GEAR-SUN (20-TEETH)
16 296-6190 [1] GEAR-SUN (20-TEETH)
17 296-6192 [1] SPACER (143X170X8-MM THK)
18 296-6194 [1] CARRIER-PLANETARY
19 296-6195 [3] SHAFT
20 296-6230 [3] GEAR-PLANETARY (21-TEETH)
21 296-6231 [1] GEAR-SUN (20-TEETH)
22 296-6232 [1] CARRIER AS
23 296-6311 [1] GEAR-RING (64-TEETH)
24 451-2176 [30] WASHER-HARD (22X35X3.5-MM THK)
25 452-3518 [1] HOUSING-MOTOR
26 470-7587 [1] COVER
27 501-7237 [1] GASKET
28 507-8035 [1] COUPLING
29 093-1731 [2] RING-RETAINING
30 095-0891 [7] PIN-SPRING
31 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
32 096-8058 [3] RING-RETAINING
33 114-1541 [6] PIN-DOWEL
34 143-0811 M [16] BOLT (12X1.75X35-MM)
35 267-6809 B [1] SHIM (0.75-MM THK)
  267-6810 B [1] SHIM (0.85-MM THK)
  267-6811 B [1] SHIM (0.9-MM THK)
  267-6812 B [1] SHIM (0.95-MM THK)
  267-6813 B [1] SHIM (1.2-MM THK)
  267-6814 B [1] SHIM (1.4-MM THK)
  267-6815 B [1] SHIM (1.8-MM THK)
  267-6816 B [1] SHIM (2-MM THK)
  267-6817 B [1] SHIM (2.3-MM THK)
  7Y-1056 B [1] SHIM (0.8-MM THK)
  7Y-1057 B [1] SHIM (1-MM THK)
44 279-0344 [2] BEARING AS-TAPERED ROLLER
45 296-6247 [11] BEARING AS-ROLLER
46 296-6248 [3] BEARING AS-ROLLER
47 3E-2338 [2] PLUG-PIPE
48 5P-8245 [16] WASHER-HARD (13.5X25.5X3-MM THK)
49 6V-8133 M [10] BOLT (M24X3X80-MM)
50 6V-8237 [10] WASHER (26X44X4-MM THK)
51 7M-8485 [2] SEAL-O-RING
52 7Y-0595 [2] SPACER (58X79.6X6-MM THK)
55 7Y-5217 M [30] BOLT-SOCKET HEAD (M20X2.5X70-MM)
  B   USE AS REQUIRED
  M   METRIC PART



296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy 0



296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy 1



296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy 2296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy 3296-6194 1912511 1484607 7Y0643 1994750 E336D E328D E336D 2Nd Spider Assy Excavator  Final Drive Planet Carrier Assy 4









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
