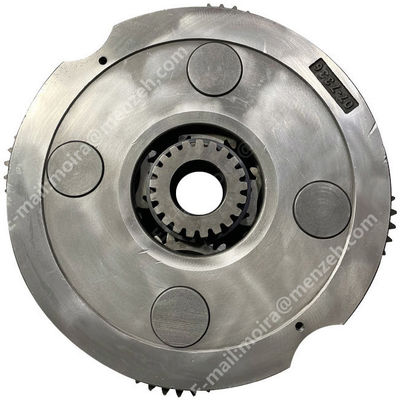

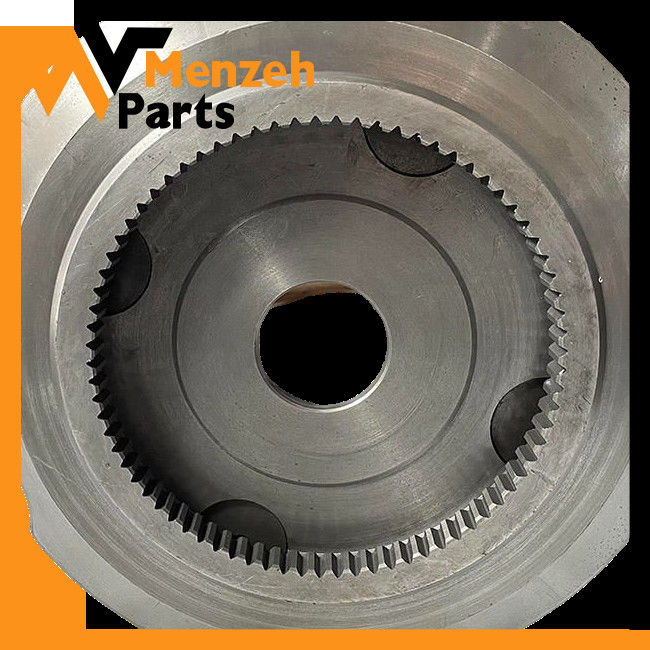

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier

  • 2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier
  • 2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier
2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 2217-7009A 120501-00393C 120501-00391C DH420
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: 2217-7009A 120501-00393C 120501-00391C
Used For: DH420 Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light:

DH420 Excavator Reducer

,

120501-00391C Excavator Reducer

,

2217-7009A Travel Planet Carrier

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier



Part Name Carrier
Part No. 2217-7009A 120501-00393C 120501-00391C
Used For DH420
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
-. 401-00005A [1] REDUCTION GEAR;TRAVEL
1 2.430-00224 [1] COVER
10 2101-7028A [1] SUN GEAR 2
11 2230-7024A [1] CARRIER 2
12 2217-7009A [4] PIN;CARRIER 2
13 2109-7045 [4] BEARING;NEEDLE K9005136
13 K9005136 [4] BEARING;NEEDLE
14 2101-7029 [4] PLANETARY 2
15 2123-7055A [4] PIN;SPRING
16 2114-7114 [8] WASHER;THRUST
17 2104-7010A [1] RING GEAR
18 *NA00528 [1] CARTER
19 2109-7046 [2] BEARING
2 2.217-00003 [1] CARRIER 1
20 114-00002 [1] SHIM
21 2114-7115 [2] WASHER;LOCK
22 2411-7004 [1] RING;SUPPORT
23 2180-7134 [1] SEAL;FLOATING
24 S2212261 [24] SOCKET-HEAD BOLT
25 S2225771 [24] BOLT;SOCKET M18X105
26 120-00001 [2] SCREW;CAP TAPER
3 2.123-00110 [3] PIN;CARRIER 1
4 2109-7044 [3] BEARING;NEEDLE K9005135
4 K9005135 [3] BEARING;NEEDLE
5 2114-7113 [6] WASHER;THRUST
6 2101-7026 [3] PLANETARY 1
7 S5740950 [3] PIN;SPRING
71 K9001037 [1] KIT;HOUSING (18,25)
8 2412-7006 [1] PLATE;THRUST
9 2101-7027A [1] SUN GEAR 1



2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 0

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 1

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 22217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 3







FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

2217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 42217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 52217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 62217-7009A 120501-00393C 120501-00391C DH420 Excavator Reducer Gearbox Part Excavator 2Nd Stage Travel Planet Carrier 7
