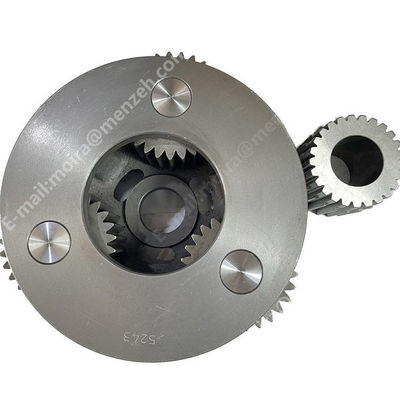

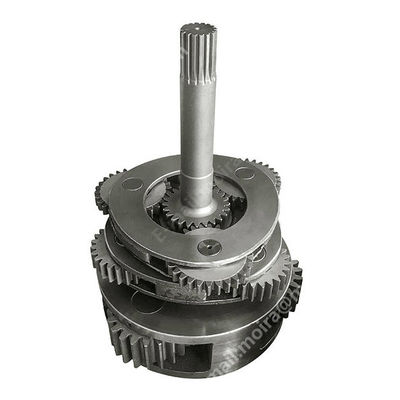

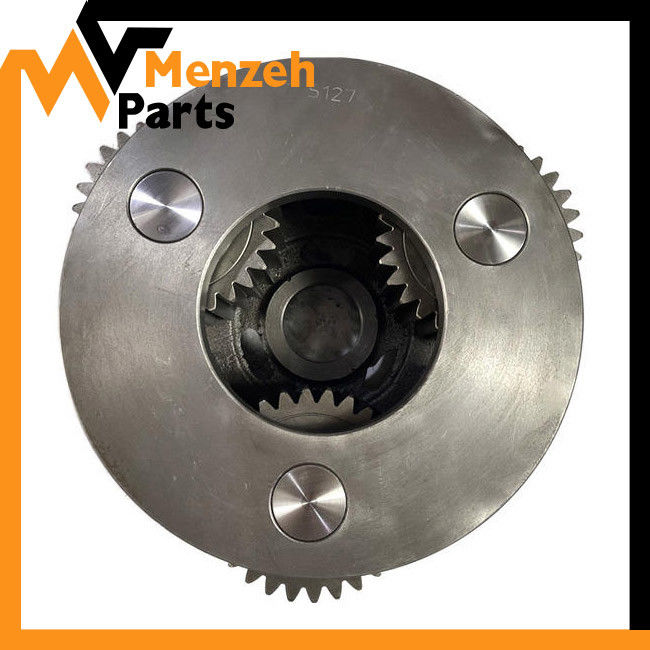

PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators

PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators

  • PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators
  • PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators
  • PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators
  • PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators
PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: PC120-5 EC210 EC240 EC290 EC330
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Assy Part Number: PC120-5 EC210 EC240 EC290 EC330
Used For: PC120-5 EC210 EC240 EC290 EC330 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

EC330 Planetary Gear

,

EC210 Planetary Gear

,

PC120-5 Planetary Gear

PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators



Part Name Carrier Assy
Part Number
Used For PC120-5 EC210 EC240 EC290 EC330
Warrenty 3 Months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name
  VOE14621718 [1] Travel gearbox
1 VOE14505739 [1] Housing
2 VOE14621719 [1] Gear
3 VOE14505742 [1] Seal
4 VOE14505744 [1] Gear
5 VOE14505745 [1] Retainer
6 VOE14575734 [1] Flexible coupling
7 SA9541-02032 [1] Retaining ring
8 VOE14575733 [1] Gear
9 VOE14621720 [1] Cover
10 VOE14505737 [1] Planet carrier
11 VOE14505751 [1] Planet carrier
12 VOE14505756 [8] Washer
13 VOE14505757 [4] Pin
14 VOE14505755 [4] Planetary gear
15 VOE14505754 [2] Ring retainer
16 VOE14505753 [1] Ring
17 VOE14505752 [1] Gear
18 SA9325-06012 [4] Spring pin
19 SA7117-30320 [4] Needle bearing
20 VOE14505738 [1] Planet carrier
21 VOE14505746 [1] Planet carrier
22 VOE14505748 [8] Washer
23 VOE14505749 [4] Pin
24 VOE14505747 [1] Planetary gear
25 VOE14505753 [1] Ring
26 VOE951993 [4] Spring pin
27 SA7117-38520 [4] Needle bearing
28 VOE14507345 [1] Shim
29 VOE14505743 [1] Seal
30 VOE983505 [2] O-ring
31 VOE14577793 [2] Plug
32 VOE984370 [20] Hex. socket screw
33 VOE983919 [12] Hex. socket screw
34 VOE997963 [12] Hexagon screw
35 VOE955925 [12] Spring washer
36 VOE14556703 [2] Bearing
37 SA7117-15230 [1] Pad



PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 0



PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 1

PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 2PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 3PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 4PC120-5 EC210 EC240 EC290 EC330 Planetary Gear 1st 2nd 3rd Carrier Assembly Carrier Assy For Excavators 5









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.
