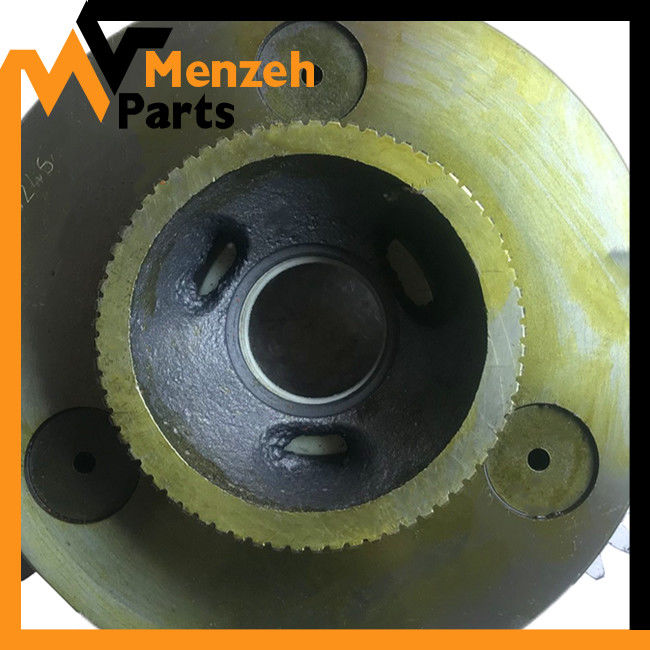

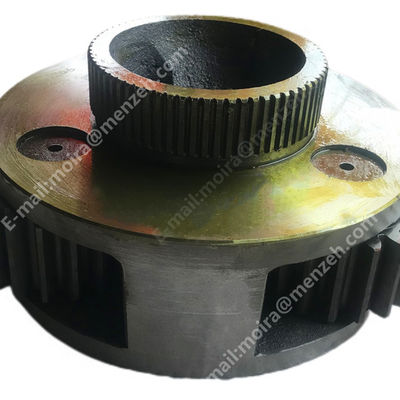

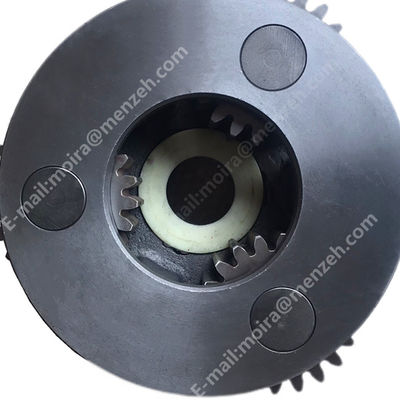

EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear

EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear

  • EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear
  • EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear
  • EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear
EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: EX300-5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Part Number: EX300-5
Used For: EX300-5 Condiction: All New
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR
Port: Huangpu After Warranty Service: Online Support Spare Parts
High Light:

EX300-5 Carrier Assy

,

Excavator Carrier Assy

EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear

Part Name Carrier
Part No. EX300-5
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
0 -9136263 [1] MOTOR;OIL P 9149690 <STD><for transportation>
0 -9136263 [1] MOTOR;OIL <LC><for transportation>
0 -9149690 [1] MOTOR;OIL <STD><for transportation>
0 -9149690 [1] MOTOR;OIL <LC><for transportation>
0 9121357 [1] MOTOR;OIL P 9149649 <STD><for assembly of machine>
0 9121357 [1] MOTOR;OIL <LC><for assembly of machine>
0 9149649 [1] MOTOR;OIL <STD><for assembly of machine>
0 9149649 [1] MOTOR;OIL <LC><for assembly of machine>
00-56. -9135612 [2] TRAVEL DEVICE <for transportation>
00-56. 9135325 [2] TRAVEL DEVICE I 9135612 <for assembly of machine>
2 1020468 [1] HOUSING
3 4066695 [1] SEAL;GROUP
4 4192975 [2] BRG.;ROL.
4 4269453 [2] BRG.;ROL. Y 4192975
5 1020474 [1] DRUM
6 1017928 [1] SPROCKET
7 A590920 [20] WASHER;SPRING
8 J932060 [20] BOLT
10 3036256 [1] NUT
11 4192974 [1] PLATE;LOCK
12 J901225 [2] BOLT
14 1020196 [1] CARRIER
15 3054490 [3] GEAR;PLANETARY
16 4269455 [6] BRG.;NEEDLE
17 4269470 [6] PLATE;THRUST
18 4269452 [3] PIN
19 4192021 [3] PIN;SPRING
20 3068731 [1] GEAR;SUN
23 1016081 [1] GEAR;RING
25 J931640 [24] BOLT
27 1016153 [1] CARRIER
28 4192979 [2] SPACER
29 3054491 [3] GEAR;PLANETARY
30 4269454 [3] BRG.;NEEDLE
31 4284521 [6] PLATE;THRUST
32 4269451 [3] PIN
33 4197763 [3] PIN;SPRING
34 3068730 [1] GEAR;SUN
35 4308769 [1] SPACER
36 1016154 [1] CARRIER
37 3054492 [3] GEAR;PLANETARY
38 4269471 [3] BRG.;NEEDLE
39 4284520 [6] PLATE;THRUST
40 4269472 [3] PIN
41 4192020 [3] PIN;SPRING
42 2031377 [1] SHAFT;PROP.
44 2032275 [1] COVER
45 4277474 [1] PIN;STOPPER
46 4278168 [1] BRG.;BALL
47 930451 [1] RING;RETAINING
48 J011230 [12] BOLT;SEMS
49 4245797 [3] PLUG
51 4269473 [1] O-RING
52 M341885 [4] BOLT;SOCKET
53 4287213 [4] WASHER;SPRING
55 3053559 [1] NAME-PLATE
56 M492564 [2] SCREW;DRIVE
60 4272306 [34] BOLT
61 4018545 [34] WASHER



EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 0



EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 1

EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 2EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 3EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 4







FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 5EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 6EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 7EX300-5 Excavator 3rd Planetary Sun Gear Carrier Assy Travel Final Drive Gear 8
