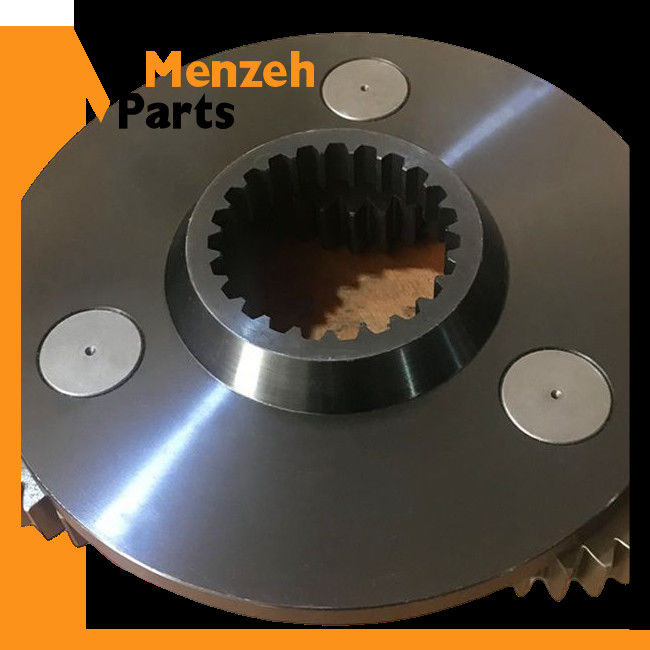

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly

  • SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly
  • SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly
  • SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly
SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: CARRIER Part Number: SA7117-00510 VOE14608963 VOE14505737 SA7118-23210
Used For: EC360 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

EC360 1st Planetary Assembly

,

SA7117-00510 Planetary Assembly

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly

Part Name Carrier Assy
Part No. SA7117-00510 VOE14608963 VOE14505737 SA7118-23210
Used For EC360
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
  SA7117-45060 [1] Travel Gearbox
1 SA7117-00540 [1] Housing
2 SA1036-00320 [2] Absorbent
3 SA1036-00050 [1] Gear
4 VOE947695 [20] Hex. socket screw
5 SA1036-00330 [1] Seal
6 SA1036-00390 [2] Shim T=0.8MM
  SA1036-00400 [2] Shim T=0.9MM
  SA1036-00410 [2] Shim T=1.0MM
  SA1036-00420 [2] Shim T=1.2MM
  SA1036-00430 [1] Shim T=1.5MM
  SA1036-00440 [1] Shim T=2.3MM
7 SA7117-00570 [1] Retainer
8 VOE997446 [18] Hexagon screw
9 SA1036-00290 [2] Thrust ring
10 SA1036-00260 [1] Sun gear
11 VOE14517932 [1] Cover
12 SA1036-00450 [1] Shim T=0.5MM
  SA1036-00460 [1] Shim T=1.0MM
13 SA9016-21007 [20] Hexagon screw
14 SA9023-11006 [2] Set screw
15 VOE14883847 [3] Plug
16 SA7117-00530 [1] Planet carrier
17 SA7117-00560 [1] Gear
18 SA1036-00220 [4] Planetary Gear
19 SA1036-00240 [4] Needle bearing
20 SA1036-00180 [8] Washer
21 SA1036-00230 [4] Pin
22 VOE13951991 [4] Spring pin
23 SA7117-00520 [1] Carrier
24 SA7117-00550 [1] Carrier
25 SA1036-00310 [1] Thrust ring
26 SA1036-00280 [1] Sun gear
27 SA1036-00300 [1] Ring
28 SA1036-00200 [1] Ring
29 SA1036-00160 [3] Planetary Gear
30 SA1036-00190 [3] Needle bearing
31 SA1036-00180 [6] Washer
32 SA1036-00170 [3] Pin
33 SA9325-06012 [3] Spring pin
34 SA7117-00510 [1] Planet carrier
35 SA1036-00080 [1] Planet carrier
36 SA1036-00100 [3] Pin
37 SA9325-06012 [3] Spring pin
38 SA1036-00270 [1] Sun gear
39 SA1036-00140 [1] Ring
40 SA1036-00090 [3] Planetary Gear
41 SA1036-00130 [3] Needle bearing
42 SA1036-00110 [3] Washer
43 SA1036-00120 [3] Thrust washer
44 VOE914472 [3] Snap ring
45 VOE990557 [3] O-ring

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 0







SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 1

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 2SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 3SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 4









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount),Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all ,we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely , or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass’y/parts, swing gearbox/ass’y. If you need other excavator parts, we also can supply as your requirements.

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 5SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 6SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 7SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 8SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 9SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 10

SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 11SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 12SA7117-00510 VOE14608963 VOE14505737 SA7118-23210 EC360 Excavator Swing Gearbox Inner Parts 1st Planetary Assembly 13
