K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary

K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary

  • K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary
  • K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary
  • K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary
  • K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary
K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: 1st Planetary Part Number: K1003027 K1003028 K9000929 K9000933 K9001232
Used For: DH300-7 DX300 SOLAR 300LC-V Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

K9000929 Planet Carrier Assy

,

K1003028 Planet Carrier Assy

,

K1003027 Planet Carrier Assy

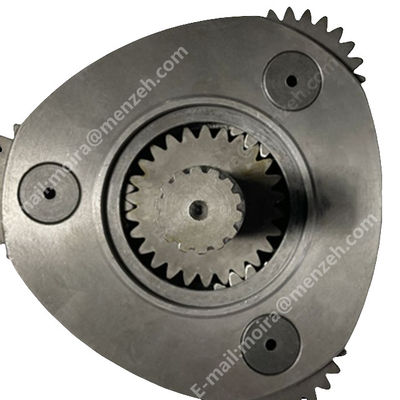

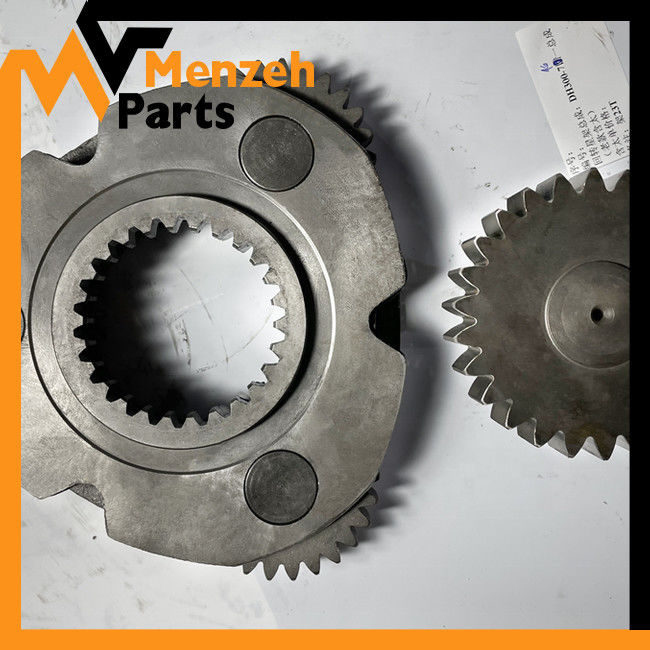

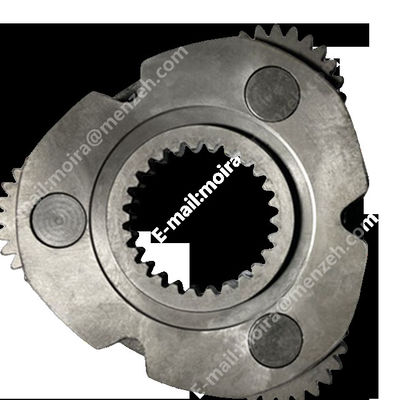

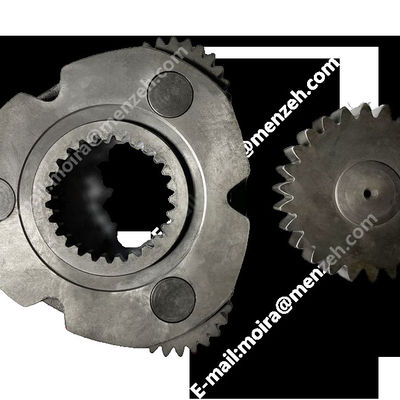

K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary Sun Gear

Part Name Carrier Assy
Part No. K1003027 K1003028 K9000929 K9000933 K9001232
Used For DH300-7 DX300 SOLAR 300LC-V
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
-. 404-00098C [1] TRAVEL REDUCTION GEAR
-. 170402-00009 [1]
10 K1003028 [1] KIT;CARRIER NO.2
10A. K1000713 [1] CARRIER NO.2
10B. K9000795 [3] GEAR;PLANETARY NO.2
10C. K9000796 [6] WASHER;THRUST NO.2
10D. K9000797 [3] PIN NO.2
10E. K1000719 [45] ROLLER;NEEDLE
10G. S5740900 [3] PIN;SPRING
14 K9000798 [1] GEAR;SUN NO.2
15 K1003027 [1] KIT;CARRIER NO.1
15A. K1000712 [1] CARRIER NO.1
15B. K9000799 [3] GEAR;PLANETARY NO.1
15C. K9000800 [6] WASHER;THRUST NO.1
15D. K9000801 [3] PIN NO.1
15E. K1000720 [3] BEARING;NEEDLE ROLLER
15G. S5740650 [3] PIN;SPRING M4X20
19 K9000802 [1] GEAR;SUN NO.1
2 K1000707 [1] HOUSING
2 110931-00382 [1]
20 K9000803 [4] PIN;DOWEL
21 K9000804 [1] GEAR;RING
22 K9000805 [1] WASHER;THRUST NO.4
23 K1000716 [1] COVER
24 K9000806 [1] GASKET
27 K9000807 [1] BUSHING;THRUST NO.3
28 K9000808 [1] BUSHING;THRUST NO.2
29 K9000809 [1] BUSHING;THRUST NO.1
3 K9000789 [1] STOPPER
3 K9000789B [1]
30 K9000810 [1] BUSHING;THRUST NO.4
31 K9000811 [1] BUSHING;OIL
32 K9000812 [1] COUPLING
33 K9000813 [2] BEARING;ANGULAR
35 2180-6059 [1] SEAL;FLOATING
36 S6501150 [1] RING;SNAP
37 S6501100 [1] RING;SNAP
39 V2180-1217D174 [1] O-RING
4 K9000790 [1] BEARING;GUIDE
40 S2212061 [32] BOLT;SOCKET M10X1.5X25
40 S2212061 [16] BOLT;SOCKET M10X1.5X25
42 S2219661 [24] BOLT;SOCKET M14X100
43 S2215061 [17] BOLT;SOCKET M12X1.75X25
43 S2215061 [37] BOLT;SOCKET M12X1.75X25
45 2181-1890D3 [3] PLUG
46 S8000141 [3] O-RING
5 K1003029 [1] KIT;CARRIER NO.3
5A. K9001290 [1] CARRIER NO.3
5B. K9000791 [4] GEAR;PLANETARY NO.3
5C. K9000792 [8] WASHER;THRUST NO.3
5D. K9001291 [4] PIN NO.3
5E. K1000718 [72] ROLLER;NEEDLE
5G. S5741240 [4] PIN;SPRING
9 K9000794 [1] GEAR;SUN NO.3



K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 0





K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 1

K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 2K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 3K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 4K1003027 K1003028 K9000929 K9000933 K9001232 DH300-7 DX300 SOLAR 300LC-V 1st Planet Carrier Assy Travel Planetary 5











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
