20Y-27-42520 20Y-27-31220 20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear

20Y-27-42520 20Y-27-31220 20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear

  • 20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear
  • 20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear
20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-27-42520 20Y-27-31220 20Y-27-41140 Pc200-7 PC210 PC200-8
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description

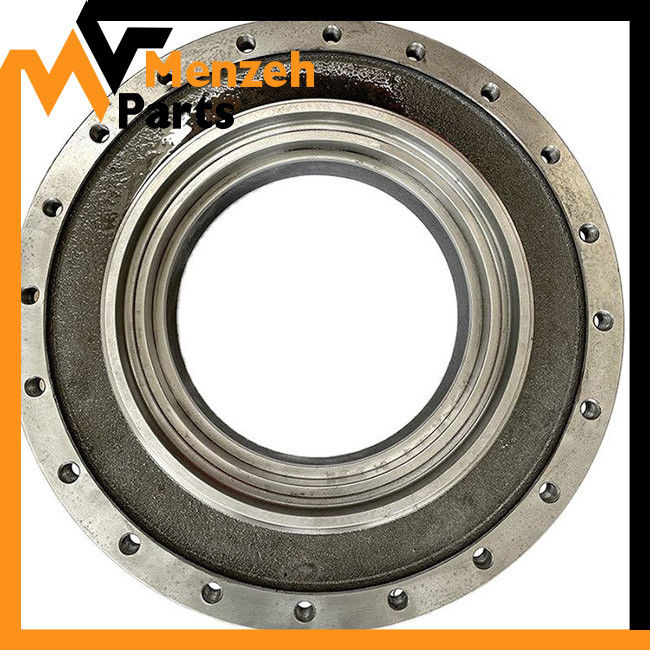

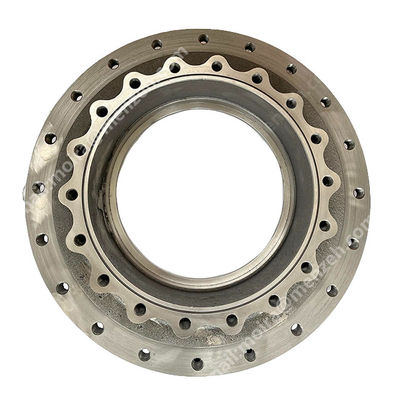

Part Name: Hub Part Number: 20Y-27-42520 20Y-27-31220 20Y-27-41140
Used For: Pc200-7 PC210 PC200-8 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC200-8 Final Drive Sprocket Hub

,

20Y-27-42520 Final Drive Sprocket Hub

,

PC210 Final Drive Sprocket Hub

20Y-27-42520 20Y-27-31220 20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gearbox Casing Part

Part Name Hub
Part No. 20Y-27-42520 20Y-27-31220 20Y-27-41140
Used For Pc200-7 PC210 PC200-8
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
  20Y-27-00500 [2] Final Drive Assembly Komatsu OEM 370 kg.
  ["SN: 350001-350198"] analogs:["20Y2700501"] |$0.
  20Y-27-00110 [1] Floating Seal Assembly Komatsu OEM 2.65 kg.
  ["SN: 350001-350198"] |$1.
3. 20Y-27-41140 [1] Hub Komatsu 113.8 kg.
  ["SN: 350001-350198"]
4. 20Y-27-41260 [2] Bearing Komatsu 4.5 kg.
  ["SN: 350001-350198"]
5. 20Y-27-41190 [1] Nut, Lock Komatsu 3 kg.
  ["SN: 350001-350198"]
6. 20Y-27-41180 [1] Lock Komatsu 0.04 kg.
  ["SN: 350001-350198"]
7. 01010-81020 [2] Bolt Komatsu 0.161 kg.
  ["SN: 350001-350198"] analogs:["801014093", "0101051020", "801015108"]
8. 20Y-27-41150 [1] Carrier Komatsu 16.1 kg.
  ["SN: 350001-350198"]
9. 20Y-27-41130 [4] Gear Komatsu 2.6 kg.
  ["SN: 350001-350198"]
10. 20Y-27-41250 [4] Bearing Komatsu 1.5 kg.
  ["SN: 350001-350198"]
11. 20Y-27-41270 [8] Washer, Thrust Komatsu 0.03 kg.
  ["SN: 350001-350198"]
12. 20Y-27-41170 [4] Pin Komatsu 2.1 kg.
  ["SN: 350001-350198"]
13. 20Y-27-21290 [4] Pin Komatsu OEM 0.03 kg.
  ["SN: 350001-350198"]
14. 20Y-27-13310 [1] Washer, Thrust Komatsu China 0.08 kg.
  ["SN: 350001-350198"]
15. 20Y-27-41120 [1] Gear Komatsu 1.45 kg.
  ["SN: 350001-350198"]
16. 20Y-27-22240 [1] Washer, Thrust Komatsu China 0.03 kg.
  ["SN: 350001-350198"]
17. 20Y-27-31111 [1] Carrier Komatsu 5.78 kg.
  ["SN: 350001-350198"]
18. 20Y-27-22120 [3] Gear Komatsu China 2.5 kg.
  ["SN: 350001-350198"]
19. 20Y-27-22210 [3] Bearing Komatsu China 0.12 kg.
  ["SN: 350001-350198"] analogs:["20Y2721260"]
20. 20Y-27-21240 [6] Washer, Thrust Komatsu China 0.02 kg.
  ["SN: 350001-350198"]
21. 20Y-27-21220 [3] Pin Komatsu China 0.411 kg.
  ["SN: 350001-350198"]
22. 20Y-27-21280 [3] Pin Komatsu China 0.01 kg.
  ["SN: 350001-350198"]
23. 20Y-27-41110 [1] Shaft Komatsu 1.4 kg.
  ["SN: 350001-350198"]
24. 20Y-27-21310 [1] Washer Komatsu China 0.17 kg.
  ["SN: 350001-350198"]
25. 20Y-27-41160 [1] Cover Komatsu 14.95 kg.
  ["SN: 350001-350198"]
26. 04260-01587 [1] Ball, Steel Komatsu 0.018 kg.
  ["SN: 350001-350198"]
27. 01010-81240 [12] Bolt Komatsu 0.052 kg.
  ["SN: 350001-350198"] analogs:["801015573", "0101051240"]
28. 01643-31232 [12] Washer Komatsu 0.027 kg.
  ["SN: 350001-350198"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
29. 07049-01012 [2] Plug Komatsu 0.001 kg.
  ["SN: 350001-350198"]
30. 20Y-27-31190 [3] Plug Komatsu 0.07 kg.
  ["SN: 350001-350198"]
31. 07002-12434 [3] O-ring Komatsu China 0.01 kg.
  ["SN: 350001-350198"] analogs:["0700202434", "0700213434"]
32. 20Y-27-11582 [1] Sprocket Komatsu China 36.2 kg.
  ["SN: 350001-350198"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"]
33. 20Y-27-11561 [20] Bolt Komatsu China 0.14 kg.
  ["SN: 350001-350198"]
34 01010-61660 [36] Bolt Komatsu 0.127 kg.
  ["SN: 350001-350198"] analogs:["0101031660", "0101081660"]
35 01643-31645 [36] Washer Komatsu 0.072 kg.
  ["SN: 350001-350198"] analogs:["802170005", "0164301645"]
36 20Y-30-21191 [2] Cover Komatsu 12.25 kg.
  ["SN: 350001-350198"]
37 01010-81230 [8] Bolt Komatsu 0.043 kg.
  ["SN: 350001-350198"] analogs:["0101051230", "01010B1230"]
39 708-8F-00250 [-1] Motor Assembly Komatsu 93 kg.
  ["SN: UP"]



20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 0



20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 1

20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 220Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 3











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 420Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 520Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 620Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 720Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 820Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 9

20Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 1020Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 1120Y-27-42520 20Y-27-31220  20Y-27-41140 Pc200-7 PC210 PC200-8 Final Drive Sprocket Hub Drum Spare Part Replacement Gear 12
