20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk

20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk

  • 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
  • 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
  • 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
  • 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
  • 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Hub Part Number: 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00
Used For: PC200-7 PC200-6 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC200-6 Travel Gearbox Drive Gear Disk

,

TZ902S1001-00 Travel Gearbox Drive Gear Disk

,

20Y-27-22180 Excavator Final Drive Parts

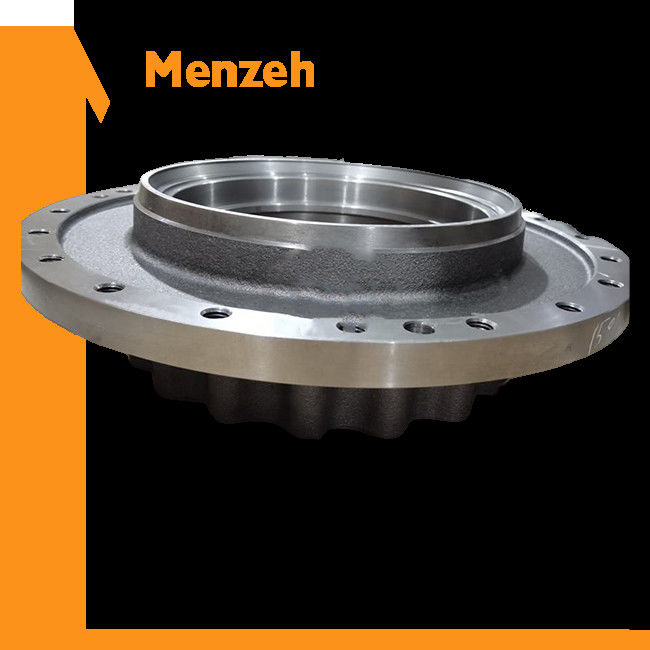

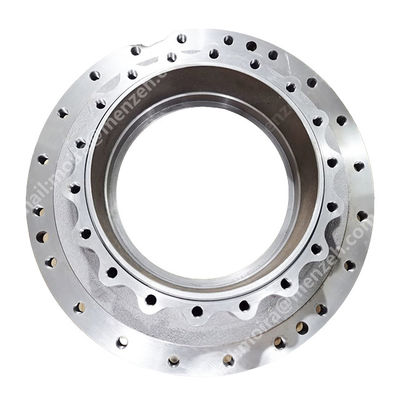

20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 travel gearbox drive gear disk Excavator housing Sprocket HUB



Part Name Hub
Part No. 20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00
Used For PC200-7 PC200-6
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 708-8F-00060 [2] TRAVEL MOTOR ASS'Y Komatsu China
  ["SN: C10001-UP"] analogs:["7088F00061"]
  150-27-00029 [2] FLOATING SEAL ASS'Y Komatsu China 2.99 kg.
  ["SN: C10001-UP"] analogs:["1502700330", "1502700410"] |2.
2 150-27-00263 [1] SEAL RING ASS'Y Komatsu 2.918 kg.
  ["SN: C10001-UP"]
3 144-873-0310 [1] O-RING ASS'Y Komatsu 0.29 kg.
  ["SN: C10001-UP"] analogs:["1502700270"]
4 20Y-27-22180 [2] HUB Komatsu China
  ["SN: C10001-UP"]
5 20Y-27-22230 [4] BEARING Komatsu 4.6 kg.
  ["SN: C10001-UP"]
6 20Y-27-22280 [2] O-RING Komatsu China 0.02 kg.
  ["SN: C10001-UP"]
7 20Y-27-22260 [2] LOCK Komatsu 4.05 kg.
  ["SN: C10001-UP"]
8 20Y-27-22270 [2] LOCK Komatsu 0.07 kg.
  ["SN: C10001-UP"]
9 01010-81020 [4] BOLT Komatsu 0.161 kg.
  ["SN: C10001-UP"] analogs:["801014093", "0101051020", "801015108"]
10 20Y-27-22170 [2] CARRIER Komatsu China 20.4 kg.
  ["SN: C10001-UP"]
11 20Y-27-22140 [8] GEAR Komatsu China 3.72 kg.
  ["SN: C10001-UP"]
12 20Y-27-22220 [8] BEARING Komatsu China 0.3 kg.
  ["SN: C10001-UP"] analogs:["20Y2721270"]
13 20Y-27-21250 [16] WASHER Komatsu China 0.03 kg.
  ["SN: C10001-UP"]
14 20Y-27-21230 [8] PIN Komatsu 1.54 kg.
  ["SN: C10001-UP"]
15 20Y-27-21290 [8] PIN Komatsu OEM 0.03 kg.
  ["SN: C10001-UP"]
16 20Y-27-13310 [2] WASHER Komatsu China 0.08 kg.
  ["SN: C10001-UP"]
17 20Y-27-22130 [2] GEAR Komatsu China 1.75 kg.
  ["SN: C10001-UP"]
18 20Y-27-22240 [2] WASHER Komatsu China 0.03 kg.
  ["SN: C10001-UP"]
19 20Y-27-22150 [2] GEAR Komatsu 43.7 kg.
  ["SN: C10001-UP"] analogs:["20Y2722151"]
20 20Y-27-22160 [2] CARRIER Komatsu OEM 6 kg.
  ["SN: C10001-UP"]
21 20Y-27-22120 [6] GEAR Komatsu China 2.5 kg.
  ["SN: C10001-UP"]
22 20Y-27-22210 [6] BEARING Komatsu China 0.12 kg.
  ["SN: C10001-UP"] analogs:["20Y2721260"]
23 20Y-27-21240 [12] WASHER Komatsu China 0.02 kg.
  ["SN: C10001-UP"]
24 20Y-27-21220 [6] PIN Komatsu China 0.411 kg.
  ["SN: C10001-UP"]
25 20Y-27-21280 [6] PIN Komatsu China 0.01 kg.
  ["SN: C10001-UP"]
26 20Y-27-22110 [2] SHAFT Komatsu China 1.4 kg.
  ["SN: C10001-UP"] analogs:["20Y2731140"]
27 20Y-27-21310 [2] WASHER Komatsu China 0.17 kg.
  ["SN: C10001-UP"]
28 20Y-27-22250 [2] BUTTON Komatsu China 0.05 kg.
  ["SN: C10001-UP"]
29 20Y-27-22190 [2] COVER Komatsu 17.6 kg.
  ["SN: C10001-UP"]
30 20Y-27-13281 [36] BOLT Komatsu 0.31 kg.
  ["SN: C10001-UP"]
31 01643-31645 [36] WASHER Komatsu 0.072 kg.
  ["SN: C10001-UP"] analogs:["802170005", "0164301645"]
32 07049-01012 [4] PLUG Komatsu 0.001 kg.
  ["SN: C10001-UP"]
33 07044-12412 [4] PLUG Komatsu 0.09 kg.
  ["SN: C10001-UP"] analogs:["0704402412", "R0704412412"]
34 07002-02434 [4] O-RING Komatsu China 0.01 kg.
  ["SN: C10001-UP"] analogs:["0700212434", "0700213434"]
35 20Y-27-11581 [2] SPROCKET Komatsu China 36.2 kg.
  ["SN: C10001-UP"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"]
36 20Y-27-11561 [40] BOLT Komatsu China 0.14 kg.
  ["SN: C10001-UP"]
37 01010-61660 [36] BOLT Komatsu 0.127 kg.
  ["SN: C10001-UP"] analogs:["0101031660", "0101081660"]
39 20Y-30-21190 [2] COVER Komatsu China
  ["SN: C10001-UP"]
40 01010-81230 [8] BOLT Komatsu 0.043 kg.
  ["SN: C10001-UP"] analogs:["0101051230", "01010B1230"]
41 01643-31232 [8] WASHER Komatsu 0.027 kg.
  ["SN: C10001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]



20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 0



20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 1



20Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 220Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 320Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 420Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 520Y-27-22180 20Y-27-21120 20Y-27-22181 20Y-957-2630 TZ902S1001-00 PC200-7 PC200-6 Travel Gearbox Drive Gear Disk 6











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
