Guangzhou Menzeh Machinery Parts Co., Ltd.
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | MENZEH GEARS |
| Certification: | CE |
| Model Number: | 4468675 1025079 1030236 EX70 ZX75UR |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiated |
| Packaging Details: | BOX, Wooden |
| Delivery Time: | 1-3 working Days |
| Payment Terms: | Western Union, T/T, L/C,ALI PAY |
| Supply Ability: | 500 pcs per Day |
| Part Name: | Drum | Part Number: | 4468675 1025079 1030236 |
|---|---|---|---|
| Used For: | EX70 ZX75UR | Condiction: | All New OEM |
| Warrenty: | 3 Months | Shipping: | DHL/ TNT/ UPS/ SEA/ AIR Shipping |
| Port: | Huangpu Guangzhou | After Warranty: | Video Technical Support Online Support Spare Parts |
| High Light: | 1030236 Final Drive Housing,4468675 Final Drive Housing,EX70 Final Drive Housing |
||

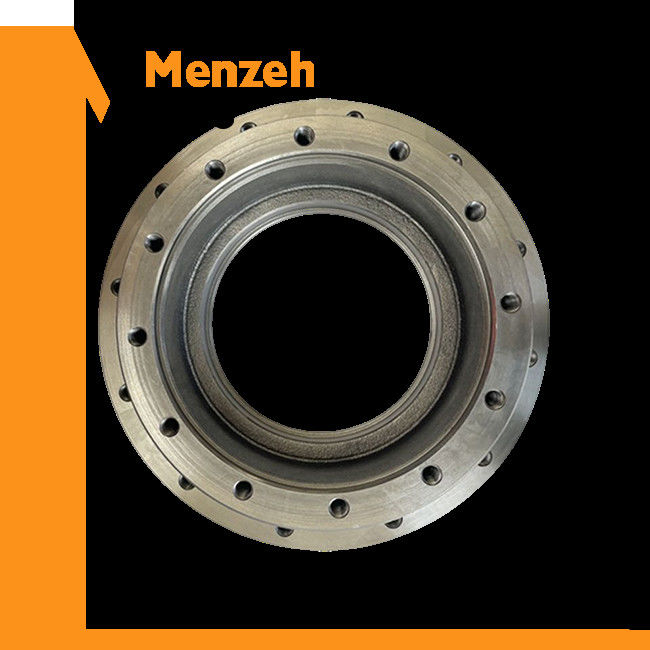

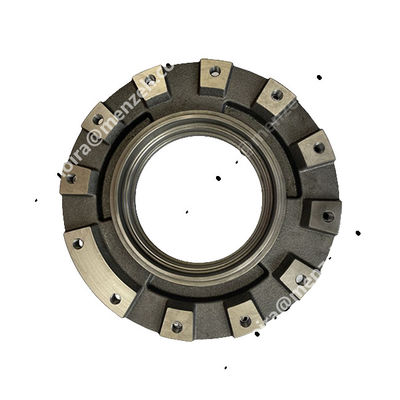

4468675 1025079 1030236 EX70 ZX75UR Final Drive Housing Excavator Parts Final Drive Hub DRUM
| Part Name | DRUM |
| Part No. | 4468675 1025079 1030236 |
| Used For | EX70 ZX75UR |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |
| Pos. | Part No | Qty | Parts name | Comments |
| 9224123 | [2] | TRAVEL DEVICE ASS'Y | ||
| 0 | 9190694 | [1] | MOTOR;OIL | I 9204752 (for assembly of machine) |
| 0 | 9204752 | [1] | MOTOR;OIL | (for transportation) |
| 2 | 4468674 | [2] | BRG.;BOLL | |
| 3 | 4082631 | [1] | SEAL;GROUP | |
| 4 | 4468675 | [1] | DRUM | |
| 6 | J931635 | [12] | BOLT | |
| 8 | 4468676 | [1] | GEAR;RING | |
| 9 | M341440 | [12] | BOLT;SOCKET | |
| 10 | 1024217 | [1] | SPROCKET | |
| 12 | 4468678 | [1] | COVER | |
| 13 | 4392320 | [1] | RING | |
| 14 | 4245797 | [3] | PLUG | |
| 15 | 4468679 | [1] | PIN | |
| 16 | 4407802 | [1] | O-RING | |
| 19 | 4468680 | [1] | CARRIER | |
| 20 | 4468681 | [1] | SHAFT;PROP. | |
| 21 | 4468682 | [3] | GEAR;PLANETARY | |
| 22 | 4392321 | [3] | BRG.;NEEDLE | |
| 23 | 4392322 | [6] | PLATE;THRUST 0.5mm | |
| 24 | 4468683 | [3] | PIN | |
| 25 | 4116305 | [3] | PIN;SPRING | |
| 26 | 4392324 | [1] | PLATE;THRUST 3.2mm | |
| 29 | 4468684 | [1] | CARRIER | |
| 30 | 4468685 | [1] | GEAR;SUN | |
| 31 | 4468686 | [3] | GEAR;PLANETARY | |
| 32 | 4468687 | [3] | BRG.;NEEDLE | |
| 33 | 4392326 | [6] | PLATE;THRUST 0.5mm | |
| 34 | 4468688 | [3] | PIN | |
| 35 | 4105691 | [3] | PIN;SPRING | |
| 37 | 3080619 | [1] | NUT | |
| 38 | J401032 | [1] | PIN;KNOCK | |
| 40 | 3094065 | [1] | NAME-PLATE | |
| 41 | M492564 | [2] | SCREW;DRIVE |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
