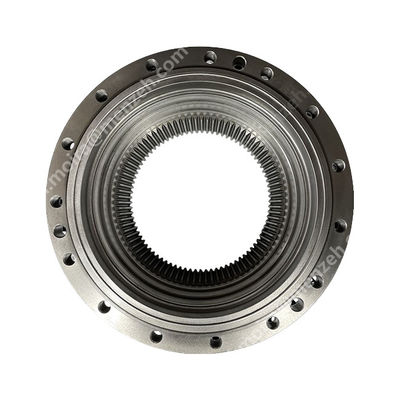

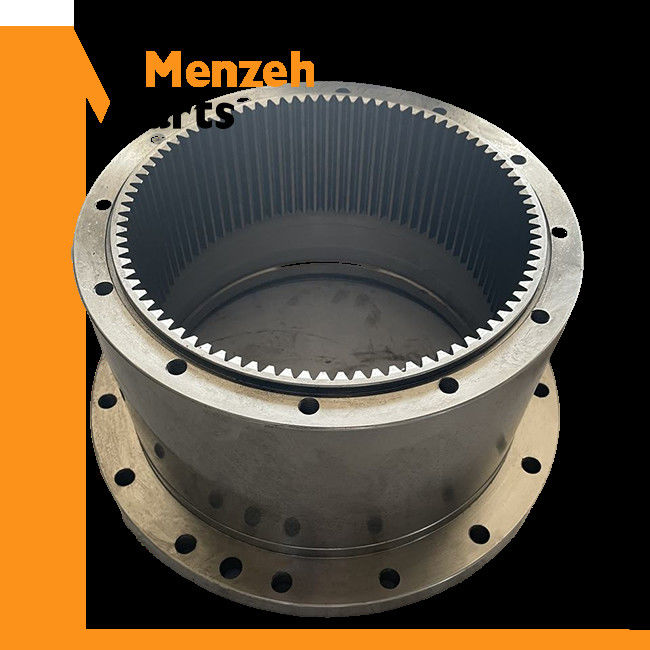

PC100-5 Excavator Parts Travel Reduction Ring Gear Gear Ring Travel Gearbox

Product Details:

Place of Origin:	GUANGZHOU CHINA
Brand Name:	MENZEH GEARS
Certification:	CE
Model Number:	PC100-5

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiated
Packaging Details:	BOX, Wooden
Delivery Time:	1-3 working Days
Payment Terms:	Western Union, T/T, L/C,ALI PAY
Supply Ability:	500 pcs per Day

Contact Now

Detailed Product Description

Part Name:	Gear Ring	Part Number:	PC100-5
Used For:	PC100-5	Condiction:	All New OEM
Warrenty:	3 Months	Shipping:	DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port:	Huangpu Guangzhou	After Warranty:	Video Technical Support Online Support Spare Parts
High Light:	PC100-5 Excavator Parts , Travel Gearbox Excavator Parts , PC100-5 Excavator Travel Gearbox

PC100-5 Excavator Parts Travel Reduction Ring Gear Gear Ring Travel Gearbox

Part Name	Gear Ring
Part Number	PC100-5
Used For	PC100-5
Warrenty	3 Months
After Warranty	Video technical support Online support Free Spare parts

Pos.	Part No	Qty	Parts name	Comments
	202-60-66101	[2]	TRAVEL MOTOR ASS'Y Komatsu China
			["SN: 28001-32401"] analogs:["2026066102"] \|$0.
1.	TZ200B1001-00	[1]	HUB Komatsu China
			["SN: 28001-@"]
	TZ200B1102-03	[1]	SPINDLE KIT Komatsu China
			["SN: 28001-32401"] analogs:["TZ200B110202", "TZ200B113203", "TZ200B113202"] \|$2.
2	TZ200B1132-03	[1]	SPINDLE ASS'Y Komatsu China
			["SN: 28001-32401"] analogs:["TZ200B110202", "TZ200B110203", "TZ200B113202"]
3	TZ200B1019-02	[3]	BOLT,REAMER Komatsu	0.344 kg.
			["SN: 28001-@"] analogs:["TZ200B101903"]
	TZ250-280-35	[1]	FLOATING SEAL ASS'Y Komatsu China
			["SN: 28001-@"] \|$5.
4	TZES100-250-A	[1]	SEAL,FLOATING (K1) Komatsu	1.21 kg.
			["SN: 28001-@"]
5	TZ150F1027-01	[1]	PIECE,DISTANCE Komatsu China
			["SN: 28001-@"]
6.	07000-15280	[1]	O-RING (K1) Komatsu China	0.033 kg.
			["SN: 28001-@"] analogs:["0700005280"]
7.	TZ200B1021-00	[1]	BEARING Komatsu	3.41 kg.
			["SN: 28001-@"] analogs:["TZ200B102101"]
	TZ200B1104-02	[1]	RV GEAR ASS'Y Komatsu	19 kg.
			["SN: 28001-@"] analogs:["TZ263B110400"] \|$10.
8	TZ200B1204-01	[1]	RV GEAR KIT Komatsu	10 kg.
			["SN: 28001-@"] analogs:["TZ263B120400"]
9	TZ200B1009-01	[3]	SHAFT,CRANK Komatsu	1.397 kg.
			["SN: 28001-@"]
10	TZ200B1022-00	[6]	BEARING Komatsu	0.56 kg.
			["SN: 28001-@"]
11	TZ200B1023-00	[6]	BEARING Komatsu	0.26 kg.
			["SN: 28001-@"]
12.	TZ150A1020-00	[3]	SNAP RING KIT,(12 KINDS) Komatsu	0.925 kg.
			["SN: 28001-@"]
13.	TZ205B1107-00	[1]	SPUR GEAR KIT,(3 PIECES) Komatsu China
			["SN: 28001-@"] analogs:["TZ205B110701"]
14.	TZ200B1014-01	[3]	PIECE,DISTANCE Komatsu	0.04 kg.
			["SN: 28001-@"]
15.	04064-03515	[3]	RING,SNAP Komatsu	0.005 kg.
			["SN: 28001-@"]
16.	TZ205B1006-00	[1]	GEAR,INPUT Komatsu	0.32 kg.
			["SN: 28001-@"]
17.	04064-02815	[1]	RING,SNAP Komatsu China
			["SN: 28001-@"] analogs:["YM22242000280"]
18.	TZ200B1017-00	[24]	PIN Komatsu China
			["SN: 28001-@"]
19.	TZ700C1016-00	[1]	RING Komatsu China
			["SN: 28001-@"]
21.	TZ200B1008-00	[1]	COVER Komatsu China
			["SN: 28001-@"]
22.	TZGM1-2	[2]	PLUG Komatsu	0.025 kg.
			["SN: 28001-@"] analogs:["TZHP000012"]
23.	TZARP568-378-9	[1]	O-RING (K1) Komatsu	0.026 kg.
			["SN: 28001-@"]
24.	01010-31245	[12]	BOLT Komatsu China	0.056 kg.
			["SN: 28001-@"] analogs:["01010E1245", "0101061245"]
25.	TZSW-M12	[12]	WASHER Komatsu China
			["SN: 28001-@"] analogs:["R0SW001220", "TZR0SW001220", "TZSW001220"]
26.	07000-11008	[2]	O-RING (K1) Komatsu China	0.01 kg.
			["SN: 28001-@"] analogs:["0700001008", "2016018950"]
27.	TZJW1516-G41-9	[1]	O-RING (K1) Komatsu	0.01 kg.
			["SN: 28001-@"]
K1.	TZ205B9000-00	[1]	SERVICE KIT Komatsu China
			["SN: 28001-32401"]
1.	07000-15145	[1]	O-RING Komatsu China	0.02 kg.
			["SN: 28001-@"] analogs:["0700005145"]
1.	TZ231F2030-00	[1]	RING,BACK-UP Komatsu	0.01 kg.
			["SN: 28001-@"] analogs:["TZ231F202300"]
1.	07000-15170	[1]	O-RING Komatsu OEM	0.02 kg.
			["SN: 28001-@"] analogs:["0700005170"]
1.	TZSUN-2BG170	[1]	RING,BACK-UP Komatsu	0.01 kg.
			["SN: 28001-@"]
1.	TZTCH-32-52-11	[1]	SEAL,OIL Komatsu China
			["SN: 28001-@"] analogs:["R00S325211", "TZR00S325211", "TZTCN325211", "TZOS325211", "TZ03205211", "TZ0S325211", "TZ00S325211"]
1.	07000-11009	[1]	O-RING Komatsu	0.001 kg.
			["SN: 28001-@"] analogs:["0700001009"]
1.	07000-13032	[1]	O-RING Komatsu China	0.002 kg.
			["SN: 28001-32401"] analogs:["YM24321000350", "YM24311000320", "0700003032"]
1.	07000-11006	[2]	O-RING Komatsu	0.01 kg.
			["SN: 28001-32401"] analogs:["0700001006"]
1.	07000-12020	[2]	O-RING Komatsu	0.001 kg.
			["SN: 28001-32401"]
1.	07002-02034	[1]	O-RING Komatsu China	0.94 kg.
			["SN: 28001-@"] analogs:["0700002034", "0700212034", "0700012034"]
