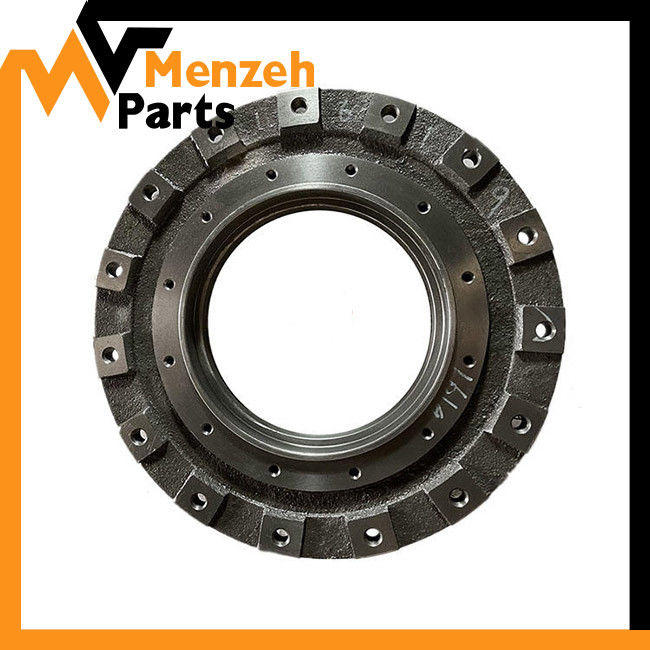

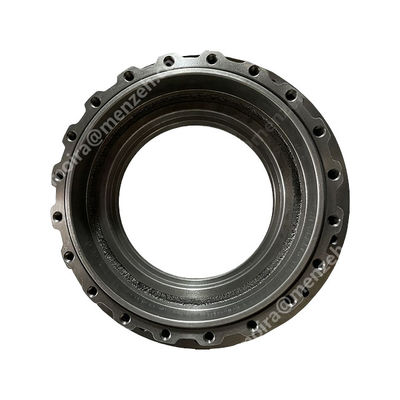

PC120-5 Old Type Excavator Final Drive Housing Hub

PC120-5 Old Type Excavator Final Drive Housing Hub

  • PC120-5 Old Type Excavator Final Drive Housing Hub
  • PC120-5 Old Type Excavator Final Drive Housing Hub
  • PC120-5 Old Type Excavator Final Drive Housing Hub
PC120-5 Old Type Excavator Final Drive Housing Hub
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: PC120-5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Hub Part Number: PC120-5
Used For: PC120-5 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

Excavator Final Drive Housing Hub

,

PC120-5 Final Drive Housing Hub

PC120-5 Old Type Excavator Final Drive Housing Hub



Part Name Housing
Part No.



Used For PC120-5
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
1 3E-2338 [2] PLUG-PIPE
2 7Y-0639 [1] GEAR-SUN (21-TEETH)
3 7Y-0642 [1] GEAR-RING (63-TEETH)
4 7Y-0643 [1] CARRIER
5 7Y-0645 [1] CARRIER
6 7Y-0659 [3] GEAR-PLANETARY (22-TEETH)
7 7Y-0661 [3] SHAFT-PLANETARY
8 7Y-0662 [4] SHAFT-PLANETARY
9 7Y-0663 [4] GEAR-PLANETARY (20-TEETH)
10 7Y-0667 [1] RING-RETAINING
11 7Y-0673 [1] GEAR-RING (73-TEETH)
12 7Y-0676 [3] GEAR-PLANETARY (24-TEETH)
13 7Y-0731 [1] CARRIER AS
13A. 7Y-0656 [3] SHAFT-PLANETARY
14 7Y-1056 BJ [1] SHIM (0.8-MM THK)
  7Y-1057 BJ [1] SHIM (1-MM THK)
  267-6809 BJ [1] SHIM (0.75-MM THK)
  267-6810 BJ [1] SHIM (0.85-MM THK)
  267-6811 BJ [1] SHIM (0.9-MM THK)
  267-6812 BJ [1] SHIM (0.95-MM THK)
  267-6813 BJ [1] SHIM (1.2-MM THK)
  267-6814 BJ [1] SHIM (1.4-MM THK)
  267-6815 BJ [1] SHIM (1.8-MM THK)
  267-6816 BJ [1] SHIM (2-MM THK)
  267-6817 BJ [1] SHIM (2.3-MM THK)
16 7Y-1094 M [14] WASHER (66X102X1-MM THK)
17 7Y-5235 M [20] BOLT (M24X3X190-MM)
18 094-0577 [1] PLATE (7-MM THK)
19 094-0578 [1] PLATE (8-MM THK)
20 094-0579 [1] PLATE (9-MM THK)
21 094-0580 [1] PLATE (10-MM THK)
22 110-7231 [1] GEAR-SUN (18-TEETH)
23 114-1541 J [6] PIN-DOWEL
24 191-2521 [1] GEAR-SUN (23-TEETH)
25 191-2526 [1] COVER
26 199-4582 [3] BEARING AS
27 199-4583 [11] BEARING AS
28 227-6190 J [1] HOUSING-MOTOR
29 227-6191 J [1] HOUSING (SPROCKET)
30 227-6192 J [1] GEAR-COUPLING (66-TEETH)
31 255-2272 CJ [1] SEAL GP-DUO-CONE
  205-9114 [2] RING-TORIC
41 279-0344 J [2] BEARING AS-TAPERED ROLLER
42 093-1731 [1] RING-RETAINING
43 094-0584 [6] WASHER (40.3X72X1-MM THK)
44 095-0891 [7] PIN-SPRING
45 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46 191-2645 [1] COUPLING
47 2P-3628 [1] SEAL-O-RING
48 6V-8133 JM [10] BOLT (M24X3X80-MM)
49 6V-8237 J [10] WASHER (26X44X4-MM THK)
50 7M-8485 [2] SEAL-O-RING
51 7Y-0595 [2] SPACER (58X79.6X6-MM THK)
52 7Y-0644 [1] SPACER (163X190X8-MM THK)
53 8T-4167 [20] WASHER-HARD (26X44X4-MM THK)
54 8T-4240 [3] RING-RETAINING
55 9X-6032 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
56 1U-8846 B   SEALANT-GASKET

      AVAILABLE REPAIR KIT(S):
  296-6219 J [1] KIT-HOUSING (FINAL DRIVE)
      (ALSO INCLUDES HARD WASHER, BOLTS,COVER, & PLATE AS)
  B   USE AS REQUIRED
  C   CHANGE FROM PREVIOUS TYPE
  J   KIT MARKED J SERVICES PART(S) MARKED J
  M   METRIC PART



PC120-5 Old Type Excavator Final Drive Housing Hub 0



PC120-5 Old Type Excavator Final Drive Housing Hub 1

PC120-5 Old Type Excavator Final Drive Housing Hub 2PC120-5 Old Type Excavator Final Drive Housing Hub 3PC120-5 Old Type Excavator Final Drive Housing Hub 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
