205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part

205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part

  • 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part
  • 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part
  • 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part
  • 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part
205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Hub Part Number: 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220
Used For: Pc200-3 PC220 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC220 Final Drive Sprocket

,

20Y-27-13120 Final Drive Sprocket

,

205-27-71470 Final Drive Sprocket

205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part Replacement Gearbox Casing Part



Part Name Hub
Part No. 205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220
Used For Pc200-3 PC220
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
1 01010-51670 [36] BOLT Komatsu 0.142 kg.
  ["SN: 20001-UP"] analogs:["0101061670", "0101031670", "0101081670"]
2 01643-31645 [36] WASHER Komatsu 0.072 kg.
  ["SN: 20001-UP"] analogs:["802170005", "0164301645"]
  205-27-00087 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 32236-UP"] analogs:["2052700086", "2052700088", "2052700089"] |$2.
  205-27-00086 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 30350-32235"] analogs:["2052700087", "2052700088", "2052700089"] |$3.
  205-27-00085 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 29421-30349"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$4.
  205-27-00084 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 27913-29420"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$5.
  205-27-00083 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 25868-27912"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$6.
  205-27-00082 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 23258-25867"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$7.
  205-27-00081 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 21522-23257"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$8.
  205-27-00080 [2] FINAL DRIVE ASS'Y Komatsu 633 kg.
  ["SN: 20001-21521"] analogs:["2052700087", "2052700086", "2052700088", "2052700089"] |$9.
3. 205-27-71481 [1] SHAFT Komatsu 41 kg.
  ["SN: 30350-UP"]
3. 205-27-71480 [1] SHAFT Komatsu China
  ["SN: 20001-30349"]
    [-1] (205-27-71481,205-27-71471,
  |$$13.
  150-27-00027 [1] FLOATING SEAL ASS'Y Komatsu China 2.4 kg.
  ["SN: 20001-UP"] analogs:["1502724130", "1502700026", "1502700025", "1502700028"] |$14.
4 150-27-00262 [1] SEAL RING ASS'Y Komatsu 2.2 kg.
  ["SN: 20001-UP"] analogs:["1502700260"]
5 150-27-00270 [1] O-RING ASS'Y Komatsu 0.29 kg.
  ["SN: 20001-UP"] analogs:["1448730310"]
6. 205-27-71430 [2] BEARING Komatsu China 5.2 kg.
  ["SN: 20001-UP"] analogs:["20Y2711570"]

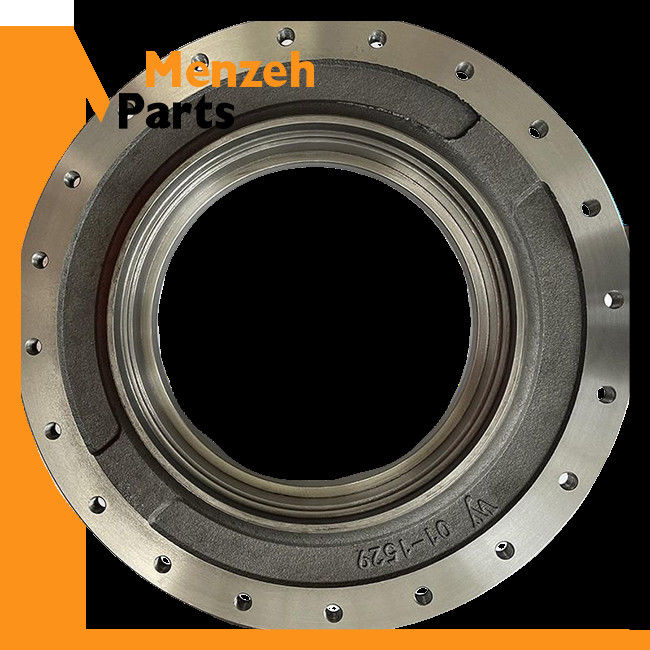

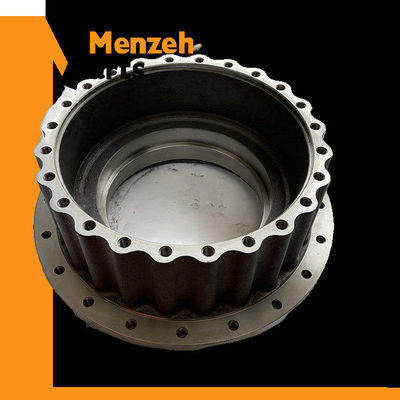

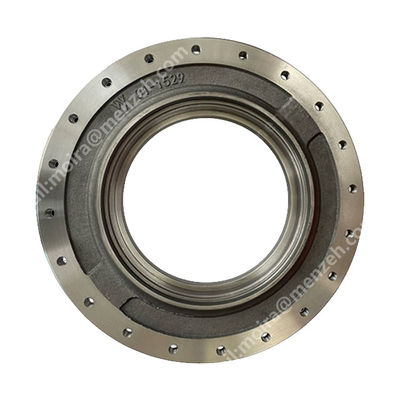

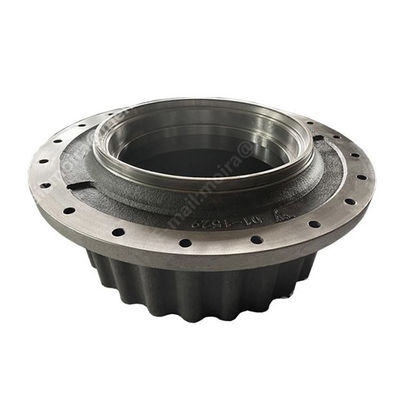

7. 205-27-71471 [1] HUB Komatsu 92.05 kg.
  ["SN: 30350-UP"]
7. 205-27-71470 [1] HUB Komatsu China
  ["SN: 20001-30349"]
8. 07044-12412 [1] PLUG Komatsu 0.09 kg.
  ["SN: 20001-UP"] analogs:["0704402412", "R0704412412"]
9. 07002-02434 [1] O-RING Komatsu China 0.01 kg.
  ["SN: 20001-UP"] analogs:["0700212434", "0700213434"]
10. 205-27-71281 [1] SPROCKET Komatsu OEM 38.6 kg.
  ["SN: 20001-UP"]
11. 205-27-71670 [20] BOLT Komatsu 0.1 kg.
  ["SN: 25868-UP"]
11. 01010-51640 [20] BOLT Komatsu 0.264 kg.
  ["SN: 20001-25867"] analogs:["0101061640", "801015186", "0101031640", "0101081640"]
12. 20Y-27-11310 [1] SPACER, 4.85MM Komatsu China
  ["SN: 30350-UP"]
12. 205-27-00060 [1] SHIM ASS'Y Komatsu 0.01 kg.
  ["SN: 20001-30349"] analogs:["2052771660", "2052771650"]
13. 205-27-71531 [1] GEAR Komatsu 14.625 kg.
  ["SN: 32236-UP"] analogs:["2052771530"]
13. 205-27-71530 [1] GEAR Komatsu 14.625 kg.
  ["SN: 20001-32235"] analogs:["2052771531"]
14. 205-27-71610 [6] PLATE Komatsu China
  ["SN: 20001-UP"]
15. 01010-50820 [12] BOLT Komatsu 0.013 kg.
  ["SN: 20001-UP"] analogs:["0101080820", "801014067", "801015086"]
16. 01643-50823 [12] WASHER Komatsu 0.01 kg.
  ["SN: 20001-UP"] analogs:["0164370823"]
17. 205-27-71630 [1] GEAR Komatsu 10.8 kg.
  ["SN: 20001-UP"]
18. 04020-01842 [2] PIN,DOWEL Komatsu 0.09 kg.
  ["SN: 20001-UP"]
19. 205-27-71680 [18] BOLT Komatsu China
  ["SN: 29421-UP"]
20. 205-27-71550 [1] GEAR Komatsu China 1.2 kg.
  ["SN: 20001-UP"]
21. 205-27-71510 [1] CARRIER Komatsu 30 kg.
  ["SN: 20001-UP"]
22. 205-27-00070 [1] PLANETARY GEAR A. Komatsu China 19.5 kg.
  ["SN: 20001-UP"] analogs:["2052771540"]
23. 205-27-71560 [3] BEARING Komatsu 2.373 kg.
  ["SN: 20001-UP"]
24. 205-27-71582 [3] PIN Komatsu China 1.54 kg.
  ["SN: 21522-UP"]
24. 205-27-71580 [3] PIN Komatsu China
  ["SN: 20001-21521"]
25. 205-27-71592 [3] COLLAR Komatsu 0.22 kg.
  ["SN: 21522-UP"]
25. 205-27-71591 [3] COLLAR Komatsu China
  ["SN: 20001-21521"] analogs:["2052771590"]
26. 04020-00616 [3] PIN,DOWEL Komatsu 0.004 kg.
  ["SN: 21522-UP"]
26. 01658-03618 [3] WASHER Komatsu 0.017 kg.
  ["SN: 20001-21521"] analogs:["0165823618"]
27. 01010-51465 [3] BOLT Komatsu 0.103 kg.
  ["SN: 21522-UP"] analogs:["0101031465", "0101081465", "0101061465"]
27. 01530-03610 [3] NUT,LOCK Komatsu 0.083 kg.
  ["SN: 20001-21521"]
28. 205-27-71570 [2] SPACER Komatsu OEM 0.044 kg.
  ["SN: 20001-UP"] analogs:["20Y2711250"]
29. 205-27-71520 [1] GEAR Komatsu China 15 kg.
  ["SN: 20001-UP"]
30. 205-27-71360 [1] BUTTON Komatsu 0.125 kg.
  ["SN: 20001-UP"]
31. 205-27-71492 [1] COVER Komatsu 36.2 kg.
  ["SN: 27913-UP"]
31. 205-27-71491 [1] COVER Komatsu China
  ["SN: 20001-27912"]
31A. 07043-70312 [1] PLUG Komatsu 0.016 kg.
  ["SN: 20001-23257"]
32. 07040-12414 [1] PLUG Komatsu 0.092 kg.
  ["SN: 27913-UP"] analogs:["0704002412", "0704012412"]
32. 07040-13618 [1] PLUG Komatsu 0.245 kg.
  ["SN: 20001-27912"] analogs:["0704113612"]
33. 07002-03634 [1] O-RING Komatsu China 0.013 kg.
  ["SN: 20001-27912"] analogs:["0700213634"]
34. 01010-51685 [24] BOLT Komatsu 0.165 kg.
  ["SN: 20001-UP"] analogs:["0101031685", "0101081685", "0101061685"]
36 205-27-71131 [2] COUPLING Komatsu 0.665 kg.
  ["SN: 20001-UP"]
37 07000-05190 [2] O-RING Komatsu 0.022 kg.
  ["SN: 20001-UP"] analogs:["0700015190"]
12 20Y-27-11320 [2] SPACER, 4.90MM Komatsu China
  ["SN: 30350-UP"]
12 20Y-27-11330 [2] SPACER, 4.95MM Komatsu China
  ["SN: 30350-UP"]
12 20Y-27-11340 [2] SPACER, 5.00MM Komatsu 0.42 kg.
  ["SN: 30350-UP"]
12 20Y-27-11350 [2] SPACER, 5.05MM Komatsu China
  ["SN: 30350-UP"]
12 20Y-27-11360 [2] SPACER, 5.10MM Komatsu 0.42 kg.
  ["SN: 30350-UP"]



205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 0



205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 1

205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 2205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 3205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 4205-27-71470 205-27-71471 20Y-27-13120 20Y-27-31220 Pc200-3 PC220 Final Drive Sprocket Hub Drum Spare Part 5











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
