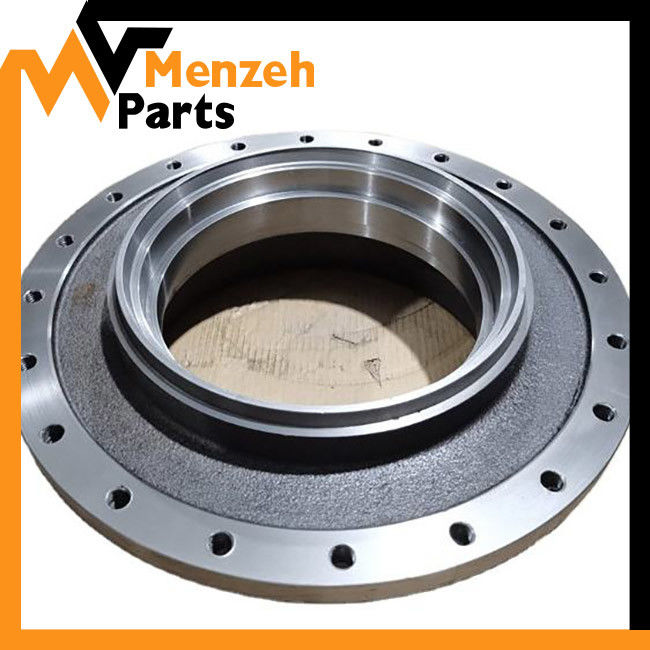

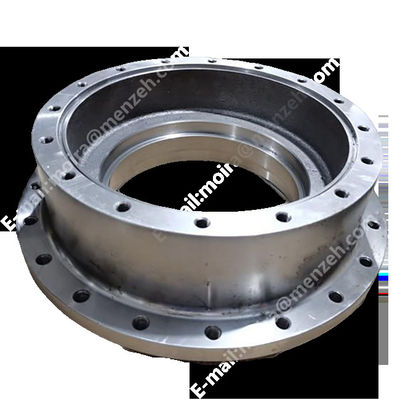

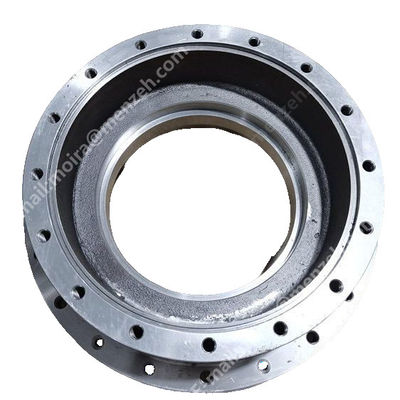

20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part

20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part

  • 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part
  • 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part
  • 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part
20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Hub Part Number: 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120
Used For: Pc200-5 PC210 PC220 PC240 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC240 Final Drive Sprocket

,

Pc200-5 Final Drive Sprocket

,

20Y-27-13120 Final Drive Sprocket

20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part Replacement Gearbox Casing Part



Part Name Hub
Part No. 20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120
Used For Pc200-5 PC210 PC220 PC240
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
  20Y-27-00019 [2] FINAL DRIVE ASS'Y Komatsu China
  ["SN: 70526-UP"] analogs:["20Y2700011", "20Y2700015", "20Y2700014", "20Y2700013", "20Y2700018"] |$0.
  20Y-27-00018 [2] FINAL DRIVE ASS'Y Komatsu China
  ["SN: 67093-70525"] analogs:["20Y2700011", "20Y2700015", "20Y2700014", "20Y2700013", "20Y2700019"] |$1.
  20Y-27-00016 [2] FINAL DRIVE ASS'Y Komatsu China
  ["SN: 61726-67092"] analogs:["20Y2700011", "20Y2700015", "20Y2700014", "20Y2700013", "20Y2700019", "20Y2700018"] |$2.
  20Y-27-00015 [2] FINAL DRIVE ASS'Y Komatsu China
  ["SN: 58019-61725"] analogs:["20Y2700011", "20Y2700014", "20Y2700013", "20Y2700019", "20Y2700018"] |$3.
    [-1] THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3351AAND 6431 TO 6433.
  |$$5.
1. 20Y-27-13130 [1] SHAFT Komatsu China 2.7 kg.
  ["SN: 58019-UP"]
  150-27-00029 [1] FLOATING SEAL ASS'Y Komatsu China 2.99 kg.
  ["SN: 70526-UP"] analogs:["1502700330", "1502700410"] |$6.
  150-27-00028 [1] FLOATING SEAL ASS'Y Komatsu China 2.4 kg.
  ["SN: 58019-70525"] analogs:["1502724130", "1502700027", "1502700026", "1502700025"] |$7.
4. 20Y-27-11570 [2] BEARING Komatsu China 5.2 kg.
  ["SN: 58019-UP"] analogs:["2052771430"]
5A. 20Y-27-13290 [1] O-RING Komatsu 0.02 kg.
  ["SN: 58019-UP"]
5. 20Y-27-13120 [1] HUB Komatsu 101 kg.
  ["SN: 58019-UP"]
6. 07044-12412 [1] PLUG Komatsu 0.09 kg.
  ["SN: 58019-UP"] analogs:["0704402412", "R0704412412"]
7. 07002-02434 [1] O-RING Komatsu China 0.01 kg.
  ["SN: 58019-UP"] analogs:["0700212434", "0700213434"]
8. 20Y-27-11581 [1] SPROCKET Komatsu China 36.2 kg.
  ["SN: 58019-UP"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"]
9. 20Y-27-11560 [20] BOLT Komatsu 0.14 kg.
  ["SN: 58019-UP"] analogs:["20Y27K1120"]
10. 20Y-27-00031 [1] SPACER KIT Komatsu 4.143 kg.
  ["SN: 58019-UP"] analogs:["20Y2700030"]
11. 20Y-27-13270 [1] RETAINER Komatsu 17.9 kg.
  ["SN: 58019-UP"]
12. 20Y-27-11180 [20] BOLT Komatsu 0.15 kg.
  ["SN: 58019-UP"]
13. 01010-51645 [4] BOLT Komatsu China 0.104 kg.
  ["SN: 58019-UP"] analogs:["0101061645", "801015187", "0101031645", "0101081645", "37A0911184", "801014184"]
14. 01643-31645 [4] WASHER Komatsu 0.072 kg.
  ["SN: 58019-UP"] analogs:["802170005", "0164301645"]
15. 20Y-27-13190 [1] GEAR Komatsu 61 kg.
  ["SN: 58019-UP"]
16. 20Y-27-13230 [1] CARRIER Komatsu 22.75 kg.
  ["SN: 58019-UP"]
17. 20Y-27-13310 [1] WASHER,THRUST Komatsu China 0.08 kg.
  ["SN: 58019-UP"]
18. 20Y-27-13210 [1] GEAR Komatsu 3.023 kg.
  ["SN: 58019-UP"]
19. 20Y-27-13220 [3] GEAR Komatsu China 4.52 kg.
  ["SN: 58019-UP"]
20. 20Y-27-13260 [3] BEARING Komatsu China 1.65 kg.
  ["SN: 58019-UP"]
21. 20Y-27-13240 [3] PIN Komatsu 1 kg.
  ["SN: 58019-UP"]
22. 20Y-27-11240 [3] HOLDER Komatsu China
  ["SN: 58019-UP"]
23. 01011-51200 [3] BOLT Komatsu 0.104 kg.
  ["SN: 58019-UP"] analogs:["0101181200", "801015583"]
24. 20Y-27-13150 [1] CARRIER Komatsu 9.85 kg.
  ["SN: 58019-UP"]
25. 20Y-27-11250 [1] SPACER Komatsu OEM 0.044 kg.
  ["SN: 58019-UP"] analogs:["2052771570"]
26. 20Y-27-13140 [3] GEAR Komatsu 3.069 kg.
  ["SN: 58019-UP"]
27. 20Y-27-13180 [3] BEARING Komatsu China 0.24 kg.
  ["SN: 58019-UP"]
28. 20Y-27-13160 [3] PIN Komatsu 0.194 kg.
  ["SN: 58019-UP"]
29. 20Y-27-13170 [3] HOLDER Komatsu China 0.04 kg.
  ["SN: 58019-UP"]
30. 01010-51055 [3] BOLT Komatsu 0.078 kg.
  ["SN: 58019-UP"] analogs:["0101081055"]
31. 04260-01905 [1] BALL Komatsu OEM 0.029 kg.
  ["SN: 58019-UP"]
32. 20Y-27-13110 [1] COVER Komatsu 23.4 kg.
  ["SN: 58019-UP"]
35. 20Y-27-13281 [16] BOLT Komatsu 0.31 kg.
  ["SN: 61726-UP"]
35. 20Y-27-13280 [16] BOLT Komatsu 0.31 kg.
  ["SN: 58019-61725"] analogs:["20Y2713281"]
37. 07049-01215 [2] PLUG Komatsu 0.001 kg.
  ["SN: 58019-UP"]
38 01010-51670 [18] BOLT Komatsu 0.142 kg.
  ["SN: 58019-UP"] analogs:["0101061670", "0101031670", "0101081670"]



20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part 0

20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part 1

20Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part 220Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part 320Y-27-13120 205-27-71470 20Y-27-31220 20Y-27-21120 Pc200-5 PC210 PC220 PC240 Final Drive Sprocket Hub Drum Spare Part 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
