20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part

20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part

  • 20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part
  • 20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part
  • 20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part
20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description

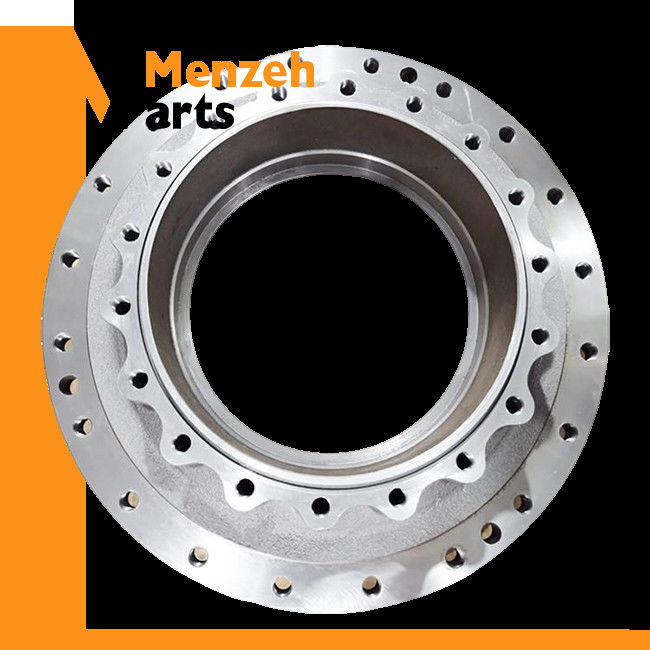

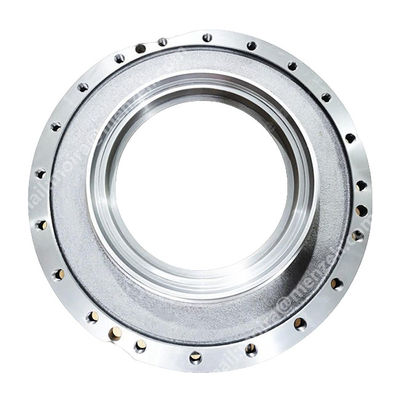

Part Name: Hub Part Number: 20Y-27-21120 20Y-27-31120 TZ684B1001-02
Used For: Pc200-6 PC210 PC220 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC220 Final Drive Sprocket

,

TZ684B1001-02 Final Drive Sprocket

,

20Y-27-31120 Final Drive Sprocket

20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part Replacement Travel Gearbox Casing Part



Part Name Hub
Part No. 20Y-27-21120 20Y-27-31120 TZ684B1001-02
Used For Pc200-6 PC210 PC220
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts
Pos. Part No Qty Parts name Comments
  20Y-27-00102 [1] FINAL DRIVE ASS'Y Komatsu 560 kg.
  ["SN: 83115-91086"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700101", "20Y2700200", "20Y2700202", "20Y27K1220", "20Y2700203"] |$1.
  20Y-27-00101 [1] FINAL DRIVE ASS'Y Komatsu 560 kg.
  ["SN: 80001-83114"] analogs:["20Y27K1200", "20Y2700201", "20Y2700204", "20Y2700102", "20Y2700200", "20Y2700202", "20Y27K1220", "20Y2700203"] |$2.
1. 708-8H-00171 [1] MOTOR ASS'Y,(SEE FIG.P1210-5101) Komatsu 134.001 kg.
  ["SN: 80001-91086"]
  150-27-00029 [1] FLOATING SEAL ASS'Y Komatsu China 2.99 kg.
  ["SN: 83115-@"] analogs:["1502700330", "1502700410"] |$6.
  150-27-00028 [1] FLOATING SEAL ASS'Y Komatsu China 2.4 kg.
  ["SN: 80001-83114"] analogs:["1502724130", "1502700027", "1502700026", "1502700025"] |$7.
2   [2] RING Komatsu China
  ["SN: 83115-@"]
4. 20Y-27-21120 [1] HUB Komatsu 97 kg.
  ["SN: 80001-91086"]
5. 20Y-27-11570 [2] BEARING Komatsu China 5.2 kg.
  ["SN: 80001-91086"] analogs:["2052771430"]
6. 20Y-27-21350 [1] O-RING Komatsu 0.02 kg.
  ["SN: 80001-91086"]
7. 20Y-27-21331 [1] NUT Komatsu 4.35 kg.
  ["SN: 80001-91086"] analogs:["20Y2721330"]
8. 20Y-27-21341 [1] LOCK Komatsu 0.1 kg.
  ["SN: 80001-91086"]
9. 01010-51020 [2] BOLT Komatsu 0.161 kg.
  ["SN: 80001-91086"] analogs:["0101081020", "801014093", "801015108"]
10. 20Y-27-21153 [1] CARRIER Komatsu 24.5 kg.
  ["SN: 90730-91086"] analogs:["20Y2721152"]
10. 20Y-27-21152 [1] CARRIER Komatsu 24.5 kg.
  ["SN: 80001-90729"] analogs:["20Y2721153"]
11. 20Y-27-21210 [3] GEAR Komatsu 4.3 kg.
  ["SN: 80001-91086"]
12. 20Y-27-21270 [3] BEARING Komatsu China 0.3 kg.
  ["SN: 80001-91086"] analogs:["20Y2722220"]
13. 20Y-27-21250 [6] WASHER Komatsu China 0.03 kg.
  ["SN: 80001-91086"]
14. 20Y-27-21230 [3] PIN Komatsu 1.54 kg.
  ["SN: 80001-91086"]
15. 20Y-27-21290 [3] PIN Komatsu OEM 0.03 kg.
  ["SN: 80001-91086"]
16. 20Y-27-13310 [1] WASHER Komatsu China 0.08 kg.
  ["SN: 80001-@"]
17. 20Y-27-21190 [1] GEAR Komatsu 2.7 kg.
  ["SN: 80001-91086"] analogs:["20Y2721191"]
18. 20Y-27-21180 [1] GEAR Komatsu 46.5 kg.
  ["SN: 80001-91086"]
19. 20Y-27-21140 [1] CARRIER Komatsu 8.2 kg.
  ["SN: 80001-91086"]
20. 20Y-27-21170 [3] GEAR Komatsu 2.7 kg.
  ["SN: 80001-91086"]
21. 20Y-27-21260 [3] BEARING Komatsu China 0.12 kg.
  ["SN: 80001-91086"] analogs:["20Y2722210"]
22. 20Y-27-21240 [6] WASHER Komatsu China 0.02 kg.
  ["SN: 80001-@"]
23. 20Y-27-21220 [3] PIN Komatsu China 0.411 kg.
  ["SN: 80001-@"]
24. 20Y-27-21280 [3] PIN Komatsu China 0.01 kg.
  ["SN: 80001-@"]
25. 20Y-27-21161 [1] SHAFT Komatsu 2.26 kg.
  ["SN: 80001-91086"]
26. 20Y-27-21310 [1] WASHER Komatsu China 0.17 kg.
  ["SN: 80001-@"]
27. 04260-01905 [1] BALL Komatsu OEM 0.029 kg.
  ["SN: 80001-91086"]
28. 20Y-27-21110 [1] COVER Komatsu 23 kg.
  ["SN: 80001-91086"]
29. 20Y-27-21360 [18] BOLT Komatsu 0.28 kg.
  ["SN: 80001-91086"]
30. 01643-31645 [18] WASHER Komatsu 0.072 kg.
  ["SN: 80001-@"] analogs:["802170005", "0164301645"]
31. 07049-01215 [2] PLUG Komatsu 0.001 kg.
  ["SN: 80001-91086"]
32. 07044-12412 [2] PLUG Komatsu 0.09 kg.
  ["SN: 80001-@"] analogs:["0704402412", "R0704412412"]
33. 07002-02434 [2] O-RING Komatsu China 0.01 kg.
  ["SN: 80001-@"] analogs:["0700212434", "0700213434"]
34. 20Y-27-11581 [1] SPROCKET Komatsu China 36.2 kg.
  ["SN: 80001-@"] analogs:["20Y2711582", "20Y27K1110", "20Y2777110"]
35. 20Y-27-11561 [20] BOLT Komatsu China 0.14 kg.
  ["SN: 80001-@"]



20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part 0

20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part 1



20Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part 220Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part 320Y-27-21120 20Y-27-31120 TZ684B1001-02 Pc200-6 PC210 PC220 Final Drive Sprocket Install Hub Drum Spare Part 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
