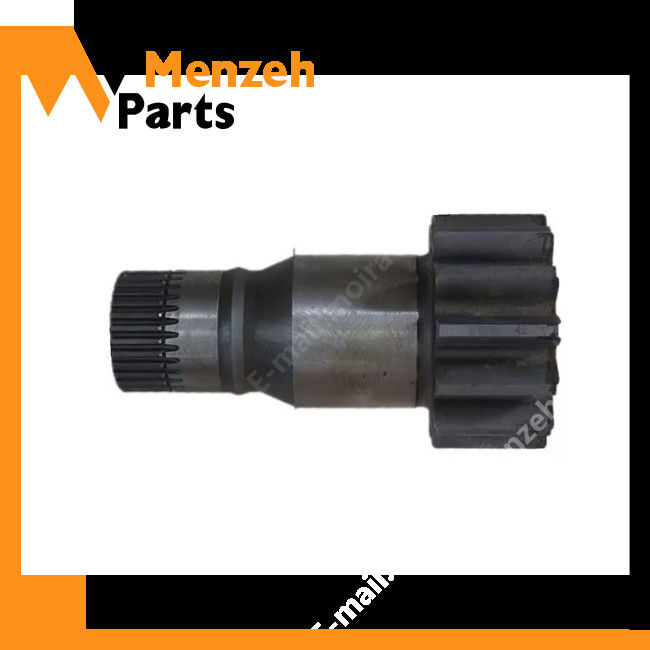

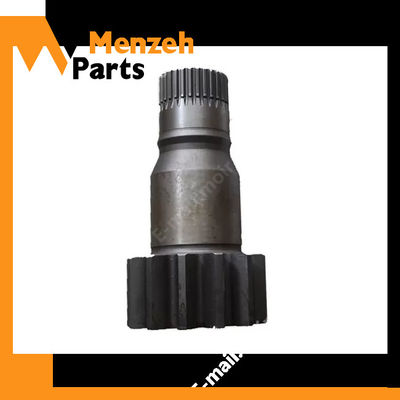

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802

  • EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
  • EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
  • EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 1032597 1032598 2050998 ZAX330-3 ZX350LC
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Pinion Shaft Part Number: 2028036 2036830 1255802
Used For: EX120-2 EX120-5 EX120-3 EX100-3 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

EX100-3 Swing Pinion Shaft

,

2028036 Swing Pinion Shaft

,

Swing Pinion Shaft 1255802

2028036 2036830 1255802 EX120-2 EX120-5 EX120-3 EX100-3 Planetary Gear Parts Swing Pinion Shaft Vertical Shaft Gear Part



Part Name Pinion Shaft
Part No. 2028036 2036830 1255802
Used For EX120-2 EX120-5 EX120-3 EX100-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
0 2028036 [1] SHAFT;PROP.
1 4244693 [1] SLEEVE
4 A811100 [1] O-RING
5 4248609 [1] BRG.;SPH.ROL.
9 4244691 [1] SEAL;OIL
14 1017261 [1] HOUSING
15 3058620 [1] COVER
16 4247567 [1] O-RING
17 J011035 [8] BOLT;SEMS
18 4293424 [1] BRG.;SPH.ROL.
19 991350 [1] RING;RETAINING
22 2031003 [1] CARRIER
23 4258089 [1] PLATE;THRUST
26 9732811 [3] GEAR;PLANETARY
28 4244696 [3] PIN
29 4063351 [3] PIN;SPRING
30 4266255 [6] PLATE;THRUST
31 4247567 [1] O-RING
33 2028037 [1] GEAR;RING
35 M341450 [12] BOLT;SOCKET
38 3046918 [1] GEAR;SUN
39 2031106 [1] CARRIER
41 4244904 [1] PLATE;THRUST
42 3046916 [3] GEAR;PLANETARY
44 4249345 [3] BRG.;NEEDLE
45 4244689 [3] PIN
46 4116307 [3] PIN;SPRING
47 4269480 [6] PLATE;THRUST
48 3046917 [1] GEAR;SUN
50 4244541 [1] O-RING
54 8050210 [1] PIPE
57 94-2012 [1] PLUG
60 8053413 [1] COVER (for transportation)
61 J011050 [8] BOLT;SEMS (for transportation)
62 94-2011 [1] PLUG (for transportation)
100 4334356 [1] MOTOR;OIL
101 M341028 [8] BOLT;SOCKET
102 927488 [1] RING;RETAINING
105 4264452 [1] PIPE
106 3053451 [1] GAUGE;LEVEL I 3074223
106 3074223 [1] GAUGE;LEVEL
108 4255227 [1] PIPE
109 4298608 [1] CAP
111 3053093 [1] NAME-PLATE
112 M492564 [2] SCREW;DRIVE
127 J932060 [10] BOLT
128 4018545 [10] WASHER
200 9111265 [1] SWING DEVICE(WITHOUT MOTOR)



EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802 0



EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802 1

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802 2EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802 3EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802 4
