EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843

EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843

  • EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843
  • EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843
  • EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843
  • EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843
EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 2036830 3055594 2028036 4370212 EX100-5 EX120-5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden Case
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description

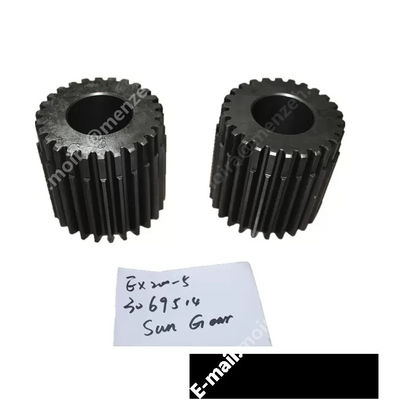

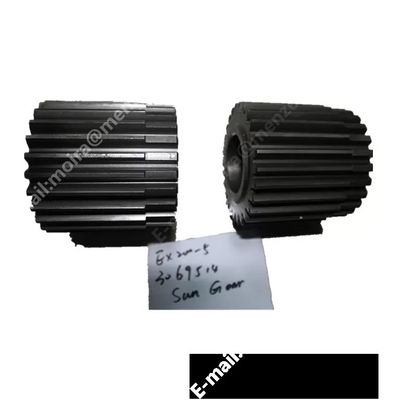

Part Name: Sun Gear Part Number: 3069514 9742777 3063842 3063843
Used For: EX200-5 EX200-3 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/TNT/UPS/SEA/AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

EX200-3 Planetary Sun Gearbox

,

3069514 Planetary Sun Gearbox

,

3063843 Planetary Sun Gearbox

3069514 9742777 3063842 3063843 EX200-5 EX200-3 Planetary Gear Parts Gear Box Sun Gear



Part Name Sun Gear
Part No. 3069514 9742777 3063842 3063843
Used For EX200-5 EX200-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
0 2036775 [1] SHAFT;PROP.
1 3045362 [1] SLEEVE
2 A811120 [1] O-RING
4 4281798 [1] BRG.;SPH.ROL.
6 4246275 [1] SEAL;OIL
8 3060672 [1] COVER
10 1020333 [1] HOUSING
11 944690 [1] BRG.;ROL.
12 991352 [1] RING;RETAINING
13 J011240 [8] BOLT;SEMS
16 1020329 [1] CARRIER
17 4176073 [2] PLATE;THRUST
19 9742777 [3] GEAR;PLANETARY
21 4266933 [6] PLATE;THRUST
23 4336925 [3] PIN
24 4027427 [3] PIN;SPRING
26 4337206 [1] O-RING
28 1019790 [1] GEAR;RING
29 M341645 [12] BOLT;SOCKET
30 3069514 [1] GEAR;SUN
32 1020328 [1] CARRIER
33 3069510 [3] GEAR;PLANETARY
34 4336945 [3] BRG.;NEEDLE
35 4336926 [6] PLATE;THRUST
36 4336923 [3] PIN
37 4051262 [3] PIN;SPRING
39 3069512 [1] GEAR;SUN
41 425176 [2] CORK
43 8060496 [1] PIPE
44 94-2013 [1] PLUG
61 8053414 [1] COVER (for transportation)
62 J011250 [8] BOLT;SEMS (for transportation)
63 94-2011 [1] PLUG (for transportation)
100 4330222 [1] MOTOR;OIL
101 962002 [1] RING;RETAINING
103 M341228 [8] BOLT;SOCKET
104 4264452 [1] PIPE
106 4332658 [1] PIPE
107 4343365 [1] CAP
109 3074223 [1] GAUGE;LEVEL
111 3053093 [1] NAME-PLATE
112 M492564 [2] SCREW;DRIVE
200 9148922 [1] SWING DEVICE (WITHOUT MOTOR)



EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 0



EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 1

EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 2EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 3EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 4EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 5









FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.





EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 6EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 7EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 8EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 9EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 10EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 11

EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 12EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 13EX200-5 EX200-3 Planetary Sun Gearbox 3069514 9742777 3063842 3063843 14
