Home ProductsExcavator Travel Gearbox

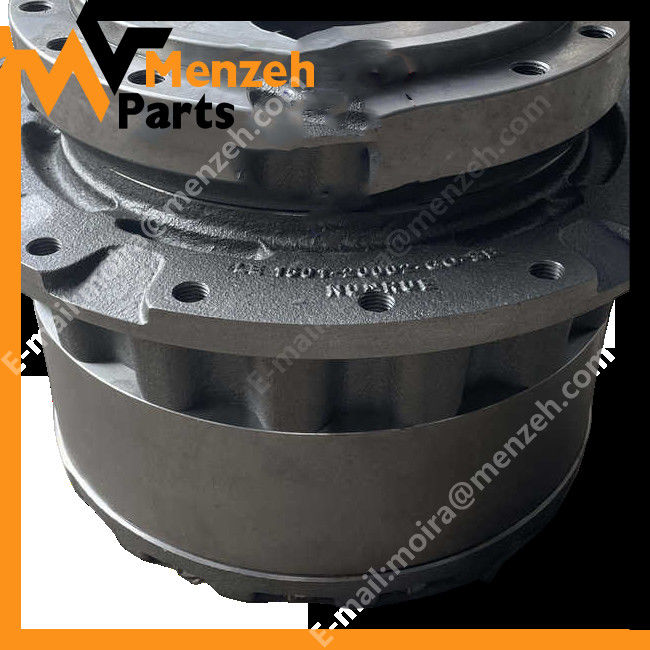

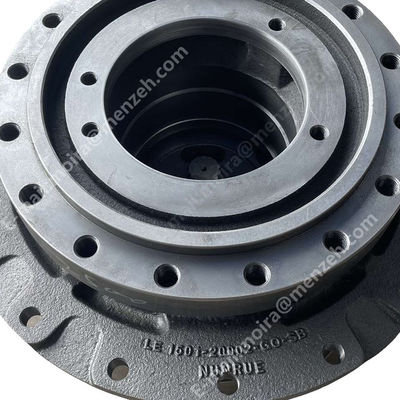

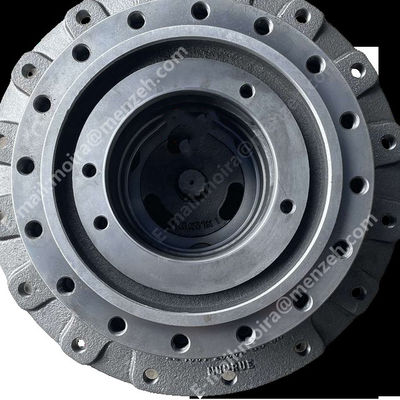

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox

  • 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox
  • 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox
  • 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox
7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox
Product Details:
Place of Origin: CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: CAT320B E320C E320D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 2 working Days
Payment Terms: Western Union, T/T,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Gearbox Part Number: 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611
Used For: CAT320B E320C E320D Condiction: All New OEM
Warrenty: 6 Months Delivery Time: 1-3 Days
High Light:

CAT320B Travel Gearbox

,

296-6299 Travel Gearbox

,

353-0611 Travel Gearbox

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox



Part Name Traval Gearbox
Part No. 7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611
Used For CAT320B E320C E320D
Warrenty 6 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name
1. 6I-6583 [1] GEAR-SUN (13-TEETH)
2. 6I-6585 [3] GEAR-PLANETARY (44-TEETH)
3. 7Y-0223 [3] SHAFT-PLANETARY
4. 7Y-0225 [3] SHAFT-PLANETARY
5. 7Y-1426 [1] COVER
6. 7Y-1430 [1] GEAR-SUN (17-TEETH)
7. 7Y-1431 [3] GEAR-PLANETARY (30-TEETH)
8. 7Y-1432 [1] CARRIER
9. 7Y-1433 [1] CARRIER
10. 7Y-1558 [1] SPACER (90X119.6X7.5-MM THK)
11. 094-0580 [1] PLATE (10-MM THK)
12. 094-0611 [6] WASHER (47.3X76X1-MM THK)
13. 094-1528 [6] WASHER (53X84X1-MM THK)
14. 095-0891 [6] PIN-SPRING
15. 096-1773 B [1] SHIM (0.15-MM THK)
  096-1774 B [1] SHIM (0.3-MM THK)
  096-1775 B [1] SHIM (0.4-MM THK)
  096-1776 B [1] SHIM (0.5-MM THK)
  096-1777 B [1] SHIM (0.6-MM THK)
  096-1778 B [1] SHIM (0.7-MM THK)
  096-1779 B [1] SHIM (0.8-MM THK)
  096-1780 B [1] SHIM (1-MM THK)
  096-1781 B [1] SHIM (1.6-MM THK)
24. 114-1539 [6] PIN-DOWEL
25. 148-4715 [1] GEAR-COUPLING (55-TEETH)
26. 174-4874 [1] SEAL GP-DUO-CONE
27. 191-3235 [1] HOUSING
28. 227-6034 M [14] BOLT-FLANGE HEAD (M16X2X60-MM)
29. 296-6220 [2] BALL BEARING
30. 296-6268 [3] BEARING AS-ROLLER
31. 296-6269 [6] BEARING-ROLLER
32. 296-6300 Y [1] GEAR GP-TRANSFER
33. 353-0612 [1] HOUSING-MOTOR
34. 095-1270 M [2] SETSCREW-SOCKET (M12X1.75X30-MM)
35. 3E-2338 [2] PLUG-PIPE
36. 6D-0692 [1] SEAL-O-RING
37. 7M-8485 [2] SEAL-O-RING
38. 453-4137 [16] BOLT (M20X2.5X180-MM)
39. 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
40. 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)





7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 0

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 17Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 27Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 3











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 47Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 57Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 67Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 77Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 87Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 9

7Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 107Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 117Y1571 353-0611 221-7637 239-5710 296-6299 353-0611 CAT320B E320C E320D Travel Gearbox 12
