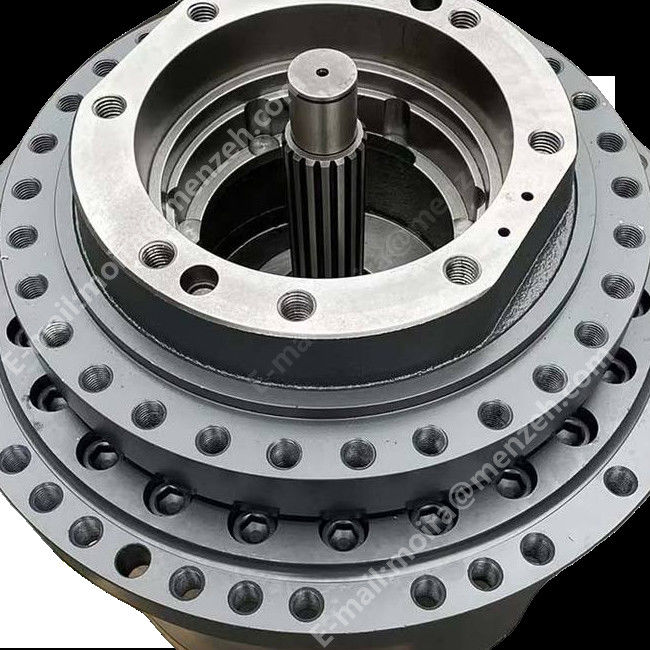

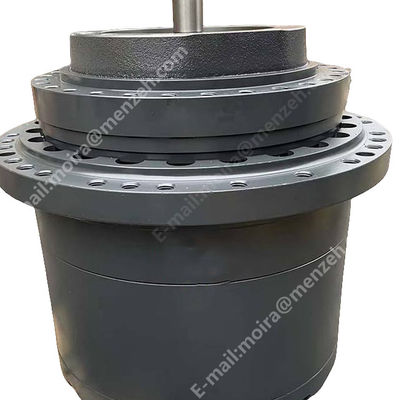

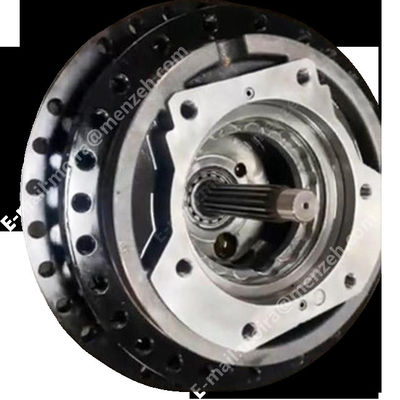

31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor

31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor

  • 31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor
  • 31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor
  • 31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor
31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor
Product Details:
Place of Origin: CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: R220 R220-9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 2-4 working Days
Payment Terms: Western Union, T/T,ALI PAY
Supply Ability: 50 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Reduction Part Number: 31Q6-40020
Used For: R220 R220-9 Condiction: New Aftermarket One/ Original One
Warrenty: 180 Days Material: Steel
Delivery: 2-3 Days
High Light:

31Q6-40020 Hydraulic Travel Reducer

,

R220 Hydraulic Travel Reducer

,

R220-9 Travel Gearbox



31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor













Part Name Traval Gearbox
Part No. 31Q6-40020
Used For R220 R220-9
Warrenty 6 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name
*. @ [1] TRAVEL MOTOR ASSY
*. @ [1] TRAVEL MOTOR ASSY
*-2. 31Q6-40020 [1] TRAVEL REDUCTION GEAR
*-2. 31Q6-40021 [1] TRAVEL REDUCTION GEAR
*-2. 31Q6-40022 [1] T/REDUCTION GEAR
*-2. 31Q6-40022 [1] T/REDUCTION GEAR
*-2. 31Q6-40021 [1] TRAVEL REDUCTION GEAR
*-2. 31Q6-40022 [1] T/REDUCTION GEAR
N1. XKAQ-00217 [1] HOUSING
2. XKAQ-00218 [2] BEARING-MAIN
2. XKAQ-00986 [2] BEARING-MAIN
2. XKAQ-00986 [2] BEARING-MAIN
2. XKAQ-00218 [2] BEARING-MAIN
2. XKAQ-00986 [2] BEARING-MAIN
3. XKAQ-00219 [1] SEAL-FLOATING
4. XKAQ-00220 [1] SHIM
5. XKAQ-00221 [1] RETAINER
6. XKAQ-00222 [12] BOLT-HEX
7. XKAQ-00223 [2] PIN-PARALLEL
8. XKAQ-00224 [1] GEAR-RING
9. XKAQ-00225 [1] COUPLING
9. 39Q6-42170 [1] COUPLING
10. XKAQ-00226 [1] CARRIER 2 ASSY
10-1. XKAQ-00227 [1] CARRIER 2
10-2. XKAQ-00228 [4] GEAR-PLANET 2
10-3. XKAQ-00229 [8] BEARING-NEEDLE 2
10-4. XKAQ-00230 [8] WASHER-THRUST
10-5. XKAQ-00231 [4] PIN 2
10-6. XKAQ-00232 [4] PIN-SPRING
10-7. XKAQ-00208 [2] RING-THRUST
11. XKAQ-00653 [1] CARRIER ASSY 1
11-1. XKAQ-00234 [1] CARRIER 1
11-2. XKAQ-00235 [1] GEAR-SUN 2
11-3. XKAQ-00236 [1] RING-RETAINING
11-4. XKAQ-00237 [3] GEAR-PLANET 1
11-5. XKAQ-00238 [3] BEARNG-NEEDLE 1
11-6. XKAQ-00657 [6] WASHER-THRUST
11-7. XKAQ-00240 [3] PIN 1
11-8. XKAQ-00241 [3] PIN-SPRING
11-9. XKAQ-00655 [1] PIN-SPRING
12. XKAQ-00402 [1] GEAR-SUN 1
12. XKAQ-00795 [1] GEAR-SUN 1
13. XKAQ-00243 [1] COVER







31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 0

31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 131Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 2











FAQ:
1.  If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2.  What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.  How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4.  When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5.  How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6.  What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 331Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 431Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 531Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 631Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 731Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 8

31Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 931Q6-40020 Hydraulic Travel Reducer R220 R220-9 Travel Gearbox Without Motor 10



Feature of Excavator Travel Gearbox

1. Completely, assembly, and ready to installed in your Excavator R210-9,R220-9

2. Without MOTOR, already been installed the MOTOR SHAFT & MOTOR HOUSING.

3. All components are produced by us.

4. All new, undamaged.

5. Painted or Unpainted, depend on requirement

6. 180 days warranty, call or email with any questions.

7. Plywood Packing, free of fumigation

8. Deliver to worldwide by Sea, Air, or Carrier.
