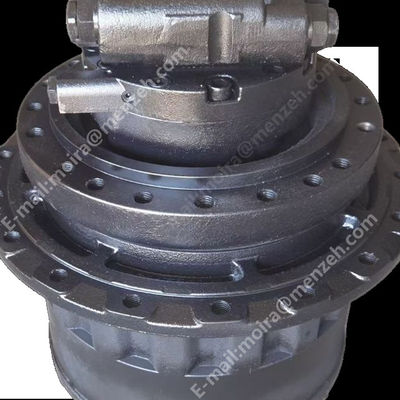

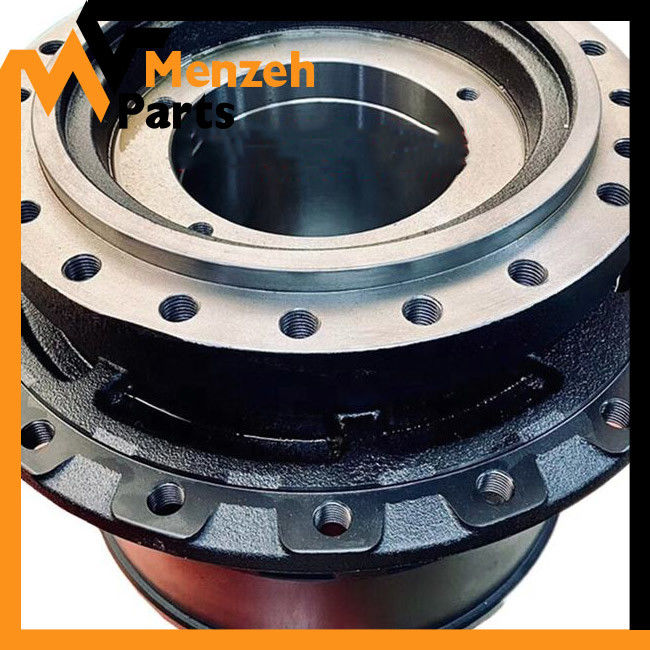

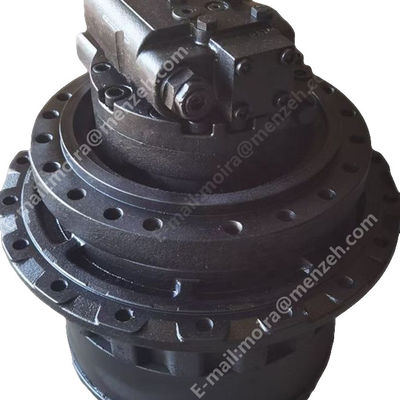

191-2682 227-6116 Hydraulic Travel Reduction E329 E325C E320C Travel Gearbox Without Motor

191-2682 227-6116 Hydraulic Travel Reduction E329 E325C E320C Travel Gearbox Without Motor

  • 191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor
  • 191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor
  • 191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor
191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor
Product Details:
Place of Origin: CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: E329 E325C E320C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 2-4 working Days
Payment Terms: Western Union, T/T,ALI PAY
Supply Ability: 50 pcs per Day
Contact Now
Detailed Product Description
Part Name: Travel Reduction Part Number: 191-2682 227-6116
Used For: E329 E325C E320C Condiction: New Aftermarket One
Warrenty: 180 Days Material: Steel
Delivery: 2-3 Days
High Light:

227-6116 Hydraulic Travel Reduction

,

191-2682 Hydraulic Travel Reduction

,

E320C Travel Gearbox



191-2682 227-6116 Hydraulic Travel Reduction E329 E325C E320C Travel Gearbox without Motor











Part Name Traval Gearbox
Part No. 191-2682 227-6116
Used For E329 E325C E320C
Warrenty 6 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name
1. 3E-2338 [2] PLUG-PIPE
2. 094-0578 B [1] PLATE (8-MM THK)
3. 094-0579 B [1] PLATE (9-MM THK)
4. 094-0580 B [1] PLATE (10-MM THK)
5. 094-1528 [12] WASHER (53X84X1-MM THK)
6. 168-8452 J [2] BALL BEARING
7. 169-5585 J [1] HOUSING
8. 169-5589 [1] GEAR-SUN (24-TEETH)
9. 169-5590 [1] GEAR-SUN (24-TEETH)
10. 169-5592 [3] GEAR-PLANETARY (23-TEETH)
11. 169-5593 [3] GEAR-PLANETARY (23-TEETH)
12. 169-5601 [3] SHAFT-PLANETARY
13. 169-5602 [3] SHAFT-PLANETARY
14. 171-9387 [1] GEAR-RING (64-TEETH)
15. 191-2569 [3] BEARING AS (CAGED ROLLER)
16. 191-2570 [6] BEARING AS (CAGED ROLLER)
17. 191-2571 [1] CARRIER-PLANETARY
18. 191-2676 [1] GEAR-RING (72-TEETH)
19. 191-2683 [1] GEAR-SUN (20-TEETH)
20. 191-2684 [3] GEAR-PLANETARY (21-TEETH)
21. 191-2685 [3] BEARING AS
22. 191-2686 [1] CARRIER AS
23. 191-2689 [3] WASHER (34X70X1-MM THK)
24. 191-2690 [3] WASHER (42.3X70X1-MM THK)
25. 199-4503 [1] COVER
26. 207-1571 J [1] SEAL GP-DUO-CONE
26A. 214-3570 [2] RING-TORIC
26B. Z [2] SEAL-RING
27. 227-6117 J [1] HOUSING-MOTOR
28. 227-6118 J [1] RETAINER
29. 227-6119 [1] CARRIER-PLANETARY
30. 227-6123 J [2] DOWEL
31. 227-6124 J [2] PLATE-WASHER
32. 093-1731 [2] RING-RETAINING
33. 095-0891 [6] PIN-SPRING
34. 096-0433 [3] RING-RETAINING
35. 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
36. 171-9298 [1] SEAL-O-RING
37. 179-8733 M [16] BOLT (M20X2.5X170-MM)
38. 7M-8485 [2] SEAL-O-RING
39. 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
40. 8T-0293 JM [4] BOLT (M12X1.75X20-MM)
41. 8T-4123 [16] WASHER (3.62X5.75X0.375-MM THK)



191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 0

191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 1191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 2











FAQ:
1.  If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2.  What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.  How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4.  When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5.  How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6.  What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.



191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 3191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 4191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 5191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 6191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 7191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 8

191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 9191-2682 227-6116 Hydraulic Travel Reduction  E329 E325C E320C Travel Gearbox Without Motor 10



Feature of Excavator Travel Gearbox

1. Completely, assembly, and ready to installed in your Excavator CAT320C

2. Without MOTOR, already been installed the MOTOR SHAFT & MOTOR HOUSING.

3. All components are produced by us.

4. All new, undamaged.

5. Painted or Unpainted, depend on requirement

6. 180 days warranty, call or email with any questions.

7. Plywood Packing, free of fumigation

8. Deliver to worldwide by Sea, Air, or Carrier.
