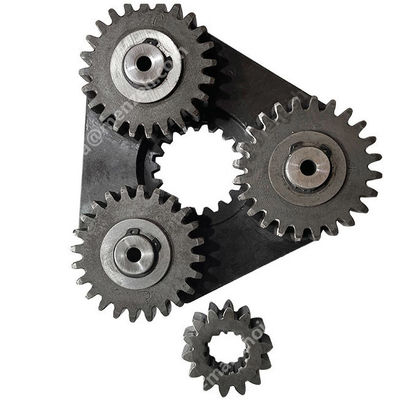

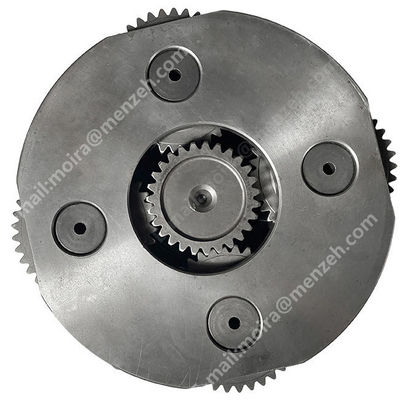

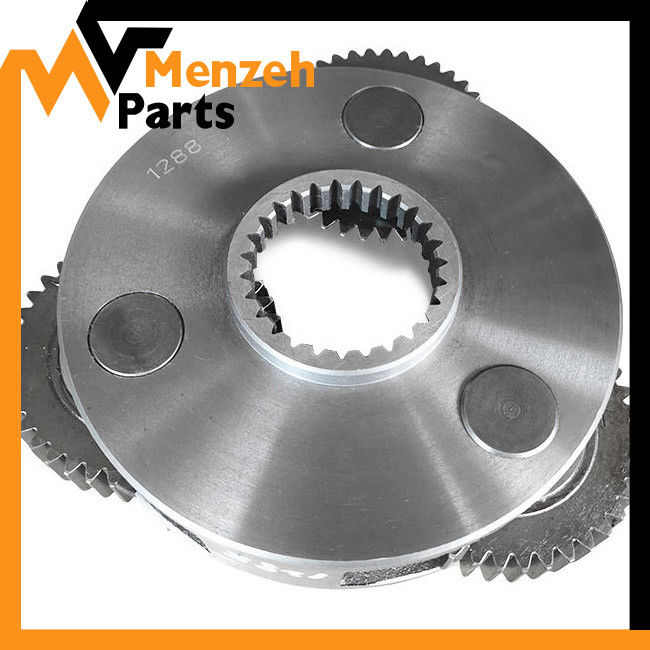

20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170 Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy

20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170 Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy

  • 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy
  • 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy
  • 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy
20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy
Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: MENZEH GEARS
Certification: CE
Model Number: 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170 Pc200-6 PC210 PC220
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: BOX, Wooden
Delivery Time: 1-3 working Days
Payment Terms: Western Union, T/T, L/C,ALI PAY
Supply Ability: 500 pcs per Day
Contact Now
Detailed Product Description
Part Name: Carrier Planetary 2nd Assy Part Number: 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170
Used For: Pc200-6 PC210 PC220 Condiction: All New OEM
Warrenty: 3 Months Shipping: DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port: Huangpu Guangzhou After Warranty: Video Technical Support Online Support Spare Parts
High Light:

PC220 Swing Gearbox

,

Pc200-6 Swing Gearbox

,

20Y-26-22170 Swing Gearbox

20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170 Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy

Part Name Carrier 2nd Assy
Part No. 20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170 20Y-27-21153
Used For Pc200-6 PC210 PC220
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts



Pos. Part No Qty Parts name Comments
  20Y-26-00151 [1] SWING MACHINERY A. Komatsu 190 kg.
  ["SN: C10001-UP"] analogs:["20Y2600150"] |1.
1. 20Y-26-22210 [1] Komatsu 76 kg.
  ["SN: C10001-UP"]
2. 20Y-26-22330 [1] BEARING Komatsu China 3.28 kg.
  ["SN: C10001-UP"] analogs:["20Y2622331", "20Y2622430"]
3. 20Y-26-22340 [1] BEARING Komatsu China 9.6 kg.
  ["SN: C10001-UP"] analogs:["20Y2622342", "20Y2622440"]
4. 20Y-26-22191 [1] COVER Komatsu 4.6 kg.
  ["SN: C10001-UP"] analogs:["20Y2622190"]
5. 01010-81045 [12] BOLT Komatsu 0.039 kg.
  ["SN: C10001-UP"] analogs:["0101051045", "01010D1045"]
6. 01643-31032 [12] WASHER Komatsu 0.054 kg.
  ["SN: C10001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
7. 20Y-26-22420 [1] SEAL Komatsu China 0.3 kg.
  ["SN: C10001-UP"]
8. 20Y-26-21141 [1] SHAFT¤ 15 TEETH Komatsu OEM 35 kg.
  ["SN: C10001-UP"] analogs:["20Y2621140", "20Y2621142"]
9. 20Y-26-22170 [1] CARRIER Komatsu 8.55 kg.
  ["SN: C10001-UP"]
10. 20Y-26-22141 [4] GEAR¤ 36 TEETH Komatsu China 1.8 kg.
  ["SN: C10001-UP"] analogs:["20Y2622140"]
11. 20G-26-11240 [4] BEARING Komatsu China 0.24 kg.
  ["SN: C10001-UP"] analogs:["20G2611241", "20G2611410"]
12. 20Y-27-21240 [8] WASHER Komatsu China 0.02 kg.
  ["SN: C10001-UP"]
13. 20Y-26-22250 [4] PIN Komatsu China 0.52 kg.
  ["SN: C10001-UP"]
14. 20Y-27-21280 [4] PIN Komatsu China 0.01 kg.
  ["SN: C10001-UP"]
15. 20Y-26-21240 [1] PLATE Komatsu 5.1 kg.
  ["SN: C10001-UP"]
16. 112-32-11211 [1] BOLT¤ SHOE Komatsu 0.09 kg.
  ["SN: C10001-UP"]
17. 20Y-26-22151 [1] GEAR¤ 101 TEETH Komatsu 18.8 kg.
  ["SN: C10001-UP"] analogs:["20Y2622150"]
18. 20Y-26-22131 [1] GEAR¤ 27 TEETH Komatsu 2.15 kg.
  ["SN: C10001-UP"] analogs:["20Y2622130"]
19. 04064-07525 [1] RING Komatsu 0.026 kg.
  ["SN: C10001-UP"]
20. 20Y-26-22220 [1] THRUST WASHER Komatsu 0.04 kg.
  ["SN: C10001-UP"]
21. 20Y-26-22160 [1] CARRIER Komatsu 5.1 kg.
  ["SN: C10001-UP"]
22. 20Y-26-22120 [3] GEAR¤ 39 TEETH Komatsu China 1.25 kg.
  ["SN: C10001-UP"]
23. 20Y-26-21280 [3] BEARING Komatsu 0.1 kg.
  ["SN: C10001-UP"] analogs:["20Y2621281", "20X2621240", "20Y2621510"]
25. 20Y-26-22240 [3] PIN Komatsu 0.367 kg.
  ["SN: C10001-UP"]
27. 20Y-26-22110 [1] GEAR¤ 22 TEETH Komatsu 0.4 kg.
  ["SN: C10001-UP"]
28. 20Y-26-22230 [1] THRUST WASHER Komatsu 0.1 kg.
  ["SN: C10001-UP"]
29. 20Y-26-22410 [1] COVER Komatsu China
  ["SN: C10001-UP"]
30. 01011-81450 [4] BOLT Komatsu China
  ["SN: C10001-UP"]
31. 01643-31445 [4] WASHER Komatsu 0.019 kg.
  ["SN: C10001-UP"] analogs:["0164301432"]
32. 07042-30617 [1] PLUG Komatsu China
  ["SN: C10001-UP"]
33. 07042-30108 [1] PLUG Komatsu 0.008 kg.
  ["SN: C10001-UP"] analogs:["0704220108"]
34. 07042-30415 [1] PLUG Komatsu 0.056 kg.
  ["SN: C10001-UP"]



20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy 0



20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy 1

20Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy 220Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy 320Y-26-22170 20Y-26-22160 20Y-27-21140 207-27-62170  Pc200-6 PC210 PC220 Swing Gearbox Carrier Planetary 2nd Assy 4











FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
